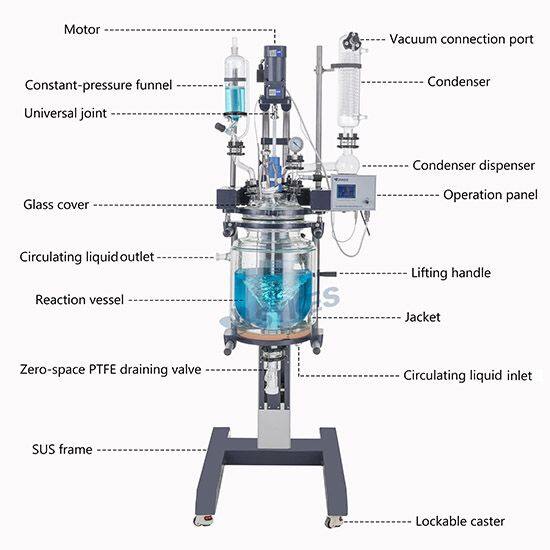

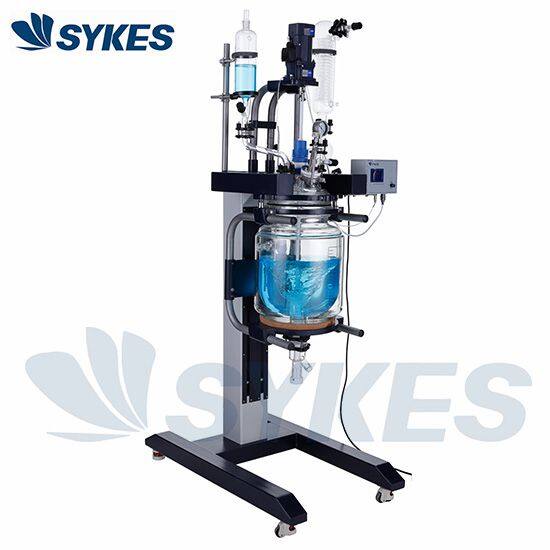

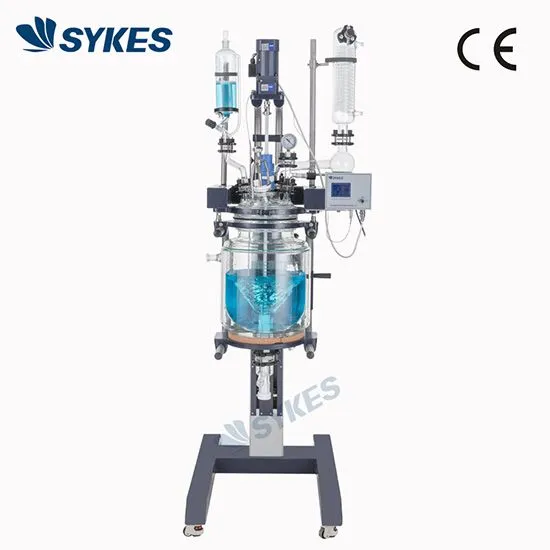

Pilot 30Liter Chemical Laboratory Lifting Double Layer Jacketed Glass Reactor China
Features
1. Reaction kettle can be lift up and down. It is convenient to feed materials and take the blocky crystals out of the kettle.
2. Reaction kettle can be rotated for 120 degree, it is convenient to use and clean.
Configuration
Technical Data
Product |
Lifting Two-layer Glass Reactor |
|||||
Model |
GRL-10 |
GRL-20 |
GRL-30 |
GRL-50 |
||
Effective reaction capacity(L) |
10 |
20 |
30 |
50 |
||
Jacket capacity(L) |
3 |
6 |
10 |
16 |
||
Jacket heat exchange area(m²) |
0.22 |
0.32 |
0.32 |
0.65 |
||
Condenser heat exchange area(m²) |
0.2 |
0.3 |
0.3 |
0.3 |
||
Glass parts material |
|
|||||
Kettle body tolerable temperature(℃) |
-80～200 |
|||||
Kettle body resistance to temperature difference (℃) |
90 |
|||||
Operating pressure(MPa) |
Vacuum or normal pressure |
|||||
Motor |
Power(W) |
90 |
90 |
90 |
120 |
|
Regulation method |
Electronic speed regulation |
|||||
Stirring speed(rpm) |
50～500 |
|||||
Six ports on the cover |
Stirring port |
|||||
Sensor port | ||||||
Condenser connecting port | ||||||
Liquid charging port | ||||||
Constant pressure funnel connecting port | ||||||
Solid charging port | ||||||
Inlet/outlet liquid circulation nozzle |
DN15 |
|||||
Overall Power Supply(V/Hz) |
220/50 |
|||||
The height of the draining valve from ground ( mm ) |
≤590mm |
≤585mm |
≤585mm |
≤540mm |
||
Temperature sensor material |
Stainless steel covered with PTFE outside, double anti-corrosion |
|||||
Stirring |
Rotary vane agitator, stainless steel axis covered with PTFE outside |
|||||
Dimension (mm) |
1100L×660W×1990H |
1100L×655W×2030H |
1100Lx665Wx2455 |
1100L×680W×2455H |
||
