DFUN DC Power System Nickel and Lead Acid Battery Online Monitor Voltage Current Sensor Battery BMS System
US$ 18 - 55
MOQ: 12 Pieces
Key Specifications
Get Latest Price
Brand Name:
DFUN
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai
Delivery Detail:
15 days
Related Products
-
DFUN 1.2v Ni-cd Battery Monitor System Tester UPS Battery Health System Equipment TemperatureUS$ 18 - 55MOQ: 12 Pieces -
DFUN Smart UPS Battery Tester for 2V/6V/12V BMS for Lead Acid BatteryUS$ 18 - 55MOQ: 12 Pieces
-
DFUN BMS Vrla Battery Monitor Solution for 2V/6V/12V Data Center UPS Lead Acid Battery Monitoring SystemUS$ 18 - 55MOQ: 12 Pieces
-
DFUN BMS System for Lead Acid Battery Remote MonitoringUS$ 18 - 55MOQ: 12 Pieces
-
DFUN Online Monitoring BMS for Lead Acid Battery for Data Center UPS Battery ManagementUS$ 18 - 55MOQ: 12 Pieces
Brand Name
DFUN
Place of Origin
China

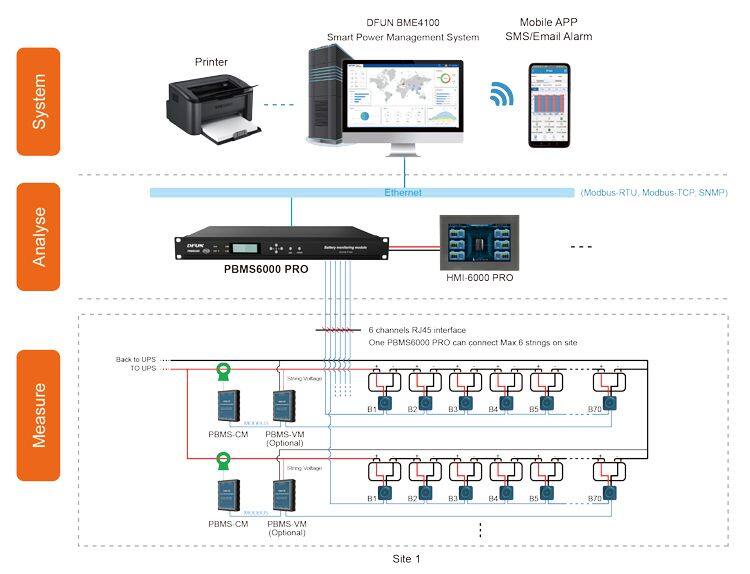

System Structure
What is included?
Technical Specification
| Battery Type |
Ni-Cd, Lead Acid, Multi-pole Battery |
Application | DC Power System (Substation, Train Locomotive) |
Power Supply |
AC 220V, Powered by Communication Bus, no consuming battery power |
Dimension | Standard 19" inch 1U Device (482.6mm × 204.5mm × 44mm) |

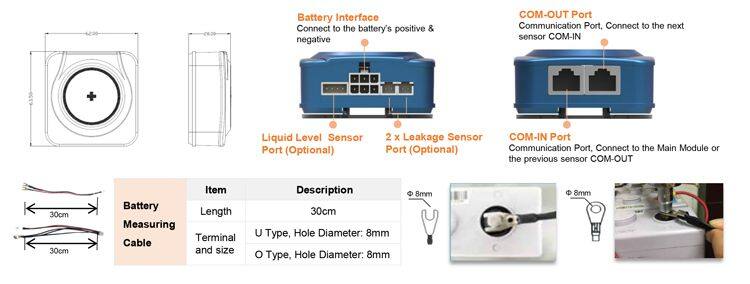

| Total Strings | 1~6 Strings | Cell Voltage | PBAT71-02 (DC 0.5 ~ 3V) PBAT71-12 (DC 5~18V) |
|
Optional Function |
Battery Leakage and Liquid Level Monitoring |

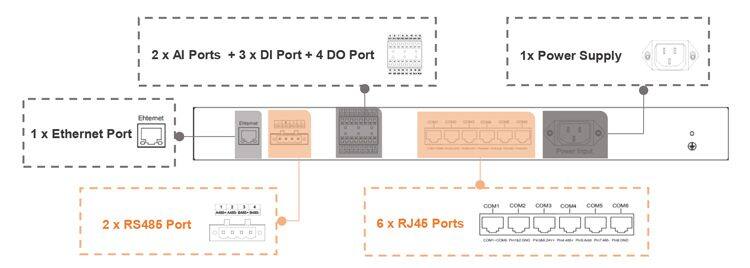

Communication | 4 RS485 Serial ports, 2 Ethernet ports (4CL), 2 RS485 Serial ports, 2 Ethernet ports (2ZL) |
|
Communication Protocol |
MODBUS-RTU, MODBUS-TCP, SNMP | Sleeping Mode | ≤10mA |
| Baudrate | 9600bps, 19200bps, 38400bps ( Optional ) | Weight |
PBMS6000: 2.55kg Battery Sensor: 120g |

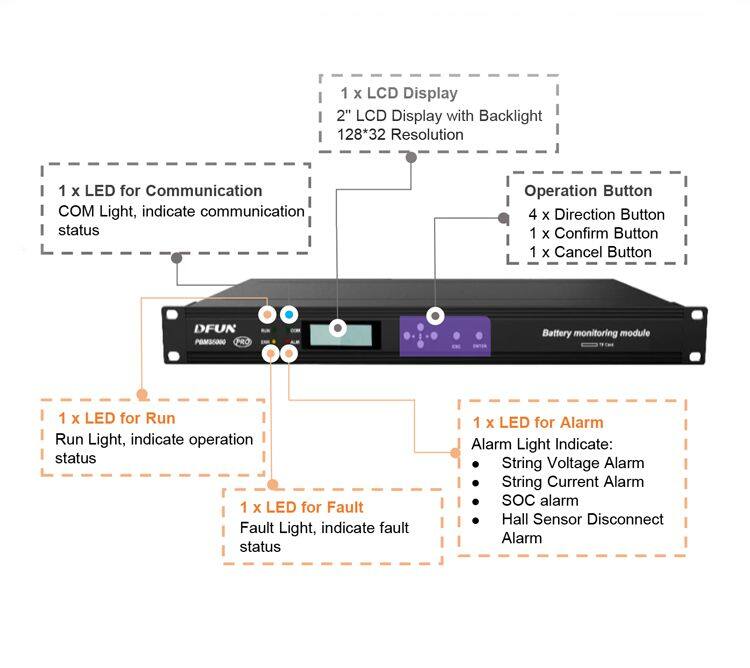

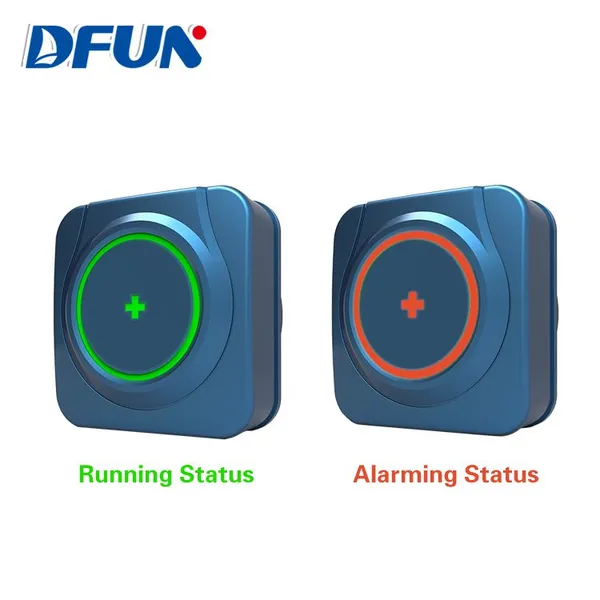

| Sensor LED Indicates | Green: Normal Status Red: Abnormal Status |
HMI |
-15℃ ~ + 55℃ |
| Operation Temperature | -15℃ ~ + 55℃ |
Operation Humidity | 5% ~ 95% Non-condensing |
