Vibrating Spiral Elevator for Food/Grain/Seeds Vertical Conveyor
- 100 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal Cash Other
- Square Vibrating Sifter for Sand/Mining Sieve Shaker/Screening Machine
- Linear Sifter Machine for Baobab Powder Sieve Shaker/Screening Machine
- Airflow Vibrating Sifter for Pollen/Powder Sieve Shaker
- Lab Vibrating Sieve for Powder/Particles Sifter/Screening Machine
- Circular Vibrating Separator for Sand/Building Materials Sieve Shaker/Screening Machine
- Circular Vibrating Sieve Shaker for Herbal Powder Separator/Sifter Machine
Product Details
Brand Name: | Sanyuantang | Place of Origin: | China | Model Number: | DZS250,300,400,500,600,700 |
Type: | Other | Certification: | ISO | After-sales Service Provided: | No overseas service provided |
Warranty: | One year ,24 hours technical support. | Weight: | According customer's require. | Dimension(L*W*H): | According customer's require. |
Production Capacity: | 500Kg-10Tons/hours | Voltage: | 220V/380V | Condition: | New |
Power(W): | 2*0.4KW-2*3.0KW |
Product Description

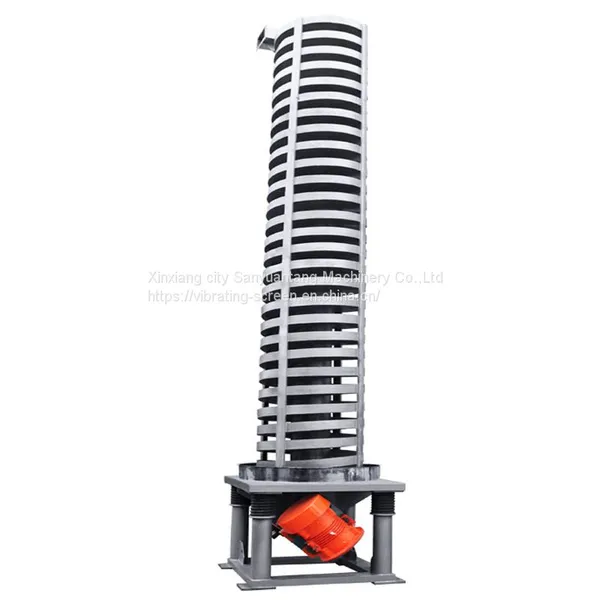

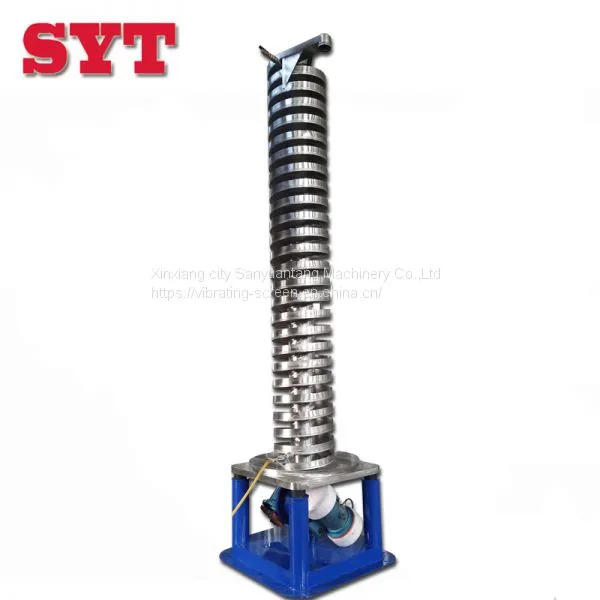

Vibrating Spiral Elevator for Food/Grain/Seeds Vertical Conveyor
Introduction - Vertical vibrating elevator
Vertical conveyor can be also called as vertical elevator, spiral conveyor, spiral elevator etc.
Vertical conveyor is applicable to convey and lift materials of powder, block and short fiber. The materials can not only be lifted, but also be dried and cooled during the process of lifting.
According to customer's special request, vertical conveyor can also be designed to classify the materials and convey flammable and explosive materials.
Structure- Vertical vibrating elevator

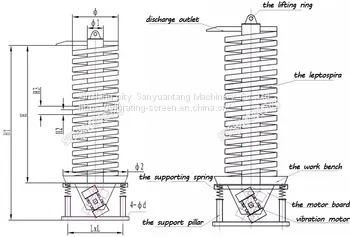

A vertical conveyor consists of a vertical screw slot, two vibration motors, shocking-absorb system and a bottom frame etc.
Working principal- Vertical vibrating elevator
Vertical conveyor uses two vibration motor as vibration source, transporting the material along the spiral groove upward by making use of synthetic amplitude of the two vibration motors. In the process of moving up, the material also can be dried or cooled at the same time.
Features
Reasonable and simple structure, easy maintenance, adjustable outlet.
Low power consumption, low noise.
Dust-proof, heat-proof, oil-proof and explosion-proof.
Two types available to choose: open type and sealed type.
Small spce occupation, totally sealed structure can effectively avoid dust and harmful gas pollution.
Material can be cooled or dried during the lifting process according to customer’s special request.
More technical parameter
Model | Lifting Capability(t/h) | Diameter of Spiral chute(mm) | Lifting width(mm) | Lifting height(m) | Speed(rpm) | Double amplitude (mm) | Power(kw) |
SZC-300 | -2.0 | 300 | 77 | ≤4.0 | 960 | 5-6 | 2*0.4 |
SZC-500 | -2.0 | 500 | 140 | ≤4.0 | 5-6 | 2*0.75 | |
SZC-550 | -3.0 | 550 | 152 | ≤5.5 | 5-6 | 2*1.5 | |
SZC-600 | -3.0 | 600 | 163 | ≤6.0 | 5-7 | 2*1.5 | |
SZC-800 | -4.0 | 800 | 237 | ≤6.5 | 5-8 | 2*2.2 | |
SZC-850 | -4.0 | 850 | 262 | ≤8.0 | 5-8 | 2*2.2 | |
SZC-900 | -4.0 | 900 | 287 | ≤8.0 | 5-8 | 2*3.0 |

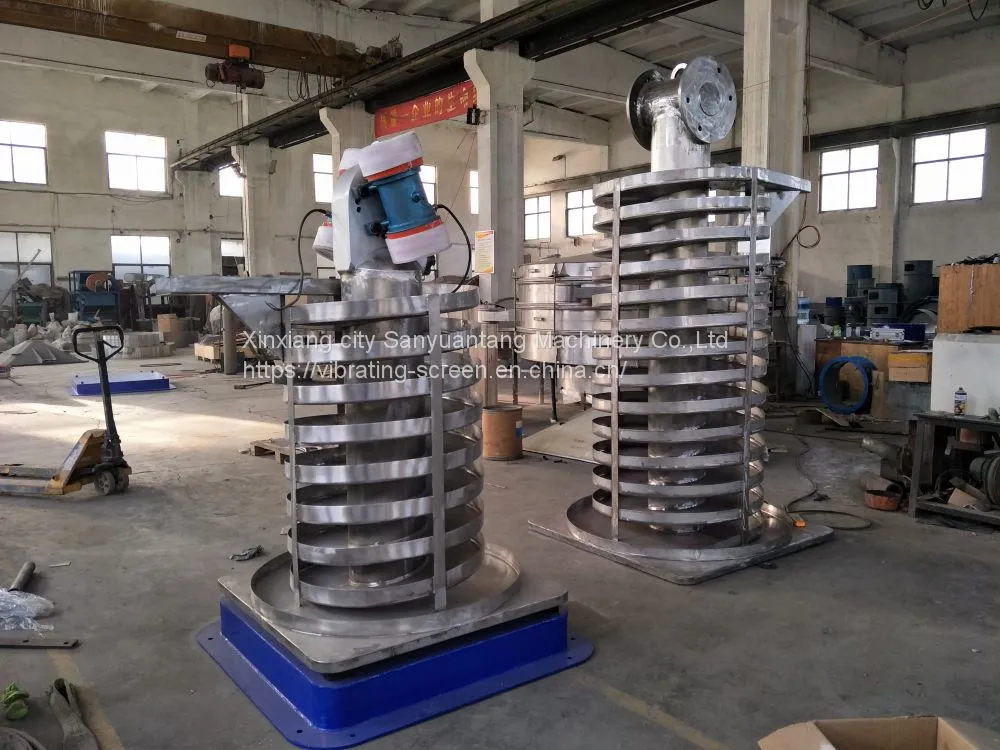

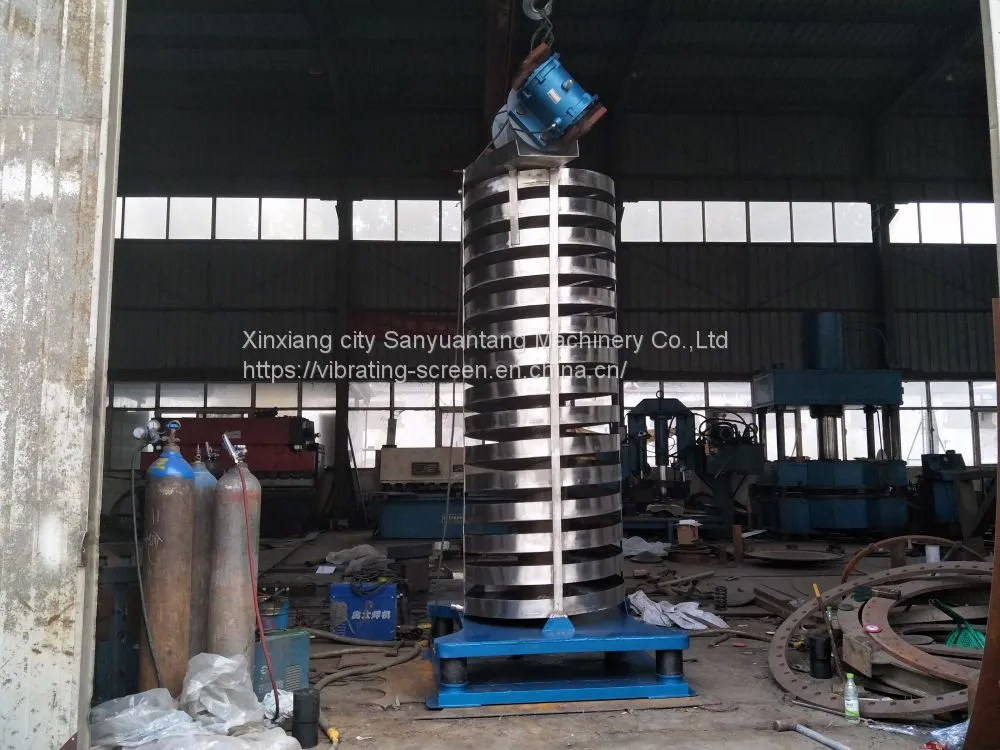

Product shows
Other Products
FAQ
Q:This is my first time to import,how can I trust your company and ensure to get the goods if I order from you.
A:We are alibaba legitimate certification company (VIP),and we support payment L/C.Escrow.T/T and so on to ensure your safty.
Q:There are too many models,i don't know which one to choose
A: Welcome to consult our online TradeManager,we will recommend according to your
demands.If during closing time or weekend,Please send mail to us,we will response within 24 hours.^_^
Thanks for view us with patience!You are always free to inquiry us and we will response asap.
Buying Guides
Tell me the following questions,Then I can send you accurate quotation soon.
Your email address and telephone will not be shared or published!
How could you choose suitable one? Please answer the following questions.
Raw material: ; kg/m³
The size of raw material:
Capacity:_____t/h
Do you need cooling funcation?
Working power supply: _____V ______HZ___Phase
