Introduction - Vertical vibrating elevator
Vertical conveyor can be also called as vertical elevator, spiral conveyor, spiral elevator etc.
Vertical conveyor is applicable to convey and lift materials of powder, block and short fiber. The materials can not only be lifted, but also be dried and cooled during the process of lifting.
According to customer's special request, vertical conveyor can also be designed to classify the materials and convey flammable and explosive materials.
Structure- Vertical vibrating elevator
A vertical conveyor consists of a vertical screw slot, two vibration motors, shocking-absorb system and a bottom frame etc.
Working principal- Vertical vibrating elevator
Vertical conveyor uses two vibration motor as vibration source, transporting the material along the spiral groove upward by making use of synthetic amplitude of the two vibration motors. In the process of moving up, the material also can be dried or cooled at the same time.
Features
Reasonable and simple structure, easy maintenance, adjustable outlet.
Low power consumption, low noise.
Dust-proof, heat-proof, oil-proof and explosion-proof.
Two types available to choose: open type and sealed type.
Small spce occupation, totally sealed structure can effectively avoid dust and harmful gas pollution.
Material can be cooled or dried during the lifting process according to customer’s special request.
More technical parameter
Model |
Lifting Capability(t/h) |
Diameter of Spiral chute(mm) |
Lifting width(mm) |
Lifting height(m) |
Speed(rpm) |
Double amplitude (mm) |
Power(kw) |
SZC-300 |
-2.0 |
300 |
77 |
≤4.0 |
960 |
5-6 |
2*0.4 |
SZC-500 |
-2.0 |
500 |
140 |
≤4.0 |
5-6 |
2*0.75 |
|
SZC-550 |
-3.0 |
550 |
152 |
≤5.5 |
5-6 |
2*1.5 |
|
SZC-600 |
-3.0 |
600 |
163 |
≤6.0 |
5-7 |
2*1.5 |
|
SZC-800 |
-4.0 |
800 |
237 |
≤6.5 |
5-8 |
2*2.2 |
|
SZC-850 |
-4.0 |
850 |
262 |
≤8.0 |
5-8 |
2*2.2 |
|
SZC-900 |
-4.0 |
900 |
287 |
≤8.0 |
5-8 |
2*3.0 |

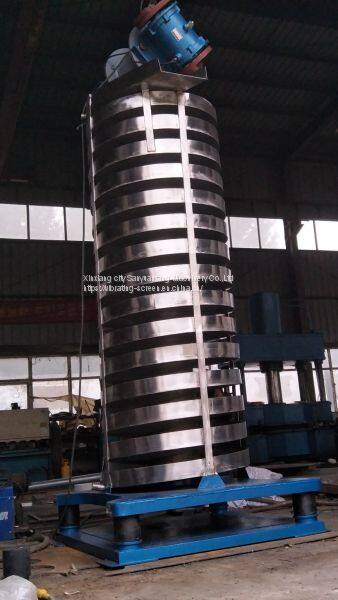

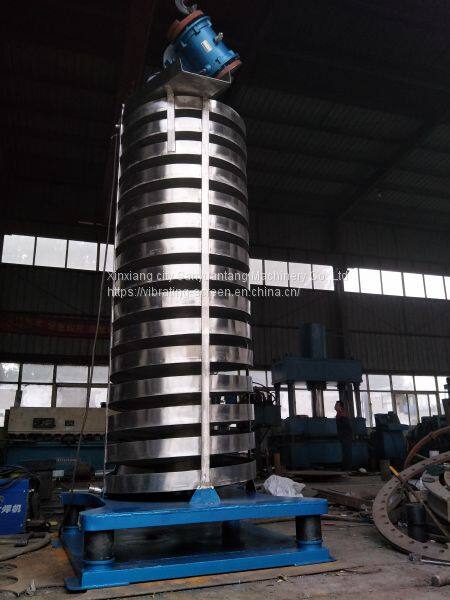

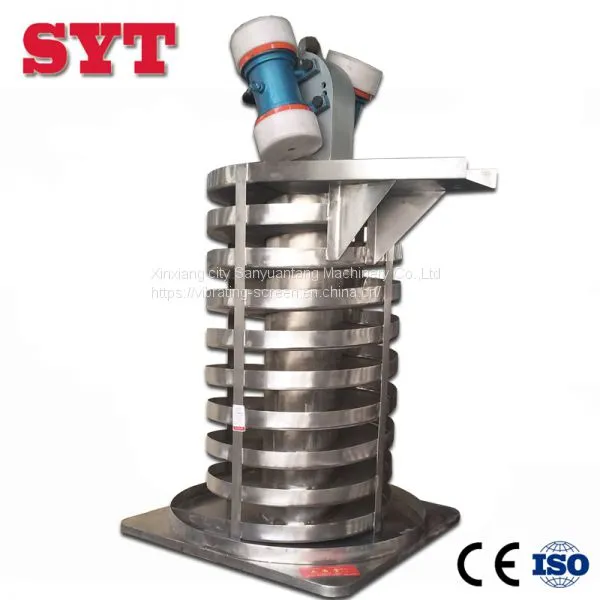

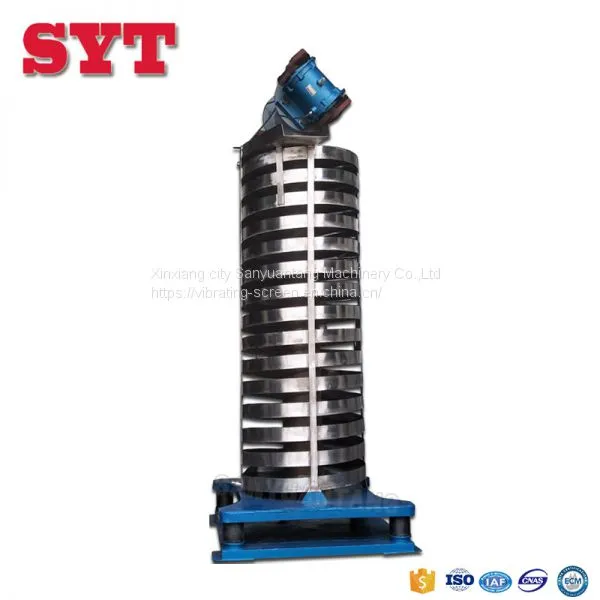

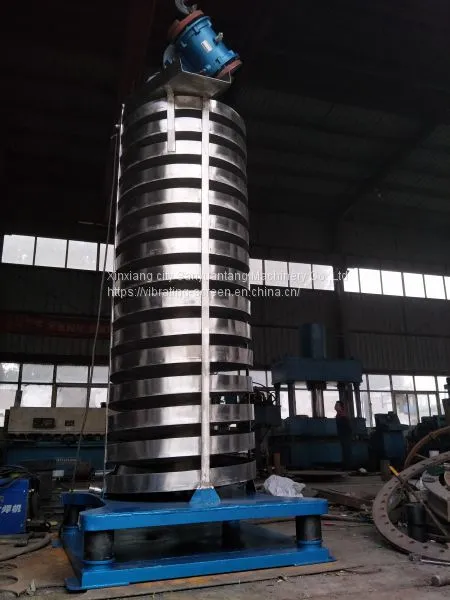

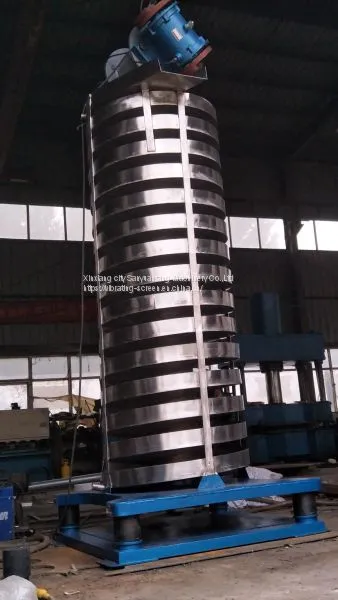

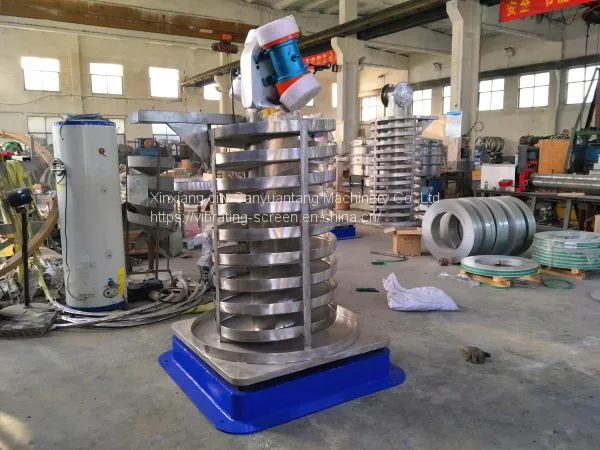

Product shows:
