Help Center2D Optical Fiber Collimator Array
Related Products

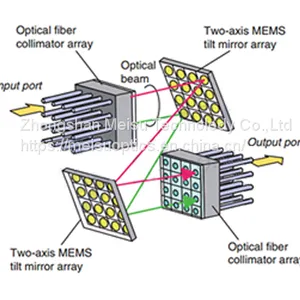

Traditional optical fiber collimator is the basic component of optical fiber communication device. However, with the development trend of integration and miniaturization, fiber optical switch, optical cross connection such as N * M equipment, and wavelength selection switch are now all needed to start using densely arranged array fiber collimators; whereas, the existing single fiber collimator is too big to be applied. Therefore, 2D optical fiber collimator arrays with precise pitch have now gradually become the necessary choices for numerous optical integrated devices.
The Features of 2D Array Fiber Collimators
Arbitrary arrangement
Customer determined core pitch
Pitch accuracy
Customized working distance and spot size
Fiber type: SM/MM/PM
Customized solutions
Various materials (Glass / Ceramic)
How It Works

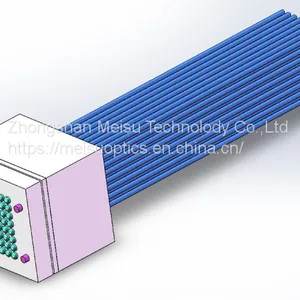

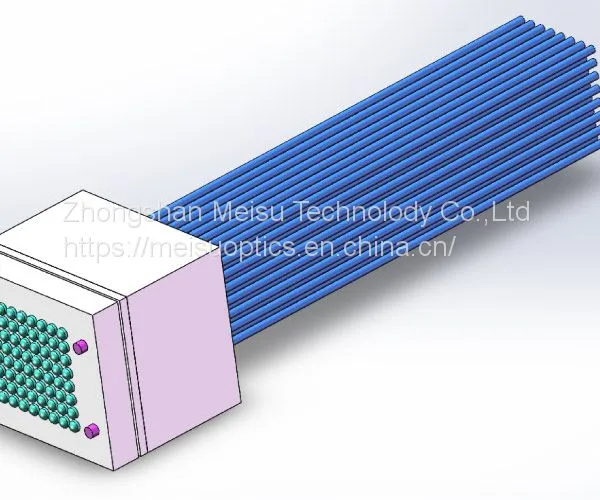

A 2-D collimator array normally includes a housing that fixes the distance between the optical fiber array and the lens array, a 2D fiber array holding multiple optical fibers arranged in M*N, and an M*N lens array that is used to receive the incident beam transmitted by the fiber array. And each lens in the lens array is arranged at the optical path position of each fiber head in the fiber array in a one-to-one correspondence. Glue will be applied between the end face of the shell and the lens array once the positions are all set well.
MEISU is one of professional fiber optic switches manufacturers. We provide Linear Fiber Array, PM Fiber Device, pm fiber assemblies and so on. Want to know about fbg array? Please contact us.
