Home > Industrial Equipment & Components > Sealing & Gaskets > Oil Seal > TTO Rubber Oil Seal

TTO Rubber Oil Seal

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Trading Company

Year Established:

2014

Annual Export Value:

US$10 Million - US$50 Million

Contact Supplier Request Quote Chat Now

Liuzhou Xiaori Machanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

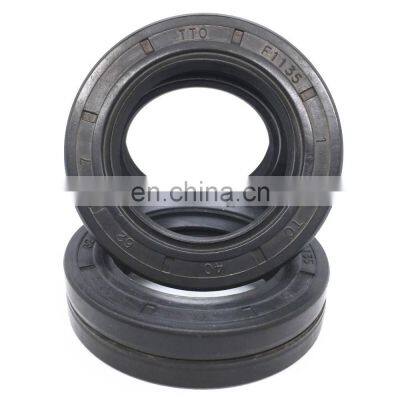

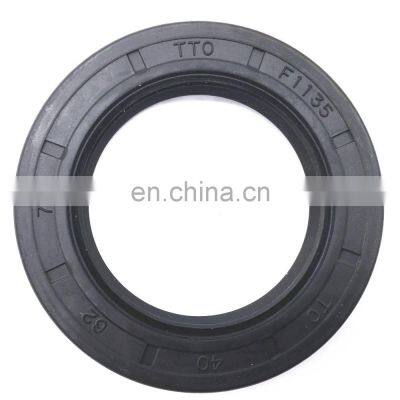

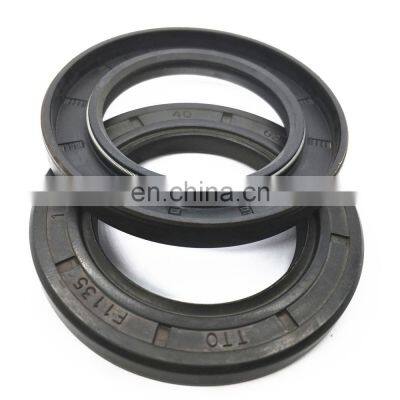

TTO Rubber Oil Seal

Rubber Oil seal consists of three parts: the seal body, strengthen the skeleton and the self-tightening spiral springs. The role of oil seal of the transmission components in general is in need lubrication components and parts output isolation, and typically used for rotating shaft is a rotary shaft lip seal. It can be divided in the seal, the outer seal, the inner and outer exposed skeleton oil seal.

Product Name	Standard Oil Seal TTO Rubber Oil Seal
Type	TC TB SC SB TCV TCN VC VB DC DB VCW TGA
Material	NBR, FKM, SILICONE, PTFE, etc.
Color	Black Brown Red TTO Rubber Oil Seal
Working Temperature	-40℃ - +250℃ TTO Rubber Oil Seal
Working Pressure	0.03-0.98MPa(0.3-10kg)
Working Medium	Oil, Air, Water, etc. TTO Rubber Oil Seal
Application	Tractor, Gearbox, Crankshaft, Valve, Excavator, Motor, etc.

Oil Seal Size

Rubber Material

Rubber Material TTO Rubber Oil Seal

	NBR(nitrile butadiene rubber) Service Temperature For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and formula. Application NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low temperatures.
FKM, ffkm(Fluorocarbon) Service Temperature For general type ffkm the service temperature is better limited to approximately from -26 C to 232 C in static applications, though the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15 C and 200 C. Application Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in automotive, chemical processing, aerospace and many other industries.
	Silicone Rubber (Q, MQ, VMQ, PVMQ) Service Temperature For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in extreme temperature up to 300 C and down to -100 C. Application Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that need approval for food handling equipment and appliances.
PTFE Service Temperature PTFE's mechanical properties are low compared to other plastics, but its properties remain at a useful level over a wide temperature range of -100°F to +400°F (-73°C to 204°C). Application PTFE is the common sealing material used for making wear ring, backing-up ring, o ring, gasket, etc. It can be found in metallurgy machinery, petrochemical machinery, engineering machinery, and light industrial machinery.
