Double Table Panel Processing CNC Router china cnc wood turning lathe Wood CNC Router
- 12000 Set / Sets per Month
- qingdao,Shandong,lianyungang,Jiangxi,guangzhou
- T/T L/C
- 1325 Stone Carving Machine stone cutting machine china stone cnc machine suppliers
- Foam Engraving Machine CX-2040 foam cnc engraving machine foam cnc engraving machine manufacturer
- Vibrate Knife Cutting Machine china vibrate knife cutting machine
- CX-3015 Fiber Laser Cutting Machine 2000w fiber laser cutting machine china fiber laser cutting machine
- SuperStar CX-1325 MINI Letter CNC Engraving Machine china advertising engraving machine
- Superstar CX-1625 Side Drilling Machine for Panel Furniture timber cnc machine
Product Details
Brand Name: | SuperStar | Place of Origin: | China |
Product Description

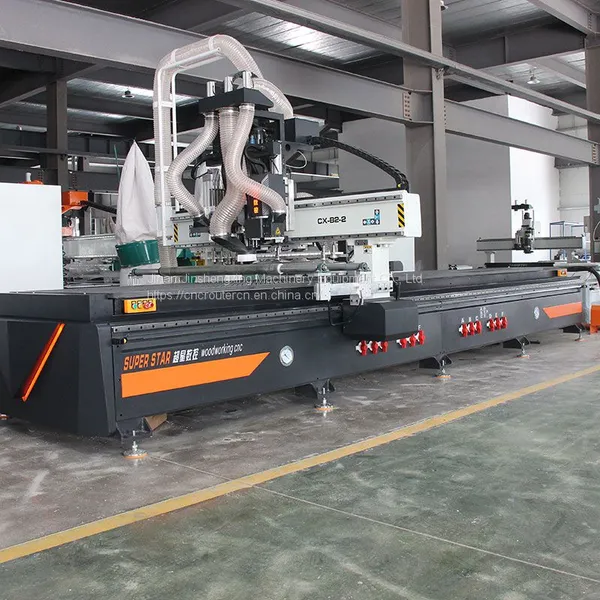

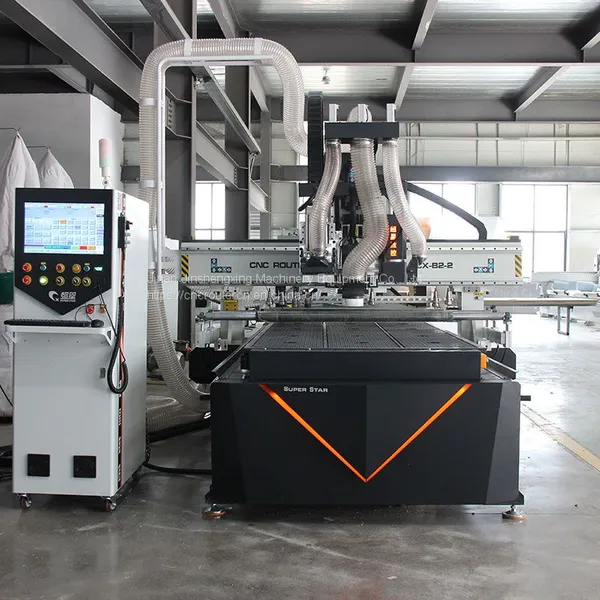

Double Table Panel Processing CNC Router china cnc wood turning lathe Wood CNC Router
Double Table Panel Processing CNC Router with Mechanical safety standards, in line with national safety standards, in line with national safety and health regulations. The equipment has good and comprehensive safety protection measures.
Advantages of SuperStar Woodworking CNC Router Machine
1. Stable structure: thick-walled square tube welding, side plate tempering treatment, the bed is processed by the five-face milling machining center, aging treatment, firm and non-deformation.
2. Modular structure design, simple and safe operation mode to ensure the speed and accuracy of operation.
3. Linear automatic tool change system with a tool magazine capacity of 12 knives.
4. Vacuum adsorption table, high-power vacuum pump, air volume up to 350m3 / h for each vacuum pump.
5. Perfect lubrication system to extend the service life of the machine.
6. Using gantry type movement, can freely process the material on the work surface, easy to operate.
7. The Y-axis is driven by a dual motor to ensure smooth operation.
8. The X/Y axis adopts high-precision rack drive for high speed and high precision.
9. Z-axis adopts high-precision double-nut automatic anti-backlash ball screw drive with high precision.
10. The three-axis adopts a square linear guide to ensure the high precision of the machine and bear heavy load.
11. The wire uses imported high-flexible shielded cable
Specification
Model | CX-B2-2 woodworking CNC router |
Work area(mm) | 1300x5000x250mm |
Machine size | 2300*7500*2300mm |
Machine structure | Thicker machine crust,V shape new design with LED light |
Max travel speed | 50m/min |
Max carve speed | 30m/min(depend on materials thickness) |
Linear rails | Y axis with 30mm and XZ axis 25mm Taiwan square linear rails |
Transmission for XY | HERION gear wheel transmission |
Transmission for Z | TBI ball screw transmission |
Spindle power | 9KW Italy HSD ATC air cooling spindle |
Drilling head | 4vertical drilling |
Spindle speed | 0-18000rpm/min |
Tool magazine | Linear tools magazine, 12 pcs |
Inverter | Delta 7.5kw frequency inverter |
Worktable structure | Double-layer 6-zone adsorption table |
Vacuum pump | JQT-S Air vacuum pump 7.5kw |
Control system | Taiwan LNC2200 system |
Drive mode | Japan YASKAWA drive |
Motor for XY | Japan YASKAWA servo motor 850W |
Motor for Z | Japan YASKAWA servo motor 1.5kW with brake |
Reducer | Japan Shimpo reducer |
Cable | High shielded cable |
Sensor | Auto tool sensor |
Dust collect | Double bags 5.5kw,380V |
Roller | Pressure Roller |
Mist sprayer | Oil Mist sprayer for tool cooling |
Work voltage | AC380±10%, 50HZ 3phase(Do customized) |
Format | G code, HPGL 3D |
Reposition accuracy | ±0.05mm |
Accessory box | Standard |
Package | Air cushion packaging |
Packing size(mm) | 3600*2300*1850mm |
New weight | 230KGS |
Warranty | 1 years |
Applicable Industry
Cabinet Door Panels, Panel Furniture, Solid Wood Furniture, Indoor Composite Doors
Function: Automatic Tool Change, Cutting, Milling, Hollowing, Slotting, Punching, etc.
China CNC Router Manufacturer specializes in the production of fiber laser marking machines and automatic metal engraving machines. If you are interested in our products, please contact us as soon as possible.
