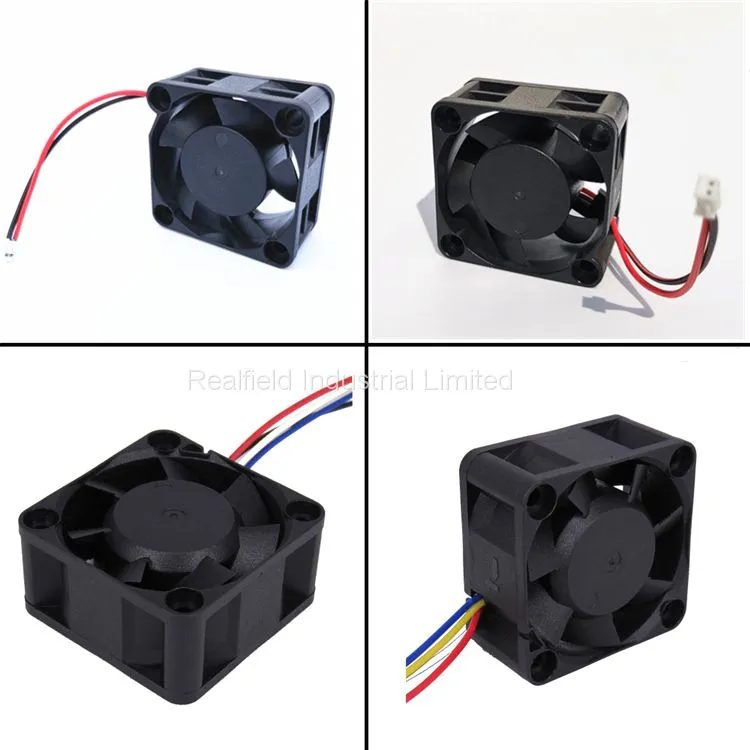

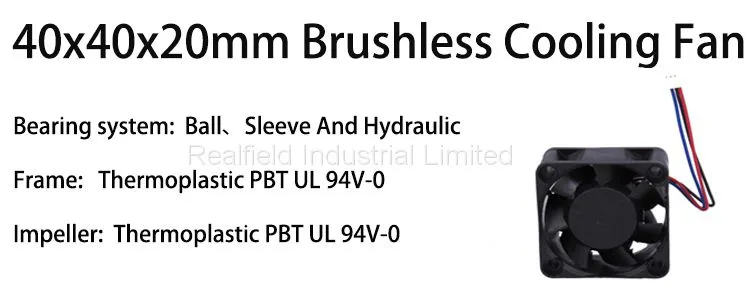

40mm Ventilador 3 Pin 40x40x20mm dc 12v 1u Server Cooler Cooling Fan Small Ventilator
US$ 1.8 - 2.0
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD402012M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Micro 40mm 4pin Pwm Speed Control Brushless 12v dc 40x40x28mm 4028 4pin Pwm Equipment Cooling FanUS$ 3.8 - 4.2MOQ: 200 Pieces -
60mm Hydraulic Bearing Axial Ventilator Fan Blower 5v dc 60x60x15mm 6015 CoolerUS$ 0.88 - 1.08MOQ: 500 Pieces
-
20mm 20x20x6mm 2006 dc 3v 3.7v 5v Micro Axial Ventilador Pcb Cooling FanUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
2cm 20mm Ventilateur 20x20x6mm 2006 dc 3v 3.7v 5v 12v Micro Axial Ventilador Cooling Fan LfterUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
20mm Micro Lfter 20x20x10mm Mini Ventilateur 12v dc 2010 Panel Axial Cooling FanUS$ 1.8 - 2.2MOQ: 1000 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD402012M
Certification
CE, ROHS
Voltage
DC 12v
Power
2.16W
Speed
8000RPM
Air Volume
8.43CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
40mm ventilador 3 pin 40x40x20mm dc 12v 1u server cooler cooling fan small ventilator

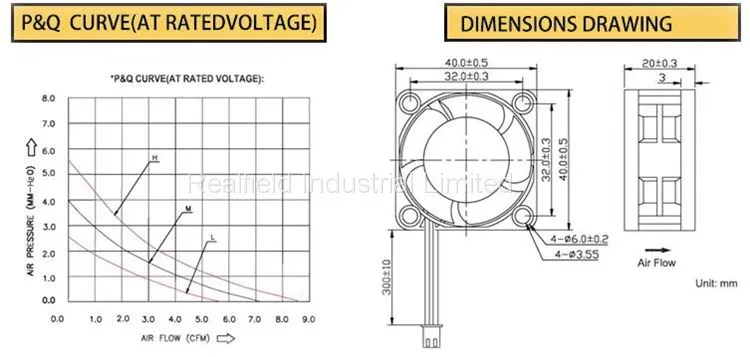

| MODEL | Rated voltage | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | Amp | Watt | RPM | M3/min | CFM | mmH2O | INH2O | Noise |
| HXD402005L | 5 | 0.1 | 0.5 | 4500 | 0.1 | 3.54 | 2.86 | 0.11 | 16.2 |
| HXD402005M | 5 | 0.13 | 0.65 | 5500 | 0.12 | 4.33 | 3.49 | 0.14 | 19.8 |
| HXD402005H | 5 | 0.2 | 1 | 6500 | 0.17 | 6.16 | 5.4 | 0.21 | 23.6 |
| HXD402005HH | 5 | 0.28 | 1.4 | 7500 | 0.23 | 8.23 | 7.62 | 0.3 | 25.4 |
| HXD402012L | 12 | 0.04 | 0.48 | 3800 | 0.08 | 3 | 2.41 | 0.1 | 13.6 |
| HXD402012M | 12 | 0.08 | 0.96 | 5500 | 0.12 | 4.33 | 3.49 | 0.14 | 19.8 |
| HXD402012H | 12 | 0.11 | 1.32 | 6500 | 0.17 | 6.16 | 5.4 | 0.21 | 23.6 |
| HXD402012HH | 12 | 0.15 | 1.8 | 7500 | 0.23 | 8.23 | 7.62 | 0.3 | 25.4 |
| HXD402012BH | 12 | 0.23 | 2.76 | 8500 | 0.26 | 9.15 | 8.5 | 0.33 | 27.2 |
| HXD402024L | 24 | 0.04 | 0.96 | 5000 | 0.11 | 4 | 3.17 | 0.13 | 18 |
| HXD402024M | 24 | 0.06 | 1.44 | 6500 | 0.17 | 6.16 | 5.4 | 0.21 | 23.6 |
| HXD402024H | 24 | 0.08 | 1.92 | 7500 | 0.23 | 8.23 | 7.62 | 0.3 | 25.4 |
| HXD402024HH | 24 | 0.1 | 2.4 | 8500 | 0.26 | 9.15 | 8.5 | 0.33 | 27.2 |
If you need other rpm or voltage or functions which not in the list ,please contact Luke.
