1 .General

ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.

2. Product specification

Function Description

Measurement of kWh : Total kWh,(positive and negative in total)

Measurement of electrical paramenters : Voltage,Current

LCD display : 8 bits section LCD display

Prepayment : prepayment by RS485 communication,data encryption

Multi-tariff : Adapt 4 time zones, 2 time interval lists,14 time interval by day and 4 tariff rates (optional)

Communication  : communication interface  RS485 (optional)

                               communication protocol   MODBUS-RTU (optional)

Technical Feature

Installation

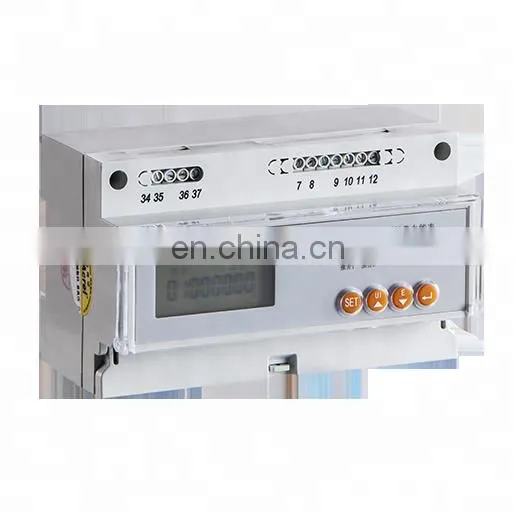

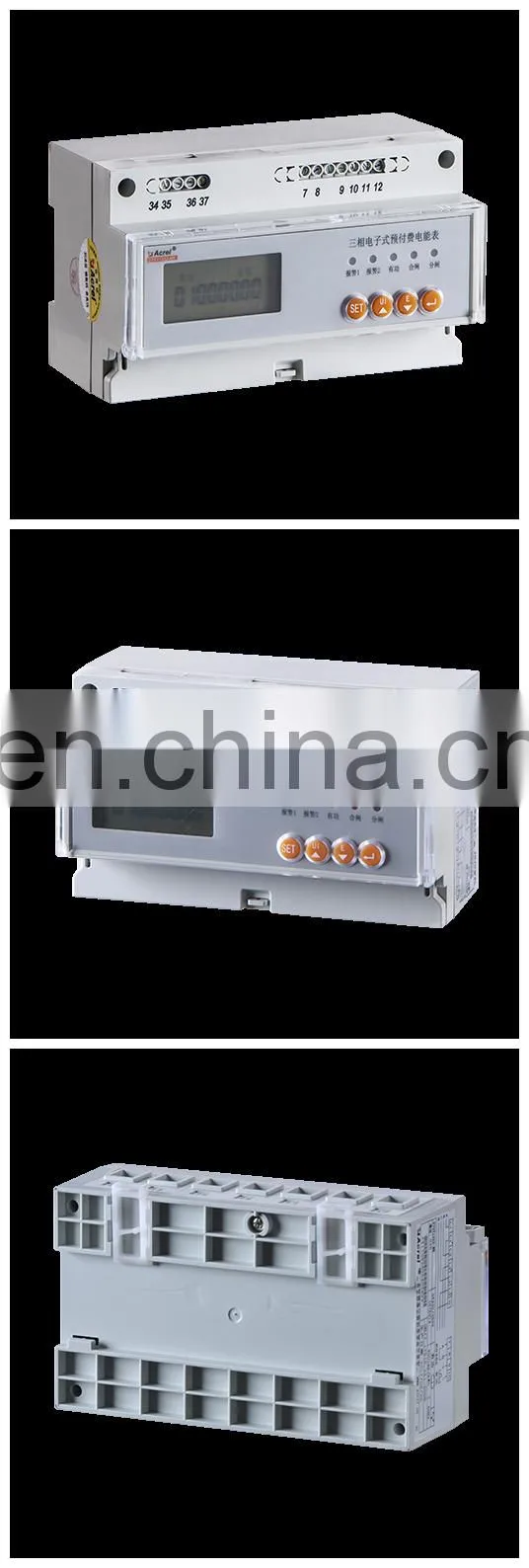

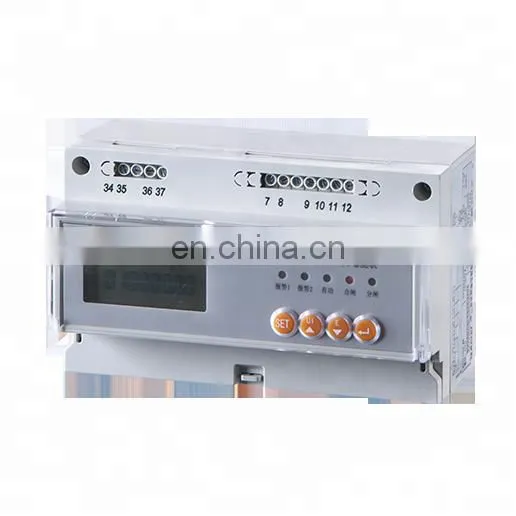

                          ADL100-EY                                                             ADL100-ET

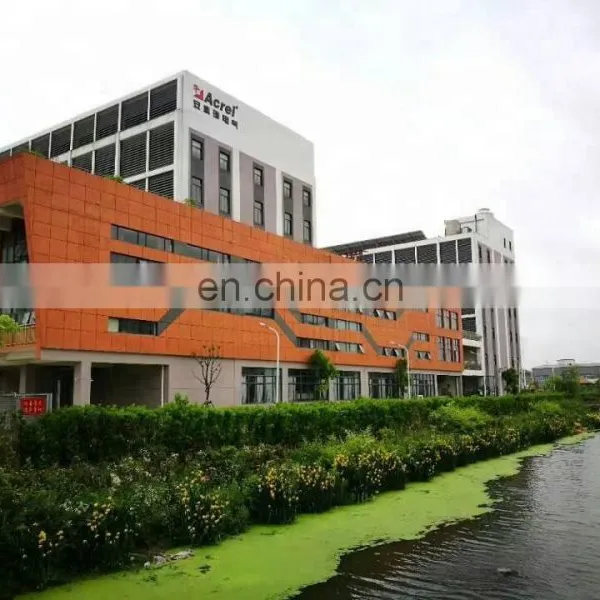

Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.

Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
