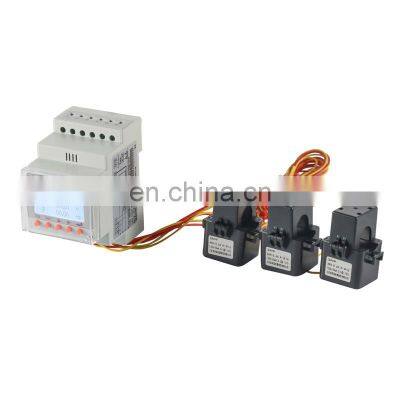

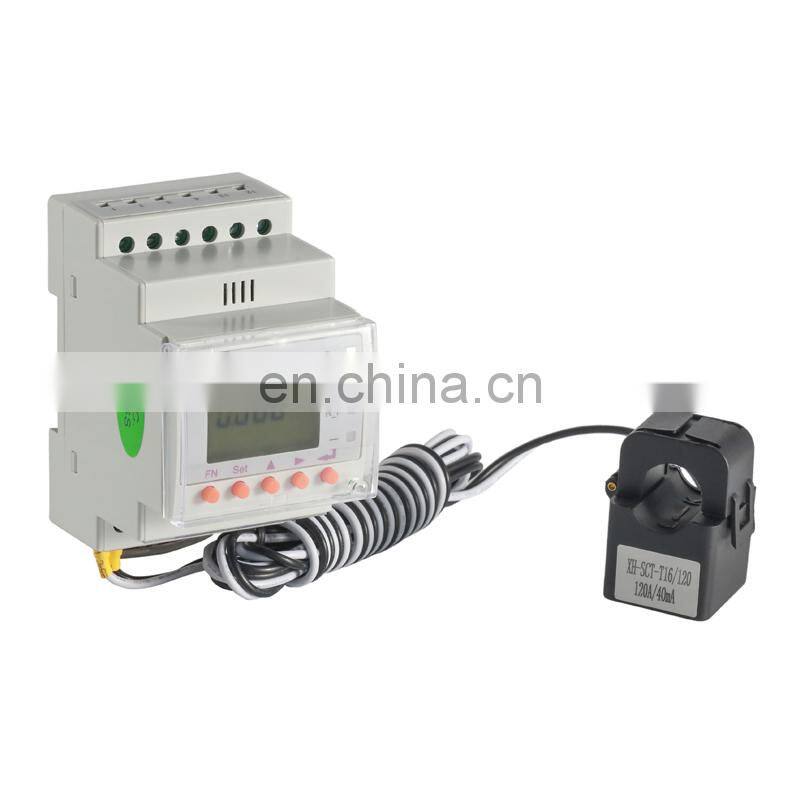

Rail-Type Single phase Energy Meter with External Split Core CT ACR10R-D16TE for Solar Inverters

Name: Rail-Type Single phase Energy Meter with External Split Core CT ACR10R-D16TE for Solar Inverters
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

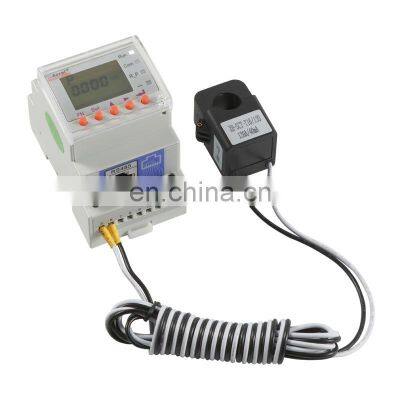

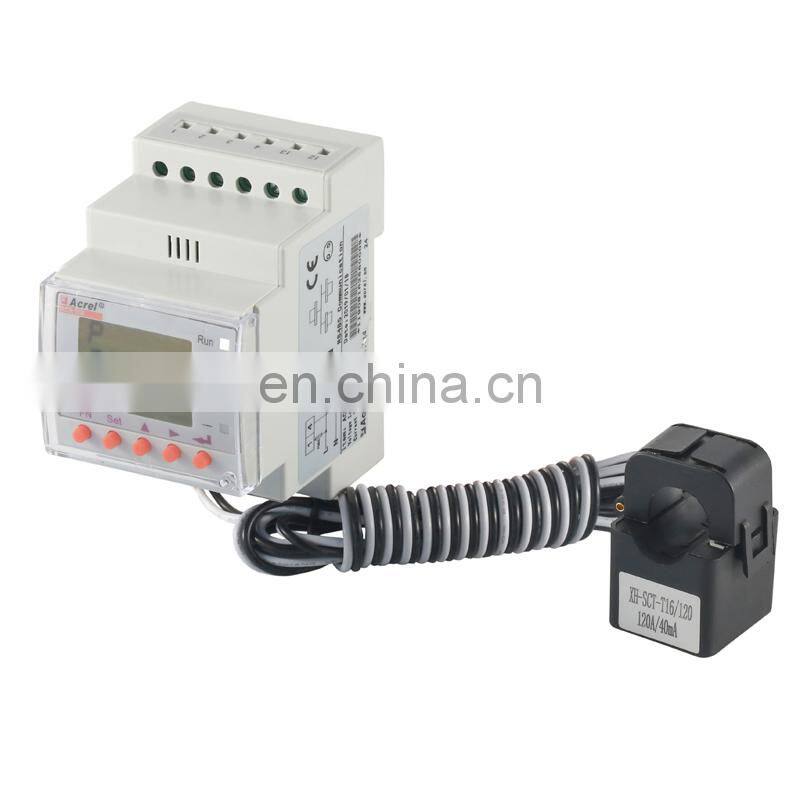

Single Phase Energy Meter for Solar Inverters

Product Description

Type	ACR10R-D16TE
Rated current	120A
Rated voltage	AC 100V, 400V
Split CT size	through size 16mm
Precision	Active energy 0.5 class
Power supply	AC85～265V 或 DC100～350V

Characteristic

Single phase LCD din rail energy meter with 16mm split CT enabled cable 120A input. It suitable for power monitoring of grid-connected PV power station,power management and so on. It is easy to install without removing primary bus bar and cost-effective. It can measure current,voltage, active power,reactive power,frequency,power factor and so on. It supports multi-tariff energy metering,4 quadrant energy metering,harmonic analyse and so on.

Specification

Grid: Single-phase

Accuracy :
Voltage: 0.2 Current, Power, Active energy: 0.5 Frequency: 0.01Hz Reactive energy: 1

Communication: RS485 Modbus-RTU

Dimension(L*W*H) : 85*74*54mm

Installation : DIN 35 mm

Power supply : AC85～265V or DC100～350V

Power consumption : ≤10VA

Input consumption : Less than 0.2VA

Technical parameters			Indicators
Input	Grid	Single-phase
		Frequency	45～65Hz
		Voltage	Rated voltage: AC 100V, 400V
				Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
				Power consumption: less then 0.2VA
		Current	Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications)
				Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
				Power consumption: less then 0.2VA
Output	Communication	RS485 interface, Modbus-RTU
		Display	LCD
Measurement precision			Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
Power supply			AC85～265V or DC100～350V; power consumption ≤10VA
Safety	Power frequency withstand voltage	AC2kV 1 min between power supply // current input//voltage input and communication AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
		Insulating resistor	Input,output terminal to housing >100MΩ
Environment			Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃ Relative humidity:5%～95%，non-condensing; altitude:≤2500m

Dimensions

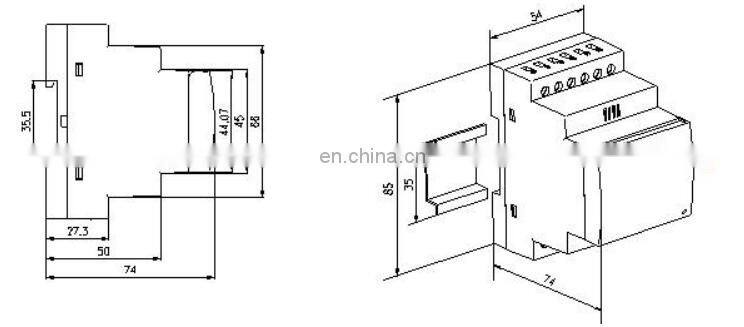

Meter size

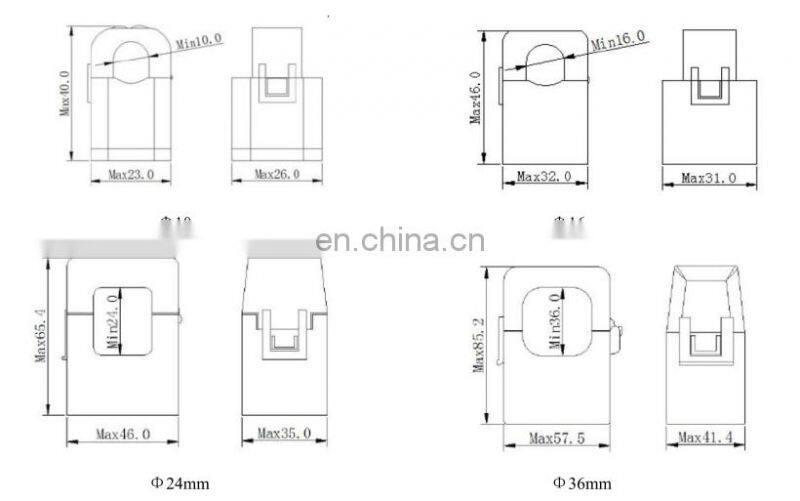

Split core CT size

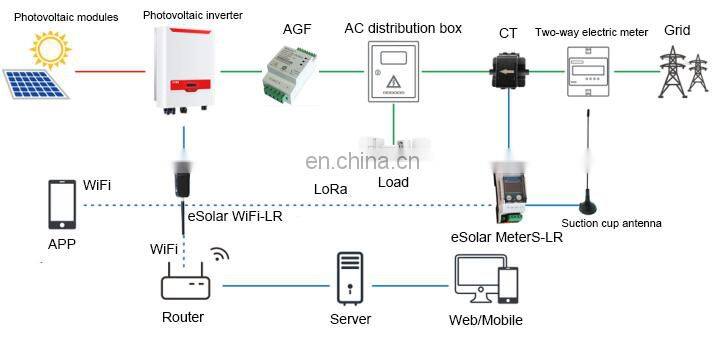

Application

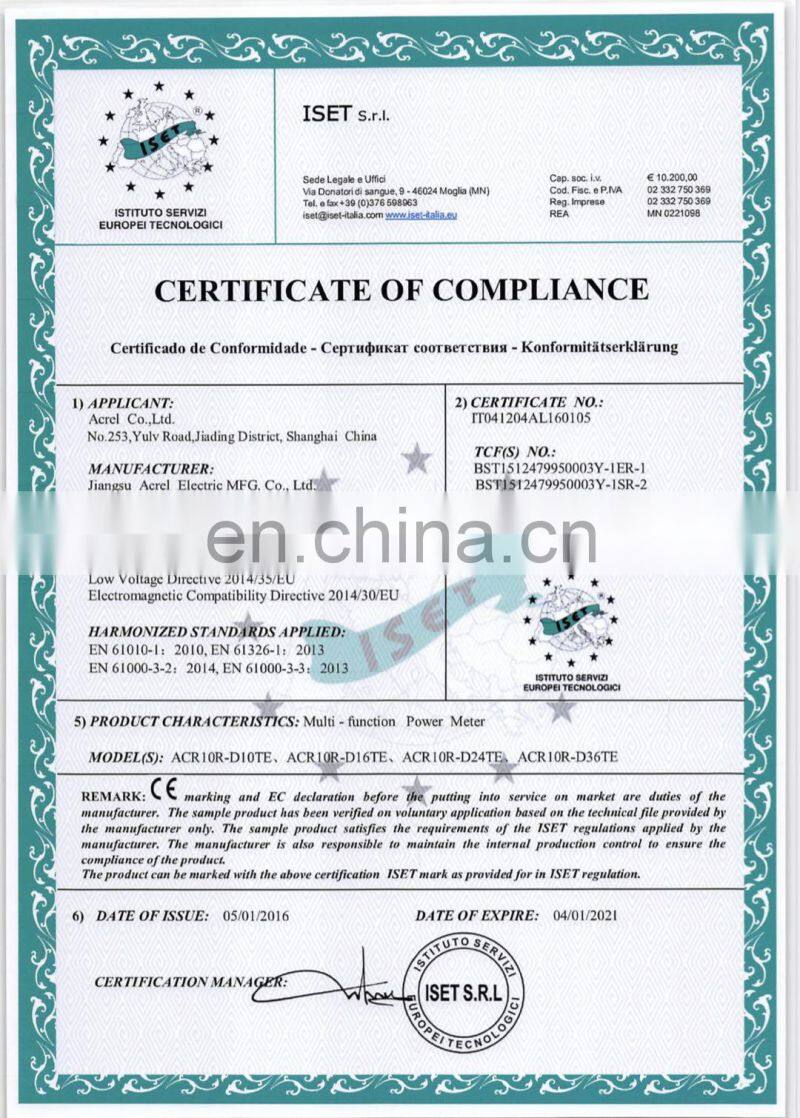

Certificate

Company Profie

Packing & Delivery

Contact Us
