Acrel ACR10R-D36TE4 Three Phase Din Rail Energy Meter for Solar Inverter With Split Core Current Sensors

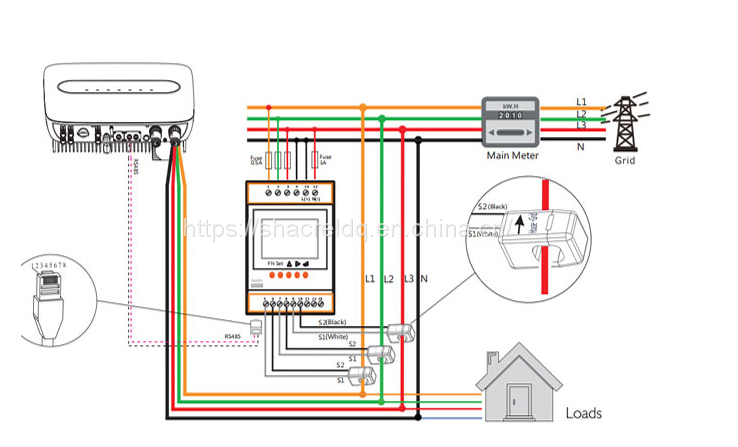

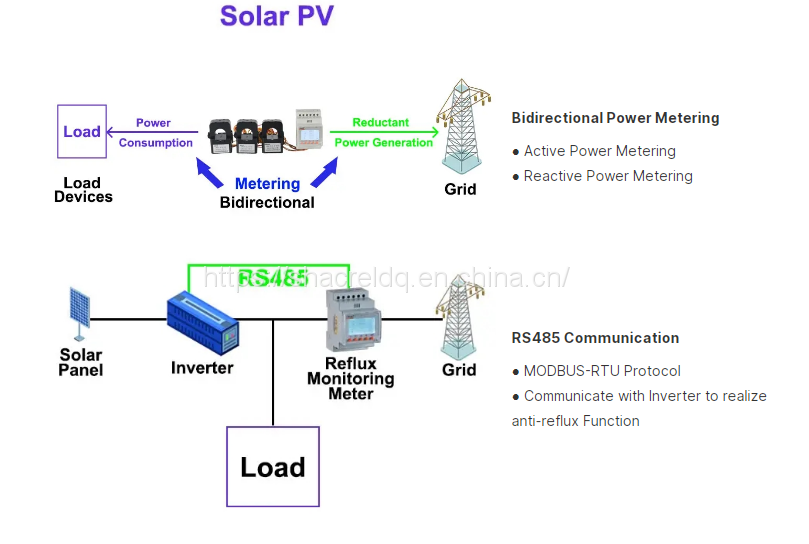

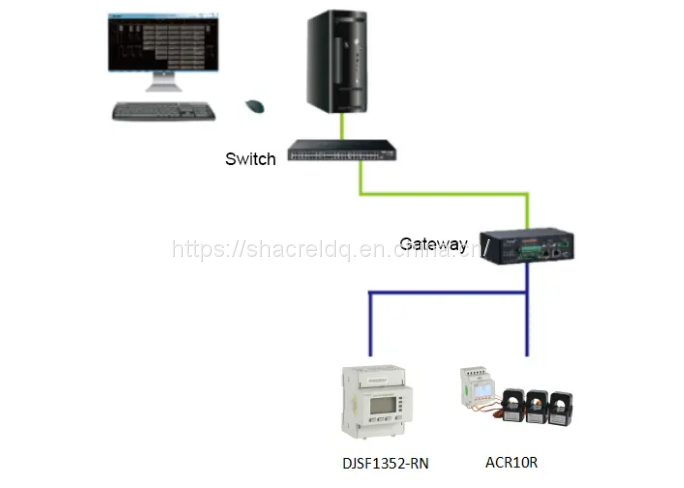

The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry. It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user. It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor ） and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signalling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.

1. who are we?

We are based in Shanghai, China, start from 2017,sell to Southeast Asia(40.00%),Oceania(10.00%),Eastern Asia(10.00%),North America(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Energy Meter; Ammeter and Voltmeter; Current Transformer; Temperature Monitoring Device; Power Sensor; Multifunction Meter

4. why should you buy from us not from other suppliers?

Acrel E-Business Co., Ltd is one of the few leading companies in China who provides various systematic solutions of power monitoring,power controland eletrical safety for smart grid users.we have been focused on the sales of intelligent electric meters.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;

Language Spoken:English,Chinese
