ADW210-D16-2S Lora Communication Real-time Electric Energy Consumption Monitoring Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADW210-D16-1S Profibus-DP Communication Energy and Efficiency Management MeterNegotiableMOQ: 1 -
ADW210-D10-4S Ethernet Communication Remote Electric Energy Consumption Monitoring MeterNegotiableMOQ: 1
-
ADW210-D10-3S Lorawan Conmunication Remote Energy Mangement Meter Three Phase Electrical MeterNegotiableMOQ: 1
-
ADW210-D10-2S Cellular Communication 4G Electrical Power Monitoring MeterNegotiableMOQ: 1
-
ADW210-D10-1S One Channel IOT Instrument Lorawan Conmunication Wireless Electric Energy MeterNegotiableMOQ: 1
Products Description

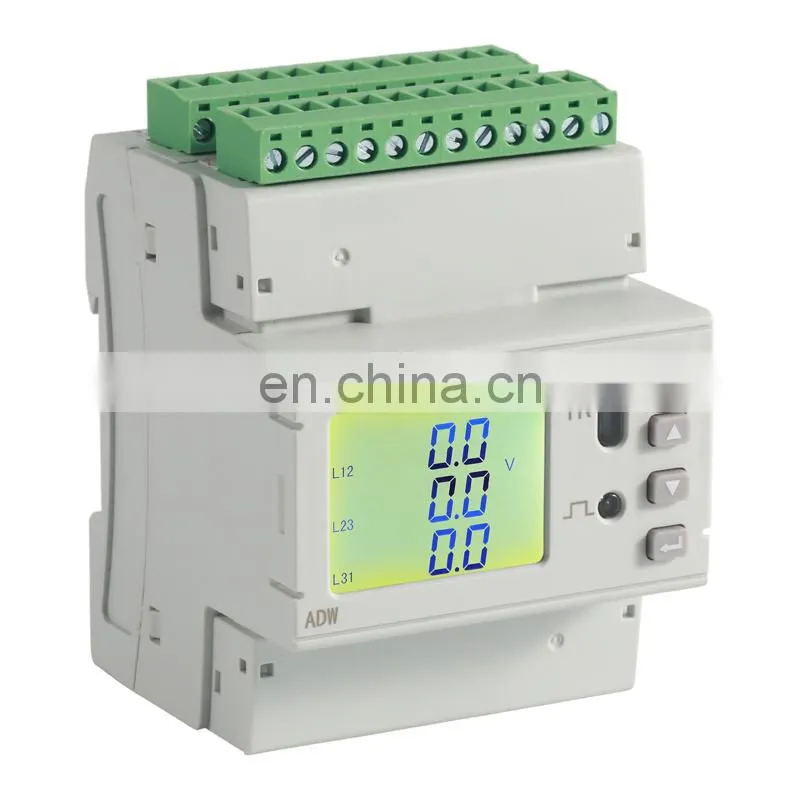

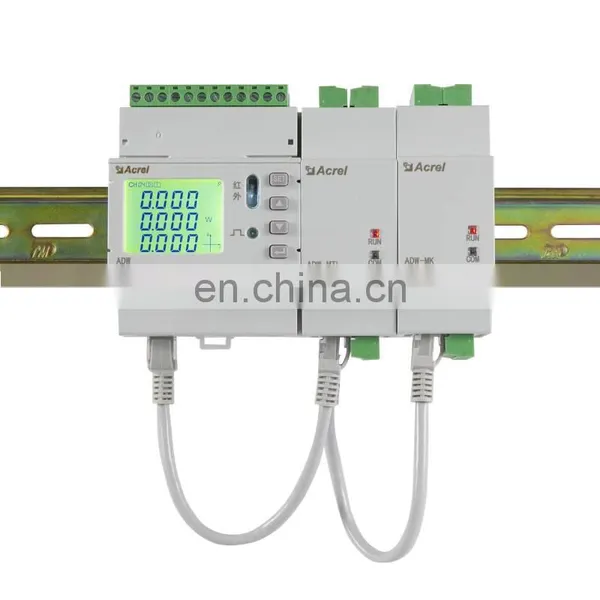

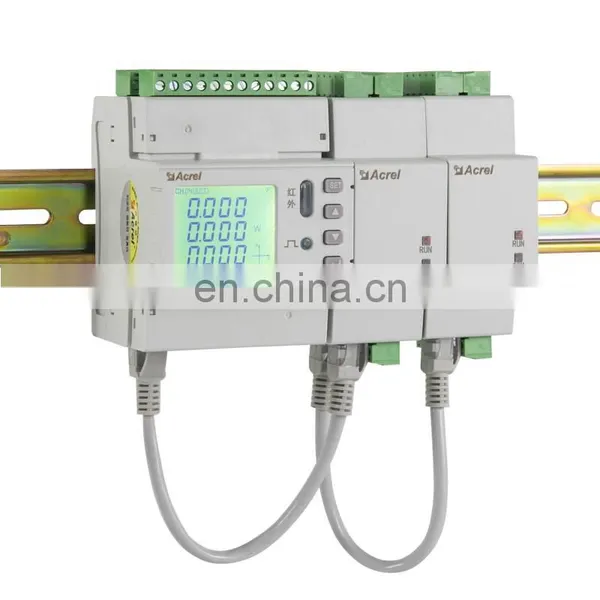

ADW210 Multi-Function Energy Meter

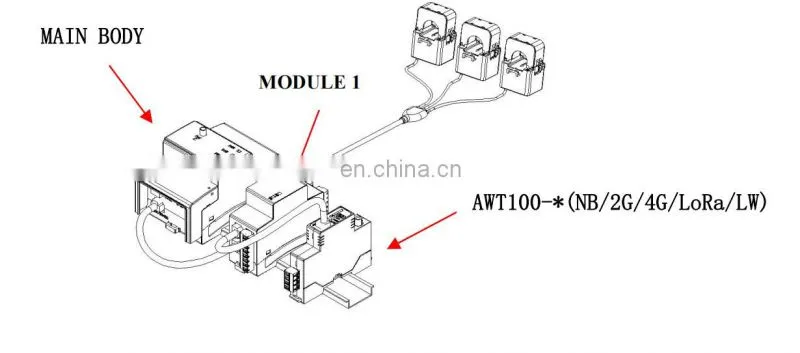

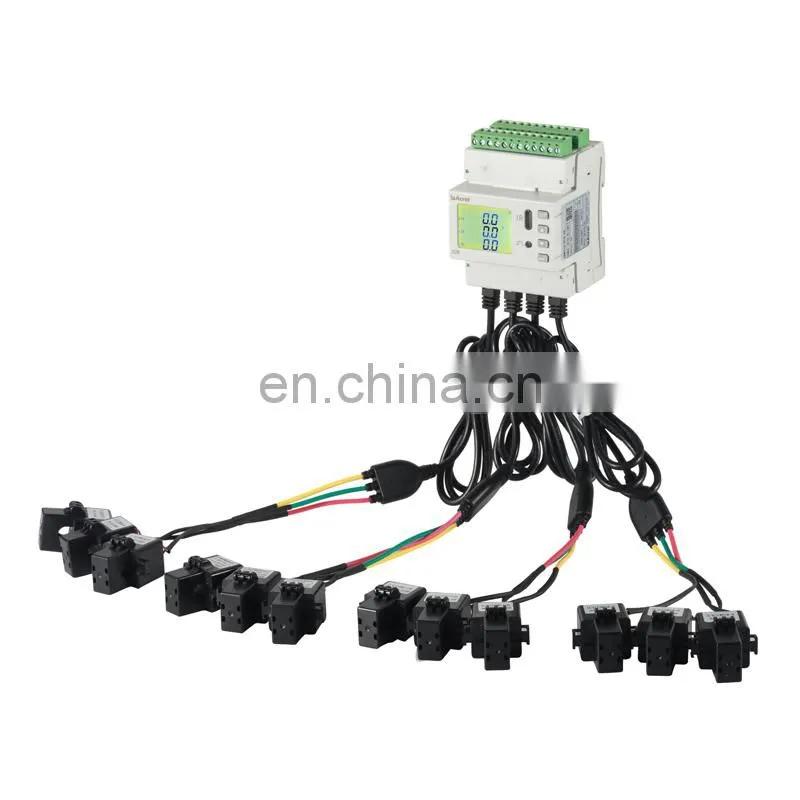

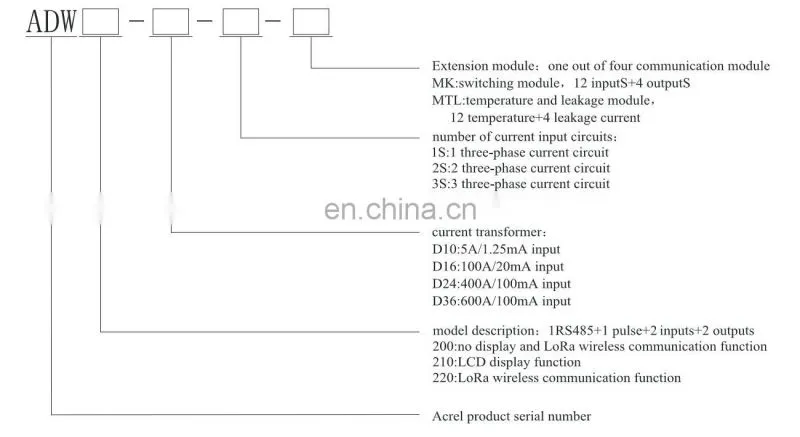

ADW210 has various expanded function modules for communication, measuring of temperature&residual current, DO/DI switch. Meanwhile, as a 3-phase energy meter, it can monitor 4×three-phase circuits in total which means just 1 ADW210 can monitor 12 loads at same time .
Function & Parameter
Prototype Function
Function |
Description |
||||||
Energy
Measurement
|
kWh (positive and negative) |
||||||
kvarh (positive and negative) |
|||||||
A,B,C three-phase positive kWh |
|||||||
Electric Parameter |
U, I, P, Q, S, PF, Hz |
||||||
Harmonic |
2-31st voltage and current harmonic |
||||||
Communication |
RS485 (MODBUS-RTU); baud rate 1200~38400 |
||||||
Key Programming |
4 keypads to set communication and parameters |
||||||
Display |
LCD display, 8 digits |
||||||
LED Alarm |
Over-voltage, over-current, interruption phase |
||||||
Data Log |
Maximum demanded kWh and the time it happened. |
||||||
SOE |
up to 200 pcs, record on-off status of DO/DI |
||||||
Pulse Output |
Active optocoupler pulse output with open collector |
||||||
Multi-rate/Tariff |
4 time zones & 12 time periods |
||||||

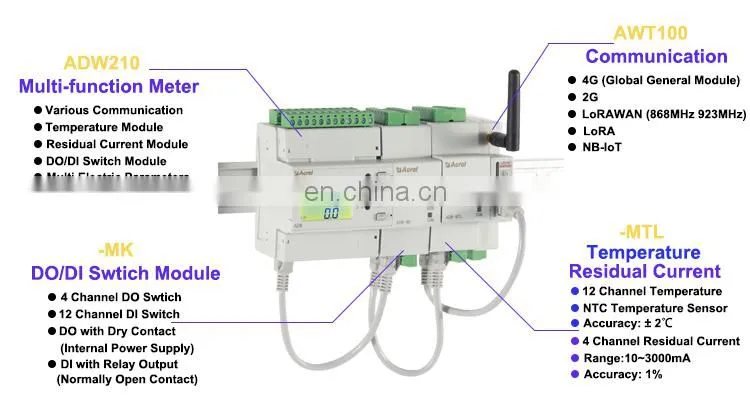

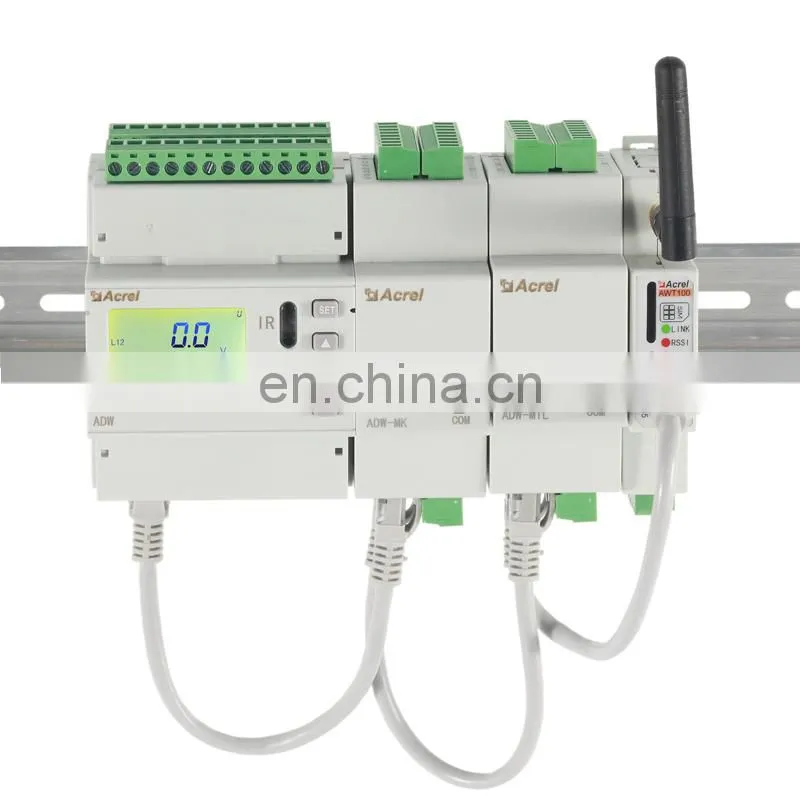

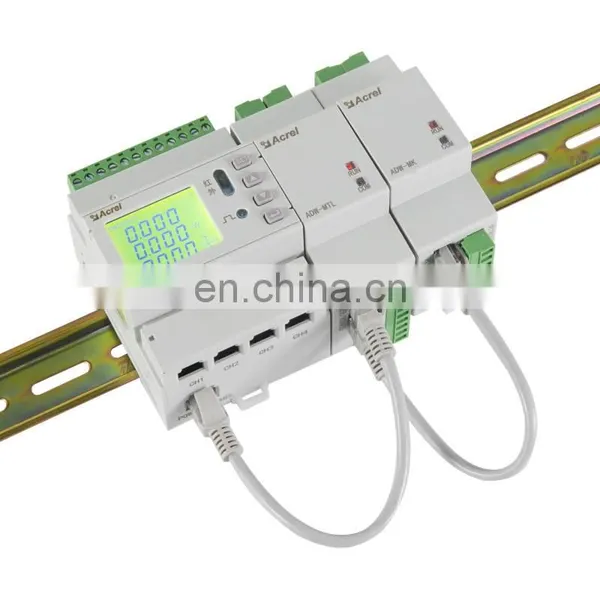

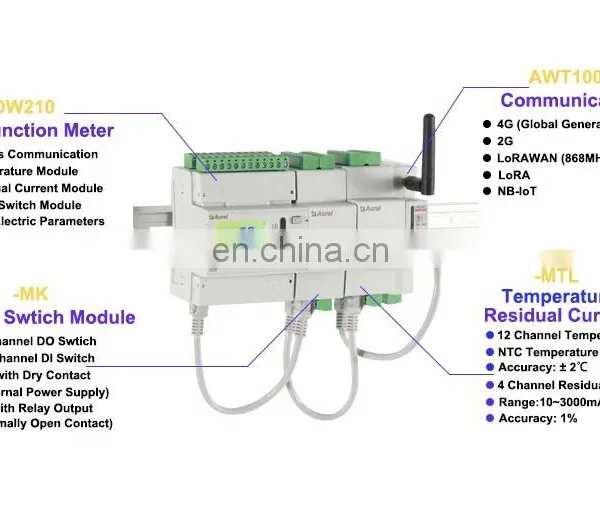

Expanded Module Function
Expanded Module |
Description |
||||||

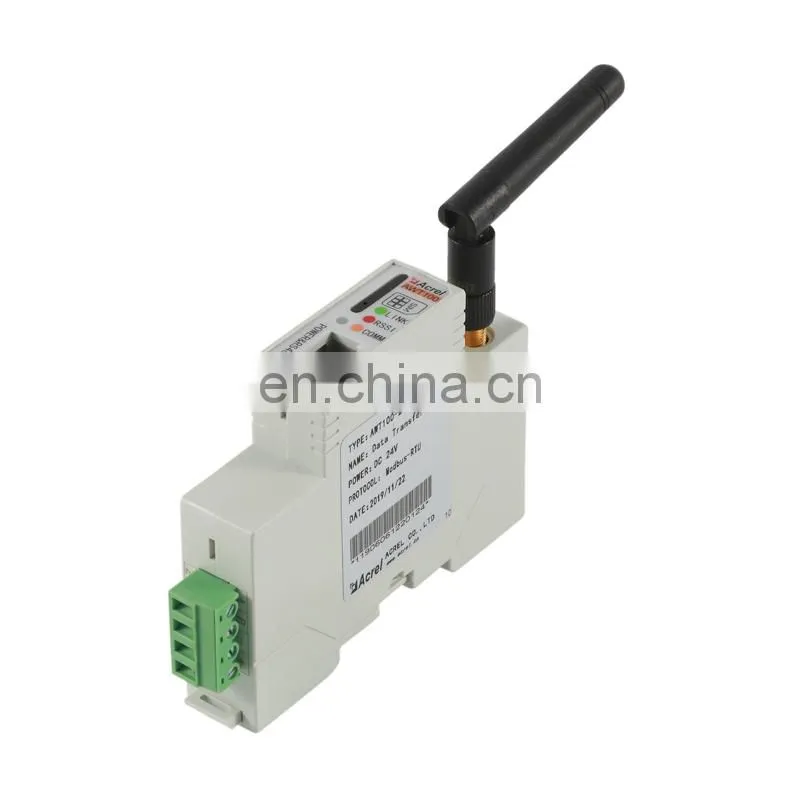

AWT100
Communication
Module
|
4G (Global general module) |
||||||
2G |
|||||||
LoRaWAN (868 MHz, 923MHz) |
|||||||
LoRa (460~510 MHz) |
|||||||
NB-IoT |
|||||||
-MK
Swtich
Module
|
12 × DI (input) |
Dry contact input with built-in power supply |
|||||
4 × DO (output) |
Relay normally open contact output; rating AC 250V/3A ,DC 30V/3A |
||||||
Power Supply |
DC 12V；consumption:≤1W；RJ45 interface |
||||||
Communication |
RJ45 interface; MODBUS-RTU (communication with main body) |
||||||

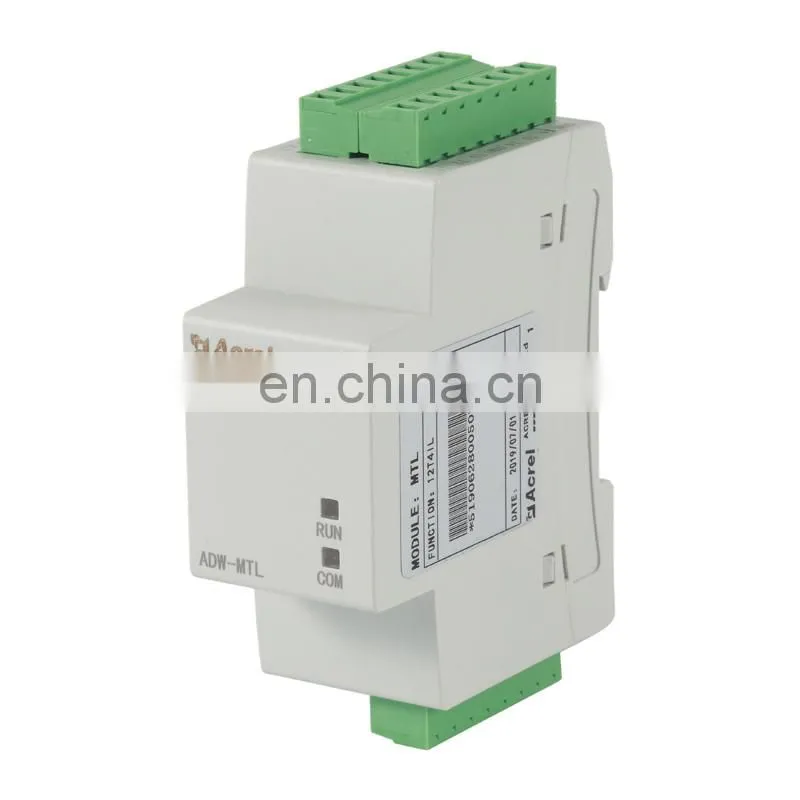

-MTC
Temperature
&
Residual Current
Measuring
Module
|
Temperature Measurement |
-20℃~+100℃ |
|||||
Residual Current Measurement |
10~3000 mA |
||||||
Accuracy |
Temperature：± 2℃； Residual Current：1% (Class 1) |
||||||
Power Supply |
DC 12V；consumption:≤1W；RJ45 interface |
||||||
Communication |
RJ45 interface; MODBUS-RTU (communication with main body) |
||||||
Technical Parameters (Prototype/Main body)
Parameters |
Description |
||||||
Input
|
Voltage
|
AC 3×220V/380V |
|||||
Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s |
|||||||
Power consumption:≤ 0.5VA |
|||||||
Current
|
AC 5A、100A、400A、600A;(external open-type CT) |
||||||
Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s |
|||||||
Power consumption:≤ 0.5VA |
|||||||
Frequency |
45～65Hz |
||||||
Measuring
Accuracy
|
Voltage&Current |
Class 0.5 |
|||||
Active Power |
Class 1 |
||||||
Reactive Power |
Class 2 |
||||||
Frequency |
0.05Hz |
||||||
2~31st harmonic |
± 1% |
||||||
Auxiliary Power |
AC/DC 85～265V;consumption≤10VA; |
||||||
EMC |
Better than grade 3 |
||||||
Safety
|
Withstand Voltage |
＞AC 2000V/1min |
|||||
Insulation Resistance |
＞100MΩ |
||||||
Environment
|
Working Temperature |
-20℃~+60℃ |
|||||
Storage Temperature |
-40℃~+70℃ |
||||||
Humidity |
≤95% (No condensation) |
||||||
Altitude |
≤2500m |
||||||

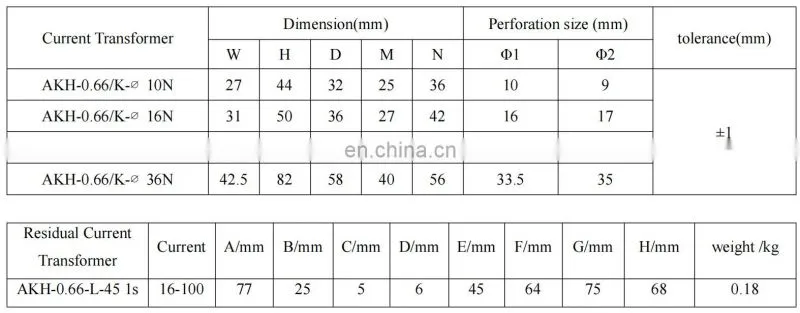

Technical Parameters (paired Current Transformer)
Paired CT |
Primary Current |
Secondary Current |
Aperture(Hole size) |
Accuracy Class |
AKH-0.66/K-φ10N |
5A |
1.25mA |
10mm |
Class 0.5 |
AKH-0.66/K-φ16N |
100A |
20mA |
16mm |
Class 0.5 |
AKH-0.66/K-φ24N |
400A |
100mA |
24mm |
Class 0.5 |
AKH-0.66/K-φ36N |
600A |
100mA |
36mm |
Class 0.5 |
AKH-0.66-L-45 (for residual current)
|
/ |
/ |
/ |
Class 1 |
Dimension & Installation

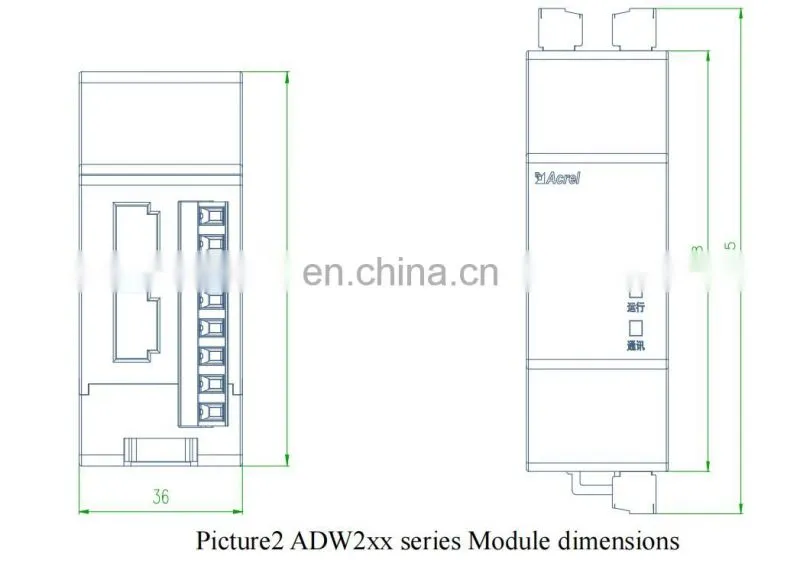

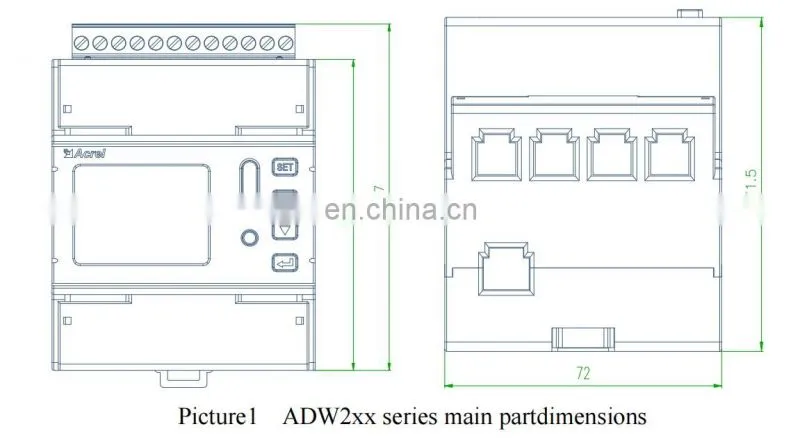

Dimension of ADW220 & Expanded Module
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
