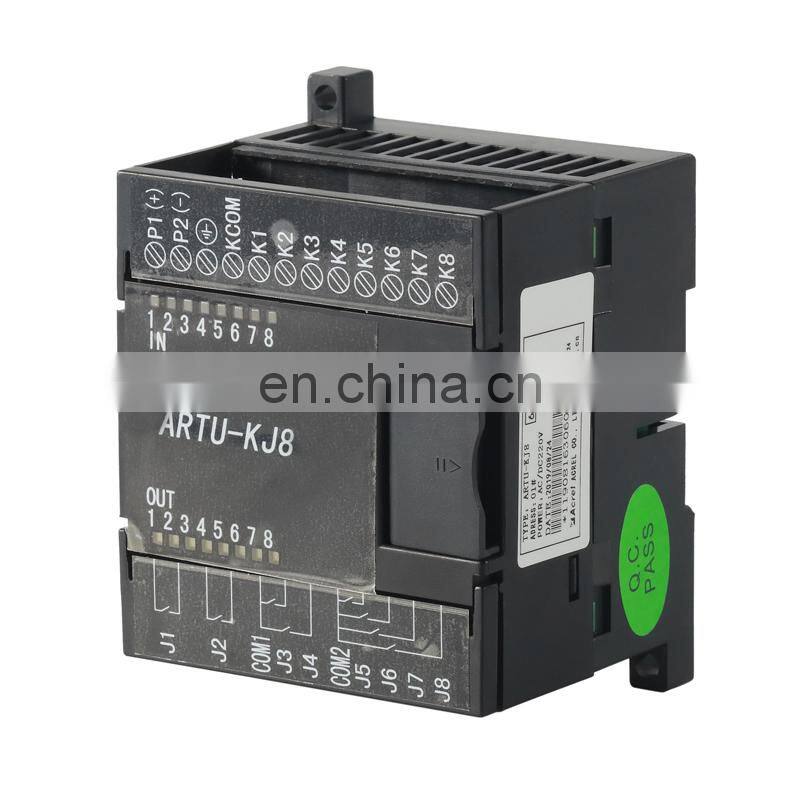

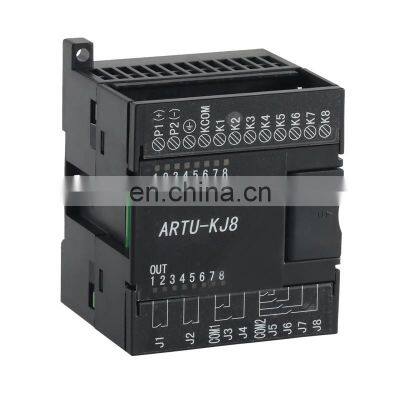

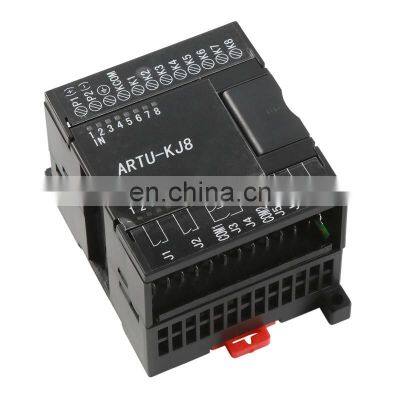

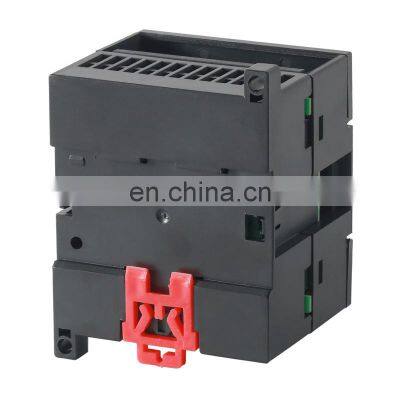

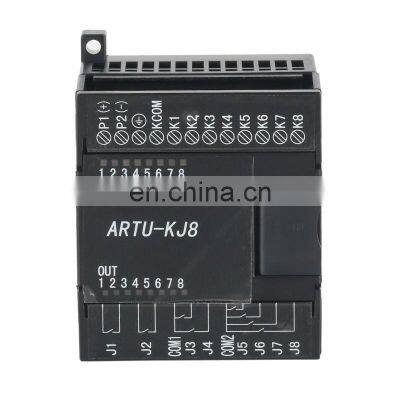

ARTU-KJ8 Series Remote Terminal Unit
|
|
* RS485 ,MODBUS -RTU

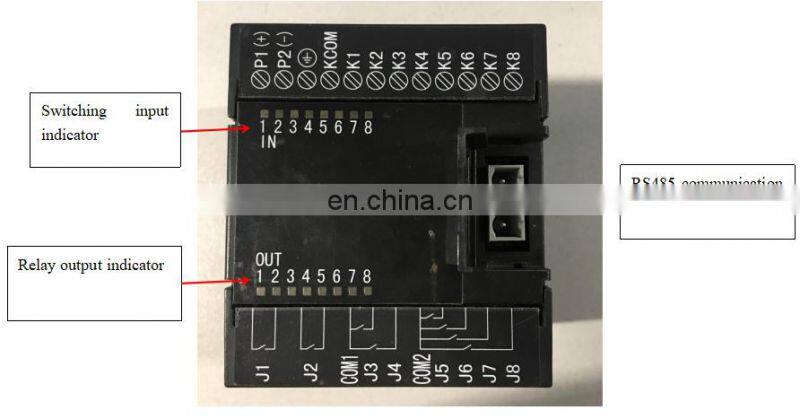

* channel state indicator and communication state indicator
* 24VDC(±10%); 220VAC, allow AC/DC 85~265V
|
| Information | parameter | Company profile | Certificate |
Function
|
Frequency ≤500HZ Power consumption 24VDC(±10%); 220VAC, allow AC/DC AC/DC 85~265V Consumption Auxiliary power supply:power consumption≤5W |
|
|
|
Installation:
Din 35mm
Dimension(L*W*H):
88*71*61.5mm
Switch Relay:
Power relay
|
Wiring
Typical connection
| Information | parameter | Company profile | Certificate |

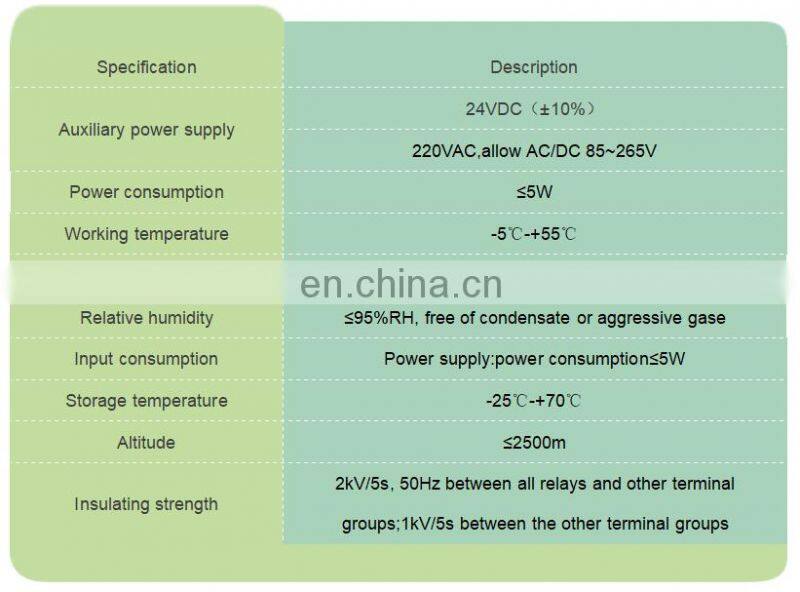

Parameter
| Information | parameter | Company profile | Certificate |
About us
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
| Information | parameter | Company profile | Certificate |
Packing
Shipping
