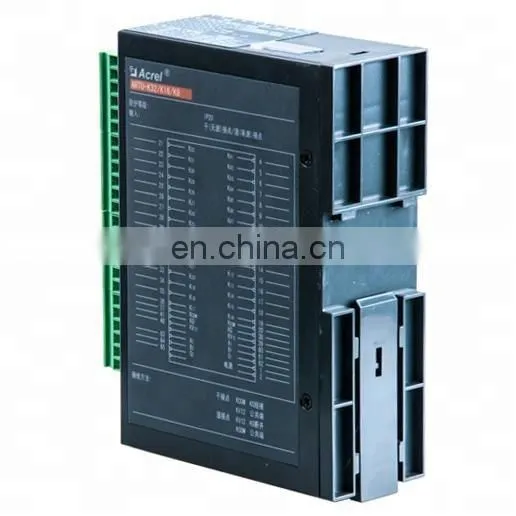

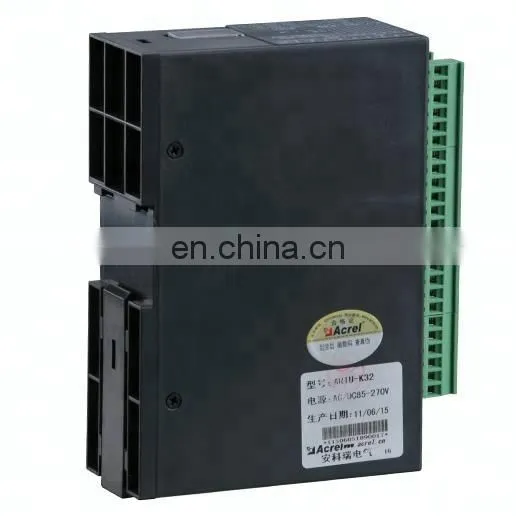

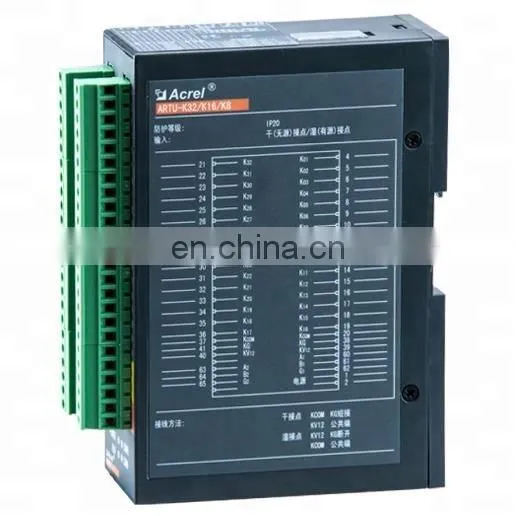

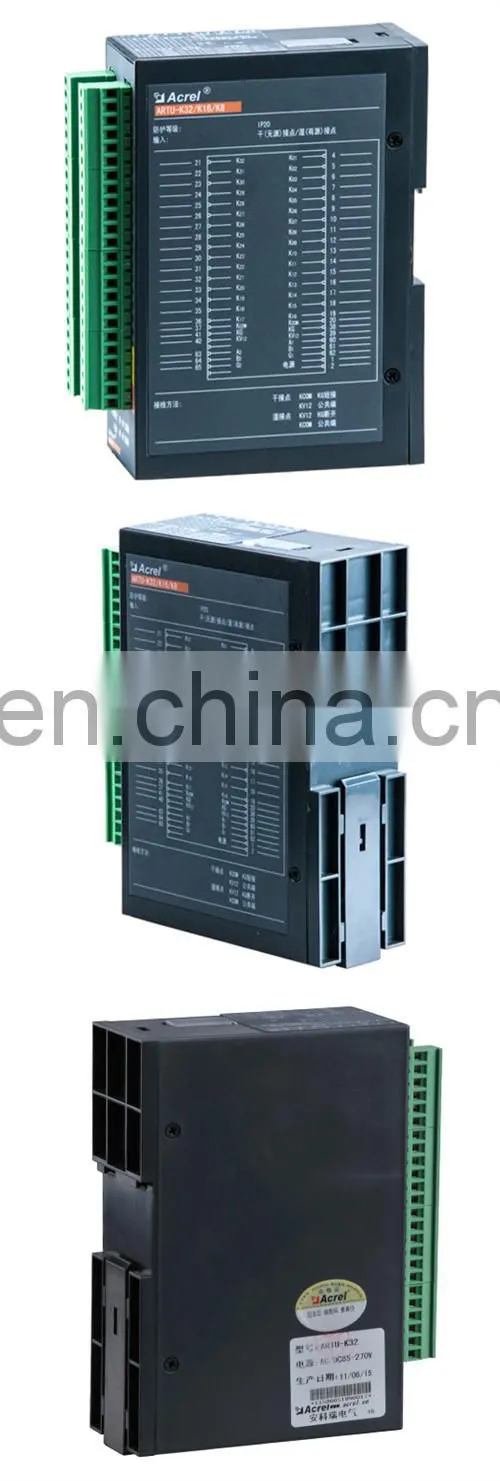

PZ Unit Remote Terminal Unit
1. Genera
RTU Unit Is an intelligent component for high performance power distribution with application in fields such as intelligent power distribution, industrial automation and the like. The product includes three units: Remote Control Unit, Remote Switche state monitoring Unit and Remote Measuring Unit.
2.Technical Features
Remote Switches state monitoring Unit
| Technical Parameters | PZ-K16 |
| Inputs | 16 switch signals |
| Inputs method | Active wet contact(DC12V) or passive dry contact |
| Communication port | RS485 (Modbus RTU) |
| Bus capacity | ≤32 |
|
Resolution of switching state |
Distinguishing capability for bit changing in succession of multiple contacts.When the bit changing interval of any two contacts is more than 1ms,the distinguishing capability (less than 2ms) of the unit is reflected in SOE |
Data update cycle |
for all channels : 1ms |
Debouncing time in remote communication |
Debouncing time is 1~99ms (settable) for all channels |
| capacity(SOE) | 1600 sets |
3. Installation
Outline (Unit : mm)
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certificate
Packing
Shipping
