Product Description

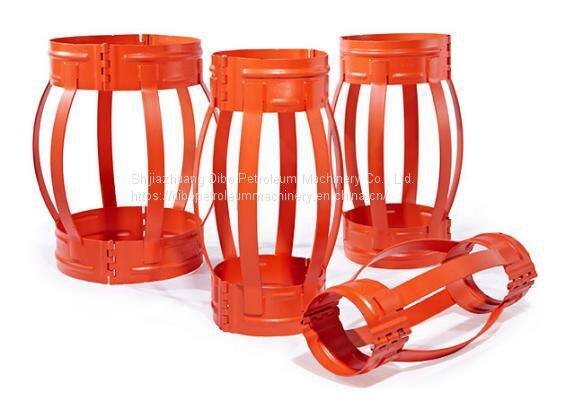

Welded Bow Spring Centralizers
Welded bow-spring centralizers provide excellent downhole durability and performance.
These centralizers feature heat-treated, spring-steel bows that are welded to rigid end collars.
| Product name | Welded Bow Spring Centralizers |
| Material | Steel |
| Size | 4-1/2″×6″-13-3/8″×17-1/2″ |
| Applications |
Welded bow-spring centralizers provide excellent downhole durability and performance. These centralizers feature heat-treated, spring-steel bows that are welded to rigid end collars. |
Applications
l Cased and open holes
l Vertical or slightly deviated wells
l Under reamed and washed-out wells
Features, Advantages, and Benefits
l The high-quality, spring-steel bows are heat treated to optimize standoff in gauge holes, under reamed holes, and washed-out sections.
l Various bow shapes and heights are available to provide optimum restoring forces for most well requirements.
Size Information
| Specification | Casing size (mm) | Hole Size (mm) | Inner Diameter (mm±2) | Outer Diameter (mm±2) |
| 4-1/2″×6″ | 114 | 152 | 118 | 152 |
| 5-1/2″×8-1/2″ | 140 | 216 | 142 | 216 |
| 7″×8-1/2″ | 178 | 216 | 182 | 216 |
| 9-5/8″×12-1/4″ | 244 | 311 | 249 | 311 |
| 13-3/8″×17-1/2″ | 340 | 445 | 344 | 445 |
Packing&Shipping
Packing:polywood case or customized.
Related Products
Cementing Rubber Plug Cementing Basket
Shijiazhuang DiBo Petroleum Machinery Co., Ltd.
Our casing centralizer have already passed the ISO9001 system certification, and the quality of our product exceed API 10D standard. To guarantee new products R&D, we adopt CAD. UG design and modular design to shorten products developing circle. With electronic universal testing machine. Hardmeter and automatic impact testing machine we could control quality of the raw material and finished products properly.
Our products are widely used in many oilfields and committed to effective and qualified solutions for oilfield down-hole operation.
Welcome to you.
Shijiazhuang Dibo Petroleum Machinery Equipment Co., Ltd. has been focusing on the production and processing of petroleum machinery parts since its establishmen, it has injection casting and machining workshops; it has 2 processing centers, more than 10 various CNC, ordinary lathe CNC milling machines, and CNC drilling machines; High-pressure injection molding machines, gravity casting machines, vacuum consumable furnaces, punches, forklifts, cranes and many other production equipment; with electric welding machines and automatic welding equipment, it can complete the processing and production of various underground tools.
