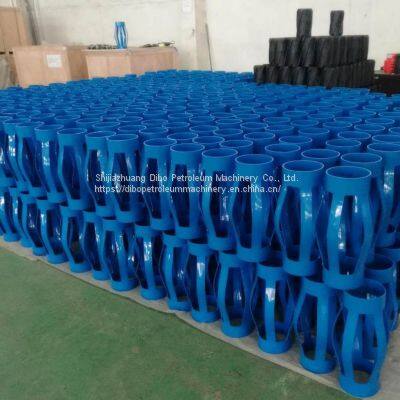

API Slip on Single Piece Spring Casing Centralizer for Oilfield Water Wells

FOB Price

US$ 4.5 - 10.5 / Piece

10 Pieces(Min. Order)

Port Tianjin
Payment TermsT/T L/C PayPal Cash
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type

Oilfield equipment

Product Description

This One-Piece Centralizer has ultra-high strength without any weak point.

The centralizer provides high restoring forces while keeping starting and running forces at or near zero lbf.

This minimizes drags during casing running and maximizes standoff during cementing operations.

Product name	Customized Integral Centralizer For Petroleum Tool
Material	Steel
Size	4-1/2″×6″-13-3/8″×17-1/2″
Applications	1.Horizontal and deviated holes. The minimum starting and running forces are required for casing to reach total depth. 2.The slim and irregular holes. The outstanding flexible bows will make sure it safely pass the under gauged, J-type and S-type holes. 3.Oil reservoir,practical experience and laboratory tests have shown that standoff values of 80-90% are considered adequate for a good cementation, even for horizontal wells, with properly selected Integral centralizers, these values can be achieved at a maximum capacity.

Features

1.The one-piece construction results in a robust centralizer that can withstand immense forces,
remain intact, and never leave debris in the hole.

2.Optimum standoff capability in even the most challenging well conditions.3.At or near zero starting and running forces.
4.Minimal cross-sectional area minimizes flow restrictions and increases equivalent circulating
densities.

Size Information

Specification	Casing size (mm)	Hole Size (mm)	Inner Diameter (mm±2)	Outer Diameter (mm±2)
4-1/2″×6″	114	152	118	152
5-1/2″×8-1/2″	140	216	142	216
7″×8-1/2″	178	216	182	216
9-5/8″×12-1/4″	244	311	249	311
13-3/8″×17-1/2″	340	445	344	445

Packing&Shipping

Packing:polywood case or customized.

Shipping:air/sea shipping (according to goods).

Related Products

Cementing Rubber Plug Cementing Basket

Shijiazhuang DiBo Petroleum Machinery Co., Ltd.

Shijiazhuang Dibo Petroleum Machinery was established in 2015, it was located in Shijiazhuang City, Hebei Province, China. We areprofessional manufacturer of oilfield cementing tools, Our mainly products are casing centralizer, stop collar, etc.

Our factory design and manufacture a range of revolutionary bow spring centralizers which provide unprecedented stand-off: Giving optimum pipe centralization, aiding pipe rotation and easing the string to total depth without issue.
Our casing centralizer have already passed the ISO9001 system certification, and the quality of our product exceed API 10D standard. To guarantee new products R&D, we adopt CAD. UG design and modular design to shorten products developing circle. With electronic universal testing machine. Hardmeter and automatic impact testing machine we could control quality of the raw material and finished products properly.

Our products are widely used in many oilfields and committed to effective and qualified solutions for oilfield down-hole operation.
Welcome to you.

Workshop and equipmentShijiazhuang Dibo Petroleum Machinery Equipment Co., Ltd. has been focusing on the production and processing of petroleum machinery parts since its establishmen, it has injection casting and machining workshops; it has 2 processing centers, more than 10 various CNC, ordinary lathe CNC milling machines, and CNC drilling machines; High-pressure injection molding machines, gravity casting machines, vacuum consumable furnaces, punches, forklifts, cranes and many other production equipment; with electric welding machines and automatic welding equipment, it can complete the processing and production of various underground tools.
ExhibitionAt present, we often join in for China Cippe,Russia exhibition,USA Exhibition ,many customers choice us in these exhibitons. Welcome to your inquiry and cooperation.
Certifications

FAQ

Q1: Are you manufacturer & exporter?
A1: Yes, we are manufacturer & exporter.
Q2: What is your Core Products?
A2: Our Main Product is casing centralizer
Q3: How long is your delivery time?
A3: 15 days to 20 days for normal order, Delivery time depends on order Qty.
Q4: free of cost sample?
A4: Samples are for free. Postage should be paid by customer.
Q5:Do you accept custom products?
A5:Yes, we can make it according to the size of the paper you provide.
