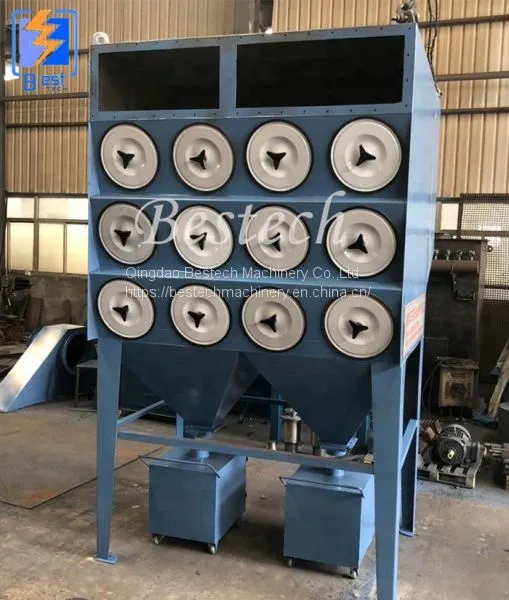

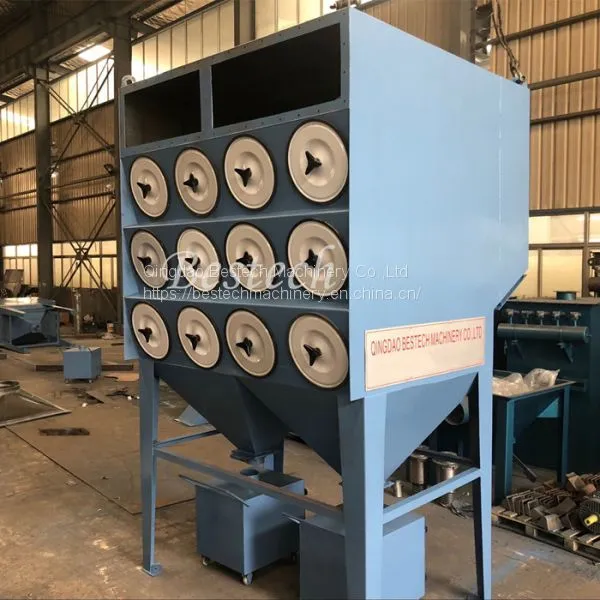

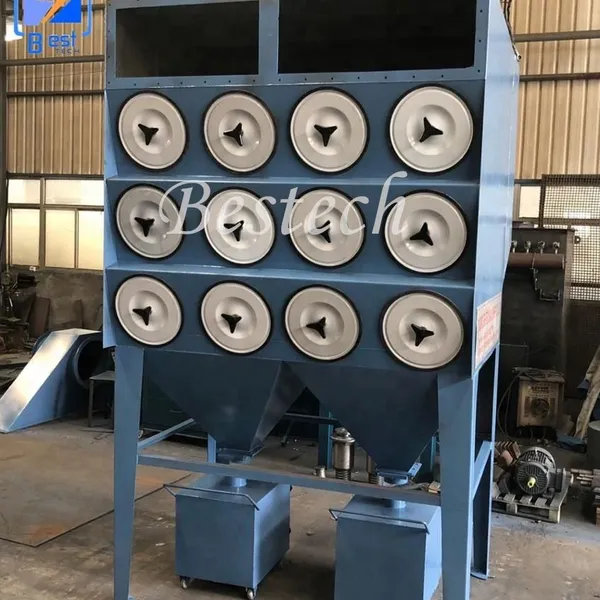

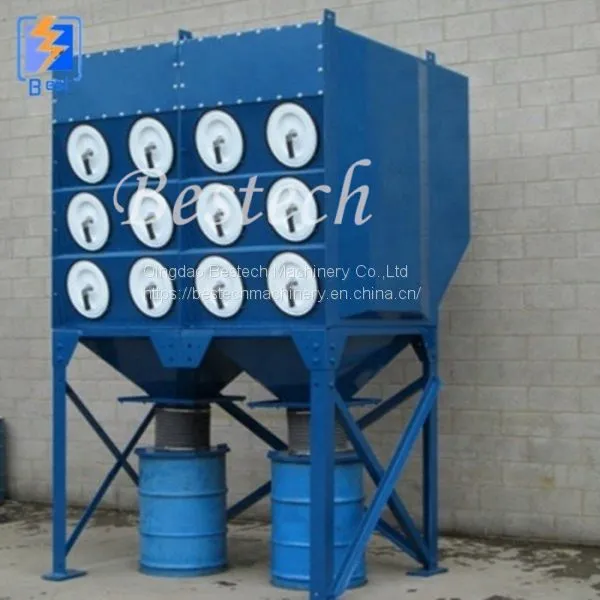

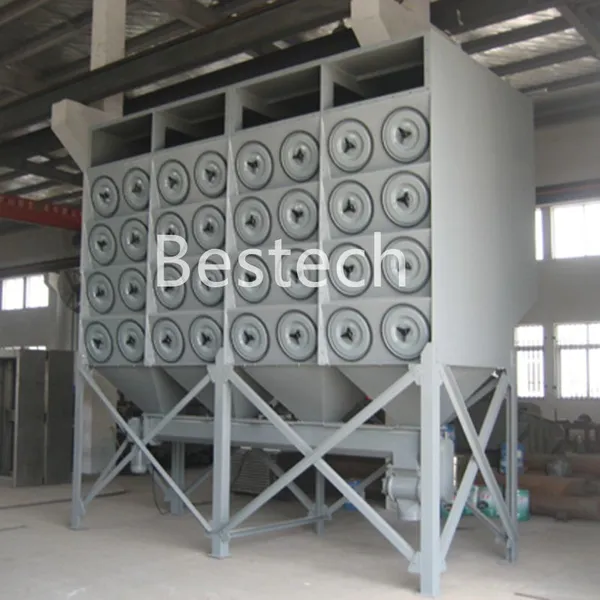

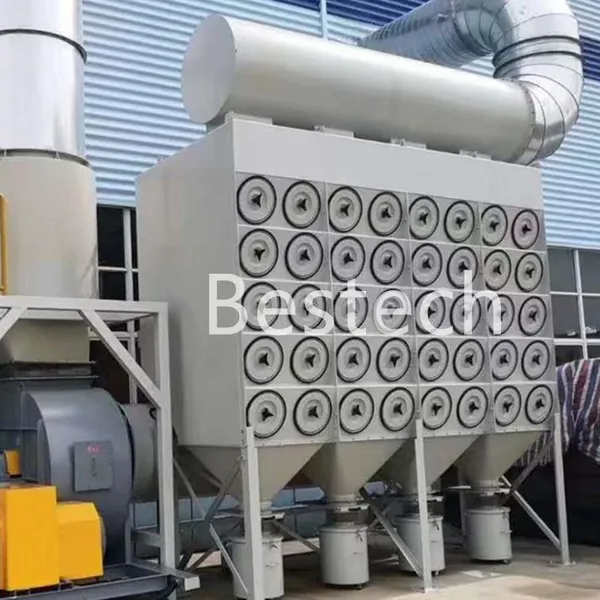

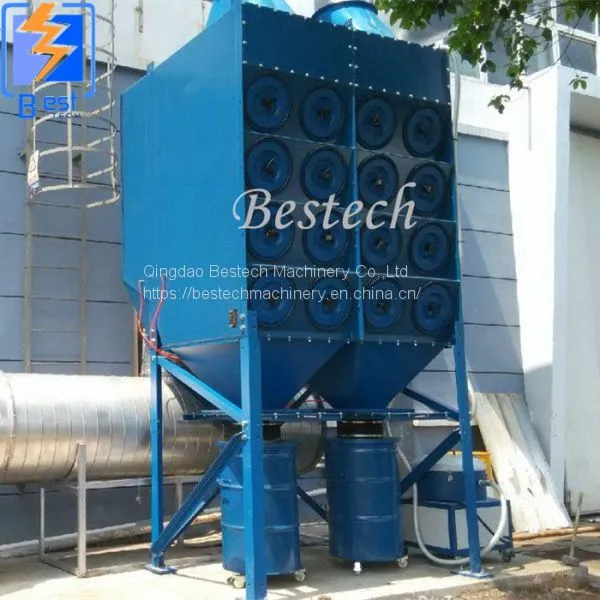

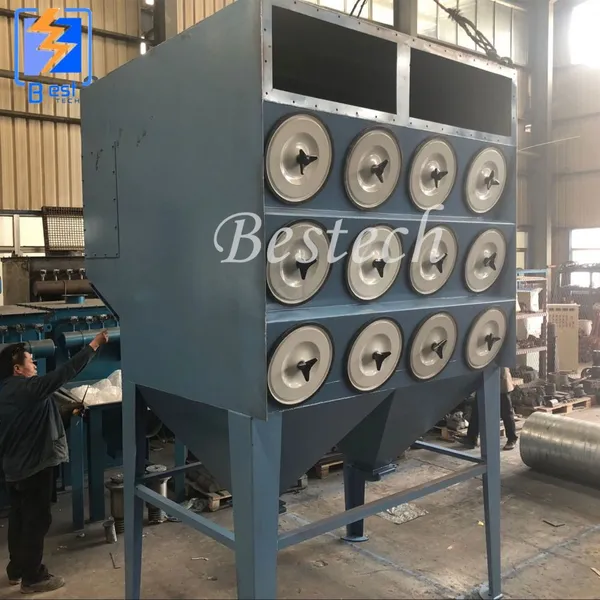

Detailed Description of Cartridge Dust Collector:
The Dust Collector in our environmental protection division total including three categories one hundred and
twenty varieties,absorbed the advanced technology from Germany, Japan, Denmark and other countries,
divided into series of high efficient heavy flow reverse pulse filter cartridge dust collector,the back pulse
jetting bag dust collector, mechanical shaking bag dust collector. Mainly used in workshop, shot blasting
equipment etc.
Cartridge Dust Collector Usage:
The filter dust collect is widely used for steel , food ,refractory material ,Abrasives,mineral ,chemical industry.
Cartridge Dust Collector Features:
1. High efficiency, 99.9% fine dust can be filtered.
2.Save space, compare with the bag dust collector, one filter can replace 7-9 bags, it has large filter area.
3 .The filter can use for longer time, the material of filter is polyester fiber, besides, a dust board is installed the
dust entrance,so that the dust can't impact filter directly.
4.Easy to maintain. Because the filter area is large, it's easy to install and change.
5. There are wheels on the bottom of the dust collector, can move everywhere freely.
6.the surface of box is stoving varnish, looks very nice.
Cartridge Dust Collector Equipment Composition and Structural Characteristics:
The machine constituted by dust chamber, fan, ash hopper, pulse valve, pulse control meter, filter cartridge,
air bag, butterfly valve and so on.
The working principle of Cartridge Dust Collector:
Normal operation: under normal operation, the dust into the air filter, and then through the filter element after
scattered by the guide plate, dust is blocked on the filter element surface, filtered clean air into the clean air
chamber by filter element,then expel it through the outlet pipe.
Filter cartridge deashing: filter element can automatically and discontinuously cleaning soot, at any given time
only a set of filter element cleaning soot,high pressure air from inside to outside through the filter, removed the
dust that adhere on the filter element surface,the dust fall into dust hopper, and then into the ash bucket.
Compressed air pressure is best adjusted to 6 kg/cm27 kg/cm2, satisfy the requirement of soot cleaning
function be the standard value.
technical parameter:
| type | number of cartridge | filtering area(m²) | air volume(m3/h) | cartridge specification | velocity of filtering (m/min) |
| GHR2-8 | 8 | 80 | 3800 | (365-290)*660 | 0.7-1m/min |
| GHR3-12 | 12 | 120 | 5800 | ||
| GHR3-24 | 24 | 240 | 11500 | ||
| GHR4-32 | 32 | 320 | 15400 | ||
| GHR4-48 | 48 | 480 | 23000 | ||
| GHR4-64 | 64 | 640 | 30700 | ||
| GHR4-80 | 80 | 800 | 38400 | ||
| GHR4-96 | 96 | 960 | 46100 | ||
| GHR4-112 | 112 | 1120 | 53800 | ||
| GHR4-128 | 128 | 1280 | 61400 |
