Factory Offer Epoxy Resin Automatic Pressure Gel Hydraulic APG Clamping Machine For Insulators
1. Application:
Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.
2.Fully automatic control system with touch screen, Realize one-button run machine:
- Automatically clamping mold;
- Automatically adjust injection pressure and injection time
- Automatically tilting machine
- Automatically hold pressure and hold pressure time
- Automatically alarm and de-mould
- (install coil and inserts, take products from mold, clean mold by manual)
3.Advantages:
- Reduce work injure
- High efficiency
- Ensure product quality
- Save labor cost, 1 worker can operate 2-4 machines
- Low requirement for workers
- Remote control machine (optional)

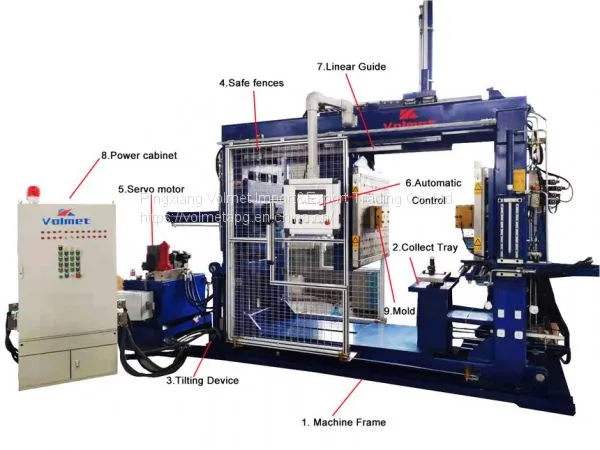

2.Machine introduction:
Machine frame: Tempering and finish machinery →Improve strength,avoid deformation,ensure high precision,avoid mold leakage
Collect Tray → Keep clean,protect lower core.
Tilting device → vertical and horzontal tilting
Safe fences→ avoid work injure
Servo motor→ save energy, low noisy, easy maintance
Full automatic system→ programmable, full automatic.save receipt,remote control
linear guide →ensure clamping stability
Power cabinet→
-
APG Mold →Volmet supply mold and technique training overseas.turn key project.
