High Quality APG Clamping Machine For CT PT Transformer Epoxy Hydraulic Molding Machine

US$ 30000 - 50000 MOQ: 1 Set

Key Specifications

Business Type:

Trading Company

Year Established:

2018

Product Certifications:

ISO9001

Pingxiang Volmet Import&Export Trading Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai,Qingdao and other ports

Delivery Detail:

30 days

High Quality APG Clamping Machine For CT PT Transformer Epoxy Hydraulic Molding Machine

1.AVOL-1010 Fully Automatic APG clamping machine：

1. Application:

Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.

2.Fully automatic control system with touch screen, Realize one-button run machine:

- Automatically clamping mold;

- Automatically adjust injection pressure and injection time

- Automatically tilting machine

- Automatically hold pressure and hold pressure time

- Automatically alarm and de-mould

- (install coil and inserts, take products from mold, clean mold by manual)

3.Advantages:

- Reduce work injure

- High efficiency

- Ensure product quality

- Save labor cost, 1 worker can operate 2-4 machines

- Low requirement for workers

- Remote control machine (optional)

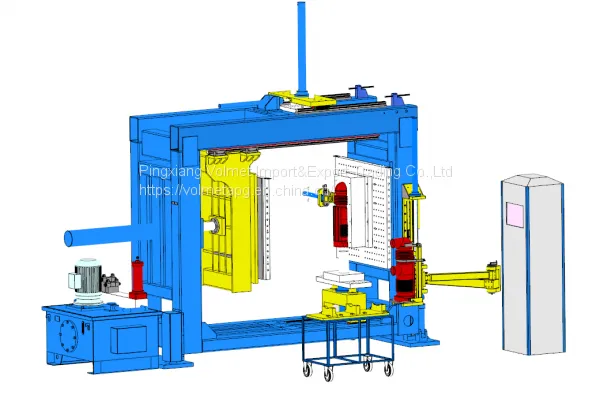

2.Machine introduction:

Machine frame: Tempering and finish machinery →Improve strength,avoid deformation,ensure high precision,avoid mold leakage
Collect Tray → Keep clean,protect lower core.
Tilting device → vertical and horzontal tilting
Safe fences→ avoid work injure
Servo motor→ save energy, low noisy, easy maintance
Full automatic system→ programmable, full automatic.save receipt,remote control
linear guide →ensure clamping stability
Power cabinet→
APG Mold →Volmet supply mold and technique training overseas.turn key project.

3.Technical Datas:

Model No.	AVOL-865	AVOL-885	AVOL-1010	AVOL-1210
Clamping plate size	800X600mm	800*800mm	800*1000mm	800*1200mm
Clamping force	250KN	250KN	400KN	400KN
Clamping close speed	3.1m/min	3.1m/min	2.7m/min	2.7m/min
Clamping open speed	4.8m/min	4.8m/min	3.1m/min	3.1m/min
clamping plate distance	150-1200mm	200-1500mm	200-1600mm	200-1600mm
Heating power	12KW	20KW	24KW	24KW
Hydraulic power	5.5KW	5.5KW	5.5KW	5.5KW
Tilting degree	7° X axis,Y axis tilting optional
Machine size	37509702570mm	450010203730mm	480512204260mm	480512204260mm
Machine weight	4300KG	5350KG	7700KG	7700KG
