ASTM F392 Gelbo Flex Durability Tester Flex Durability Tester CELL INSTRUMENTS
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cell Instruments
Place of Origin:
China
Model Number:
GFT-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
3 days
Related Products
-
ASTM F392 Flex Durability Tester Gelbo Flex Durability TesterNegotiableMOQ: 1 Set -
Flex Durability Tester ASTM F392 Gelbo Flex Durability TesterNegotiableMOQ: 1 Set
-
Mechanical Scanning Method Thickness Tester for Lab Use Plastic Film Thickness High Accuracy GaugeUS$ 3000 - 6000MOQ: 1 Set
-
Film Free Shrink Tester Fluid Medium Shrinkage Rate Tester ASTM D2732.US$ 3000 - 5000MOQ: 1 Set
-
Plastic Film Tensile and Elongation Tester ASTM D882US$ 4000 - 6000MOQ: 1 Set
Brand Name
Cell Instruments
Place of Origin
China
Model Number
GFT-01
Power
Electronic
Usage
Plastic Testing Machine

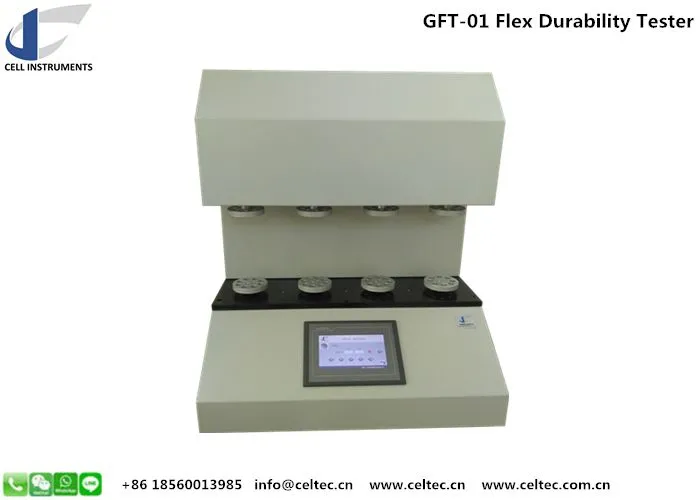

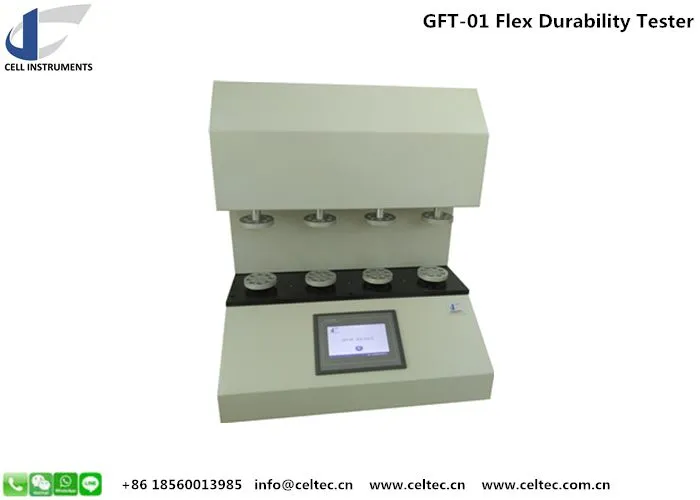

ASTM F392 Gelbo Flex Durability Tester measures the resistance against repetitive strain for films, composites and coating films, etc. Flex failure is determined by measuring the pinholes formed in the sample structure. It is also called Gelboflex tester.
ASTM F392 Gelbo Flex Durability Tester has below technical features
● PLC control and 7 inch touch screen operation
● 5 standard test modes and 4 test stations
● Long and short stroke fast switching
● Condition A,B,C,D and E can be chosen
● Micro printer
● Could realize test frequency random setting
| Flex Frequency | 45 /minute |
| Horizontal Str oke | 155 mm or 80 mm |
| Stations | 4 |
| Flex Angle | 440° (90 mm) or 400° (80 mm) |
| Sample Size | 280 mm x 200 mm |
