4Ohm Bone Conduction Transducer 2W Bone Conducting Speaker

4Ohm Bone Conduction Transducer 2W Bone Conducting Speaker thumbnail-1
4Ohm Bone Conduction Transducer 2W Bone Conducting Speaker thumbnail-2
4Ohm Bone Conduction Transducer 2W Bone Conducting Speaker photo-1

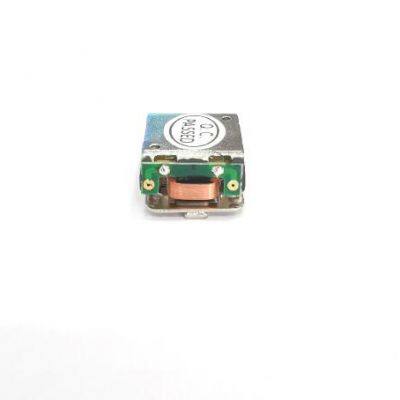

4Ohm Bone Conduction Transducer 2W Bone Conducting Speaker photo-2
US$ 5.5 - 6 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
RC-BC01
Type:
Passive
Contact Supplier Request Quote Chat Now
Recon Electronic Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
21 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number RC-BC01
Type Passive
Use Other, Headphone
Special Feature Mini, Portable, Wireless
Channels 1

4Ohm Bone Conduction Transducer 2W Bone Conducting Speaker


Parameter

Our Model No.

RC-BC01

Product  Model No:

Customer

Customer’s Model No :

Specs

4Ω 1W

1

 Applicable  Scope

1.1

Type

 permanent-magnet  dynamic  loudspeaker

1.2

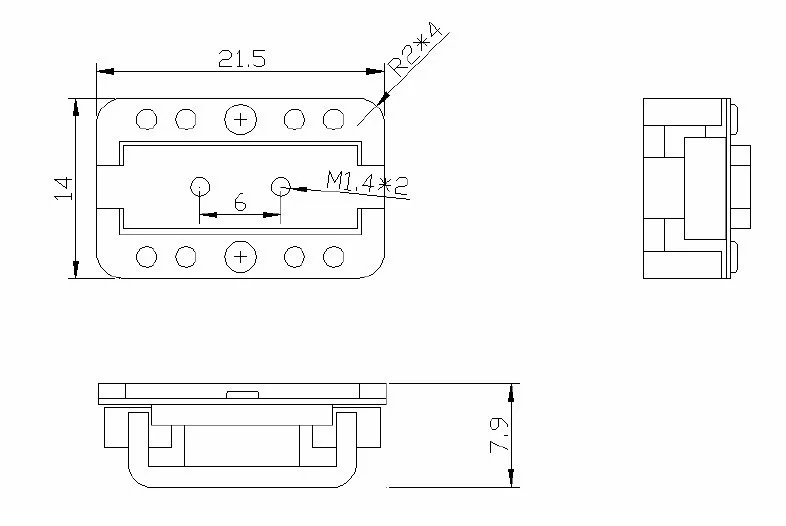

 Dimensions

21.5 * 8 * 14 mm

1.3

  Power

Nominal input 1W,  Maximum input 3W

2.1

Average working voltage

3.7 V

2.2

Operating voltage(max)

12 V

3

 Electrical   specification

3.1

Nominal Impedance

4Ω±15%  test  @200Hz  3.7 v

3.2

Frequency

300-19000Hz

3.3

Sound pressure level

                   88db @1kHz

3.4

Current consumption(Max)

600MA

3.5

Average working current

100MA

3.6

Distortion

5% less

3.7

Operation temperature

-20 ° C ~ +60 ° C

3.8

Storage temperature

-30 ° C ~ +60 ° C

4

Reliability

4.1

Load    Test

Must be normal after load test :pink noise    1W    96 hours

4.2

Heat  Test

Must be normal after 70±2℃ and relative humidity 20-25% 16hours and then room temperature 1hour.

4.3

Cold  Test

Must be normal -25±3℃ and relative humidity    -    %  16hours and then room temperature 1 hour

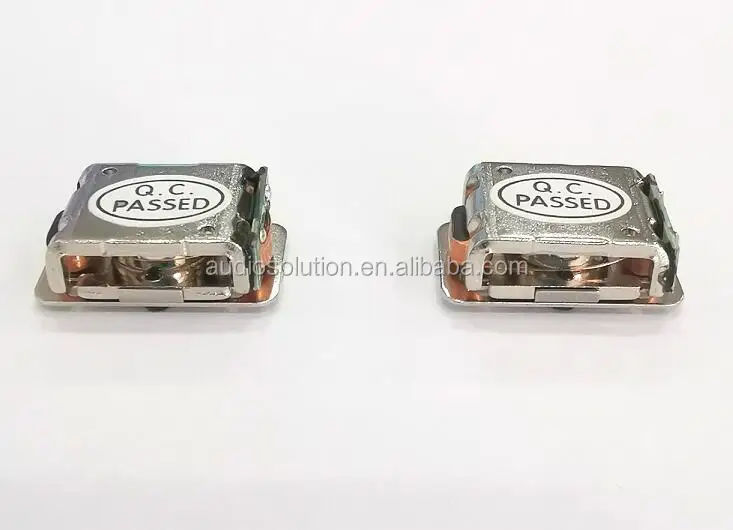

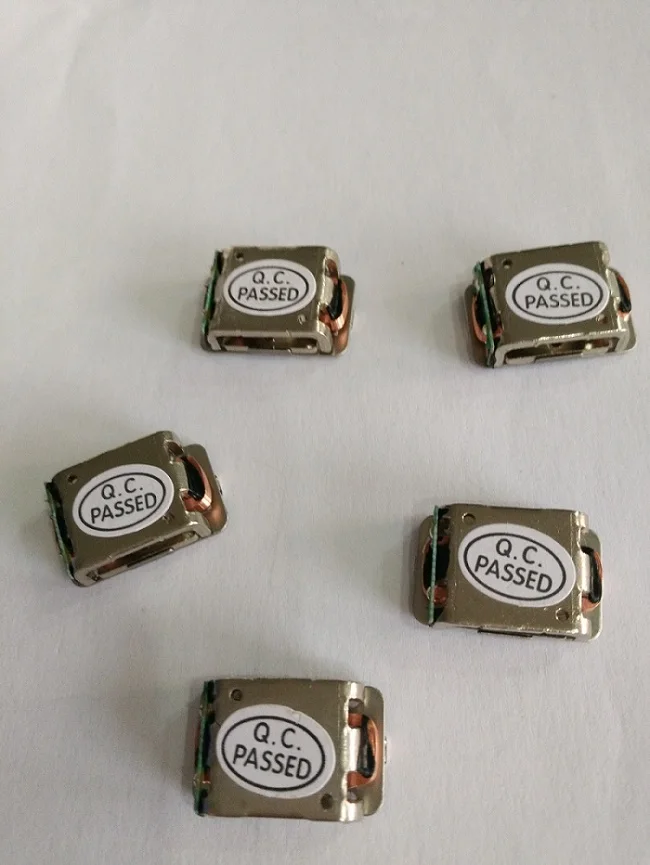

Product Show
