Hyperion Optics is a premium supplier of photonics products including optical components, lens systems, and opto-mechanical assemblies from UV, VIS, NIR, to SWIR applications. We specialize in optical assembly manufacturing, hyp design, optical design manufacturing from rapid prototyping to volume production. Our comprehensive metrology coupled with cost-effective philosophy can help Hyperion customers obtain a competitive edge in the global market.

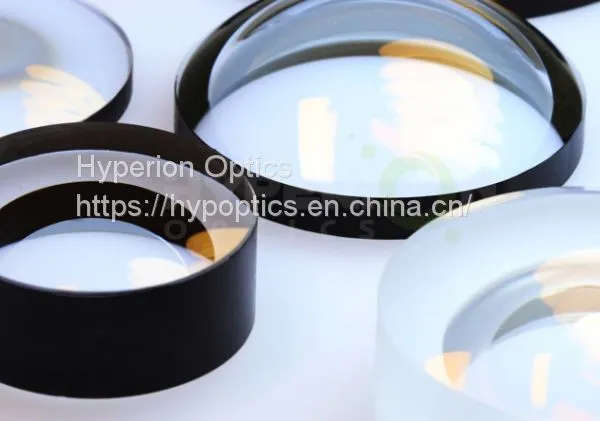

Singlet lens is a lens consisting of a pure single element, which can be considered as the fundamental element of developing optical systems. Based on optical engineers’ design, multiple singlet lenses might be utilized within an optical system with other optics.
As the basic optical element, singlet lenses are commonly used in engineers’ design, and further assembly works for a variety of applications such as imaging collimating. At Hyperion Optics, our manufacturing capability covers Plano Concave/Convex, Bi-Concave, Bi-Convex, Positive and Negative Meniscus, ranged from many variations of optical glass and fused silica and even crystal. With our reliable coating technique, AR or V-coatings can be applied to reach expectation. Special treatment i.e. edge blackening / special packaging / labeling also available upon request.
Our singlet lenses production competency helps our customers to build their unique and cutting edge applications such as microscopy device, diameter 2.5mm~3.5mm design, for projection/ observation applications, we can deliver 180+mm in diameter singlet lens. Besides regular visible spectrum singlet lenses, NIR / SWIR/ / LWIR/ MWIR/ / BK7 Lenses are also available at our facility, please refer to our IR optics for more information.
|
FACTORY STANDARD |
PRECISION GRADE |
|
Diameter Tolerance(mm) |
±0.05 |
±0.03 |
±0.0125 |
Center Thickness(mm) |
±0.01 |
±0.03 |
±0.025 |
Radius (%) |
±1% |
±0.5% |
±0.3% |
Focal Length Tolerance (%) |
±3% |
±1% |
±0.5% |
Cosmetic(MIL-C-13830A) |
100-80 |
40-20 |
10-5 |
Figure Tolerance in λ(Pow/irreg) |
3 - 1 |
2 - 1/4 |
1 - 1/10 |
Centration (Arc min) |
6 |
||
Dia. To Thick Ratio |
9~50:1 |
||
Coating (T% avg) |
96-98% |
99% |
99.5% |
Materials |
CDGM, Ohara, Schott & Infrared Materials |
||
SINGLET LENSES
Configurations available:
Plano-Convex, Plano-Concave, Bi-Concave, Bi-Convex, Positive and Negative Meniscus
