Hyperion Optics is a premium supplier of photonics products including optical components, lens systems, and opto-mechanical assemblies from UV, VIS, NIR, to SWIR applications. We specialize in optical assembly manufacturing, hyp design, optical design manufacturing from rapid prototyping to volume production. Our comprehensive metrology coupled with cost-effective philosophy can help Hyperion customers obtain a competitive edge in the global market.

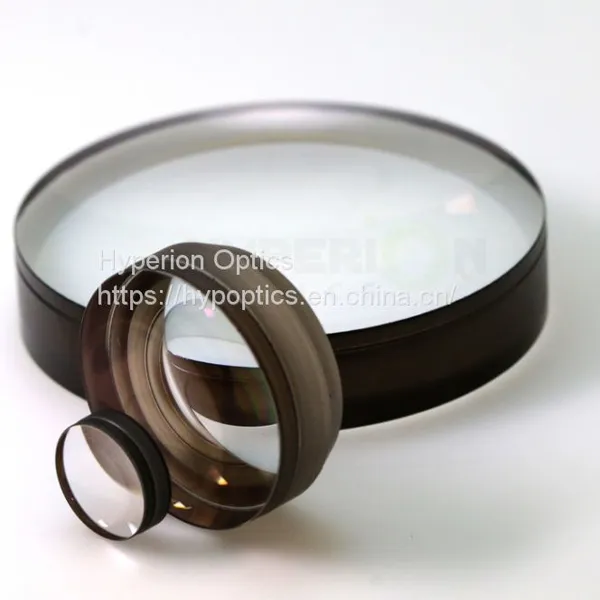

At Hyperion Optics, with decades fabrication experiences, we have been providing our customer a vast number of achromatic lenses for their applications in different precision grades, please check ourtest plate radius available online for download to save your cost on custom achromatic doublet lenses optical design. Particularly for cost-sensitive design, our series production capability always ensures a satisfying pricing solution.
As optical designers widely use doublets which contribute latitude to eliminate chromatic and spherical aberrations more thoroughly. We also provide excellent suggestions for glass material selection in individual design as we distinguish the importance of refractive index precision in material selection stage despite the design data in software.
Universally, with particular flint glass designers might choose, certain glass’ deliquescence attribute lead to cosmetic failure after polishing, or even affect the transmission after coating. Let us help to avoid such problem in your design to live process.
|
FACTORY STANDARD |
PRECISION GRADE |
|
Diameter Tolerance(mm) |
±0.05 |
±0.03 |
±0.0125 |
Center Thickness(mm) |
±0.1 |
±0.03 |
±0.025 |
Radius (%) |
±1% |
±0.5% |
±0.3% |
Focal Length Tolerance (%) |
±3% |
±1% |
±0.5% |
Cosmetic(MIL-C-13830A) |
100-80 |
40-20 |
10-5 |
Figure Tolerance in λ(Pow/irreg) |
3 - 1 |
2 - 1/4 |
1 - 1/10 |
Centration (Arc min) |
6 |
||
Dia. To Thick Ratio |
9~50:1 |
||
Coating (T% avg) |
96-98% |
99% |
99.5% |
Materials |
|||
For extremely precision sensitive system requirement, please contact us for further information, our engineers are more than happy to evaluate your design and have our experiences of manufacturing input help to define the most appropriate tolerances.
