Double Seam Projector
US$ 10000 - 50000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Usage:
Metal Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu, Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
After-sales Service Provided
Engineers available to service machinery overseas
Usage
Metal Forming Machine
Condition
New

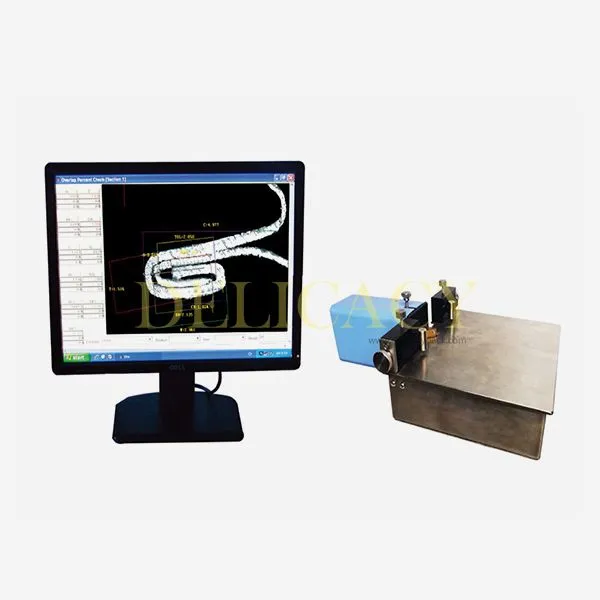

Electronic Double Seam Projector is a dedicated instrument for three-rate measurement of a can seam structure.
Measurement of Dimensions of Can Seam Structure: seam width W; seam thickness T; body hook length BH; cover hook length CH;countersink depth C; overlap length OL; overlap length percent OL%; cover hook butting CB%; body hook butting BB%; Tightness Rate TR%; juncture cover hook integrity JR%, among which the OL%,CB%,BB%,TR% and JR% are calculated by the computer automatically. The measured data will be entered into the table and marked by the side of the image synchronously. The computer identifies automatically if the measured result is in conformity with the criterion. Storage. Output. Mathematical analysis. The program CD and softdog are supplied, which not only facilitate maintenance of the program, but is beneficial to enhancement of keeping confidential of the data as well. Metric and English unit system conversion can be accomplished; in addition, the English edition operating program can be supplied upon request of the client.
Major Technical Specifications
Magnification: 54x-40x
Measuring accuracy: 0.7%
Horizontal viewing field: 6mm-8mm
Diameter of can to be tested: 30mm〜300mm
Display resolution: 0.001mm
Power： 220V/50Hz
Display resolution: 0.001mm
Power： 220V/50Hz
Electronic Seam Double Projector Type:
1 .DE 1 Type(A1.2) Precision electronic line segment test system
2 .DE 2 Type 8+2 point test system
3 .DE A Type Automatic search point a key test system
