Bucket wheel excavators use VLU 200744 slewing ball bearing 848x634x56mm
- 3000 Piece / Pieces per Month
- SHANGHAI
- T/T
- 30 days
You May Like
-
Conveyor booms machine use VLU 200844 ball bearing 948x734x56mm without teeth
-
Bucket wheel excavators use VLU 200944 bearing 1048x834x56mm without teeth
-
Slewing ball ring VLU 201094 1198x984x56mm for material handle machine
-
twin-screw extruder feed machine gearbox use M3CT2990 bearing factory 28x90x98mm
-
food extruder multi-stage bearings M3CT3073 stock 30x73x89mm for gearbox
-
Thrust roller Bearings for plastic extruder gearbox M3CT3278 price 32x78x84mm
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | VLU 200844 | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 848, | |
| Bore Size | 634, | Gear Options | Nongeared |
Product Description

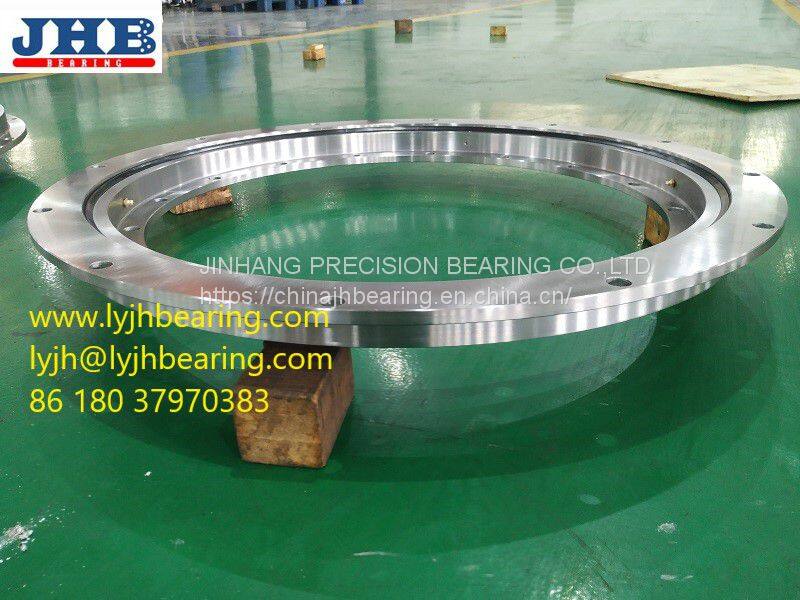

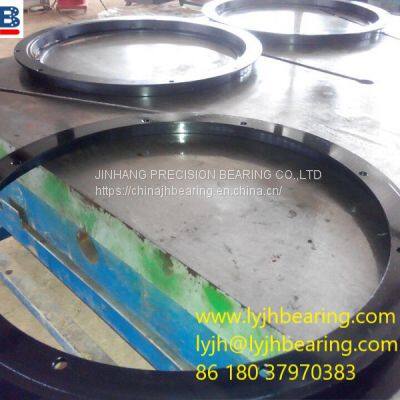

Bucket wheel excavators use VLU 200744 slewing ball bearing 848x634x56mm
VLU 200744 slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:848mm,Inner diameter:634mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description | VLU 200744 slewing ball bearing |
Dimension(ODXIDXH) | 848x634 x56mm |
Outer diameter(OD) | 848 mm |
Inner diameter(ID) | 634 mm |
Width/Height/(H) | 56 mm |
weight | 42.5kgs |
Material | 42CrMo, 50Mn |
Rolling | LYC ball |
Package | Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time | 20-30 days |
Service | Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
