0625 coin vibrating motor long life 6mm flat mini BLDC vibration motor for bracelet and for wearable device

Name: 0625 coin vibrating motor long life 6mm flat mini BLDC vibration motor for bracelet and for wearable device
Brand: kegumotor
Price: USD $1.6 - 5.5 / Piece

FOB Price

USD $1.6 - $5.5 / Piece

1 Piece(Min.Order)

Supply Ability 50000000 Piece / Pieces per Month
Port shenzhen/hongkong
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	kegumotor	Place of Origin:	China	Model Number:	KG-0625
Type:	Micro Motor	Certification:	CCC, CE, ROHS	Torque:	5g.cm
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction:	Permanent Magnet	Efficiency:	IE 1
Protect Feature:	Explosion-proof	Voltage(V):	3	Output Power:	0.01
Continuous Current(A):	0.01	Speed(RPM):	20000	Commutation:	Brush

Product Description

6mm 3.0v mini brush 6mm flat mini BLDC vibration motor 0.5W for home appliance

0625 6mm coreless dc 3.0v electric motor for bracelet and for wearable device

Volt	2v
No Load Speed	20000rpm
Rated Speed	18000rpm
Rated Torque	1g.cm
Application	Robot , door lock , toy, cabinet lock, home appliance,vacuum cleaner

SPECIFICATION:

1. Voltage: DC 2V
2. No load speed: 20000±10%rpm
3. No load current: 0.01A
4. Diameter 4mm, length 8mm, shaft dia 1mm
5. Material: plastic gear and metal DC motor
6. Weight: 200g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)

Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque

* Low Noise

* Longer life time up to 200,000 times unlock

Working life	2 Hours	Voltage	DC 2V
No-load Current	0.01A	No-load Speed	20000 rpm
Load Current	0.02A	Load Speed	18068 rpm
Power	0.01 w	Load Torque	1 g.cm
Stall Current	0.09A	sall Torque	5g.cm
Warranty	1 year	MOQ	1000 pcs
Model Number	0820 8mm x 20 mm Flat Vibration Mini Coin Motor	Price	USD 0.7-0.9
Application	mobile phone	Port	Shenzhen

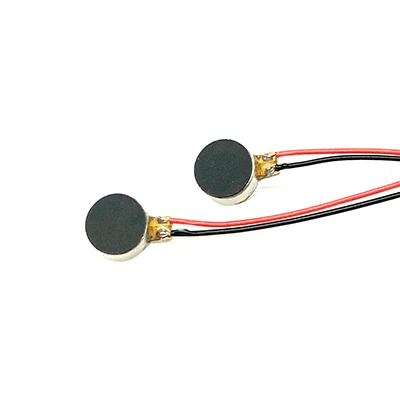

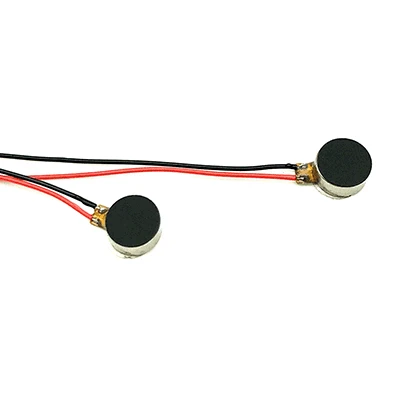

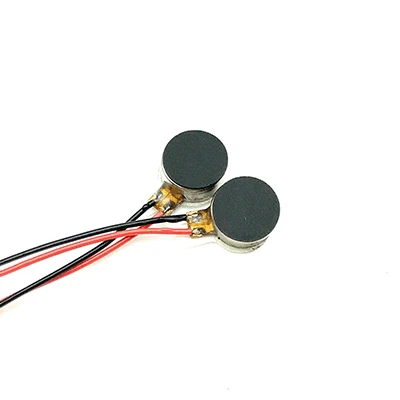

Detailed Images

Size Information

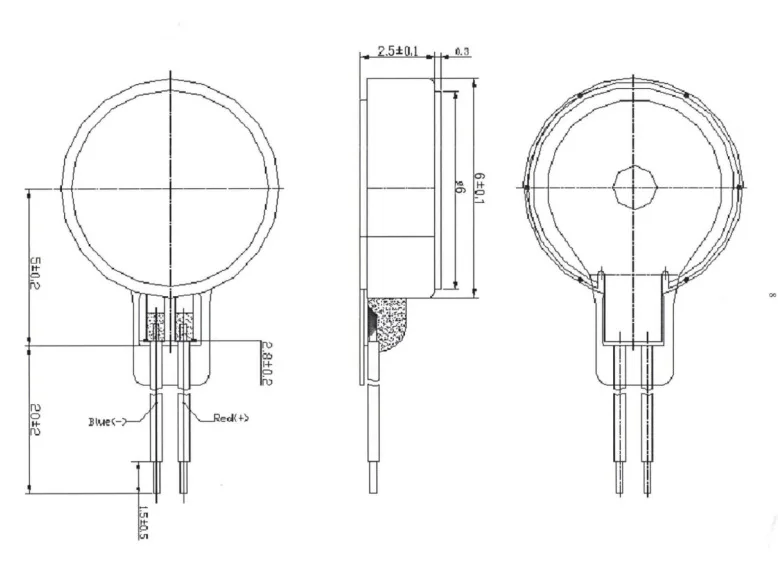

Drawing of 6mm flat mini BLDC vibration motor

0625 6mm flat mini BLDC vibration motor description 6MM micro coreless dc motor Brand Kegumotor
Item 6mm coreless motor Location Shenzhen Model 0625 Load current 27mA Load power 0.01w Load volt 1.5V Size Φ 6mm*2.5mm Load speed 9800RPM
Load Torque 0.4G.cm Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 1.5-4.2V
0625 6mm flat mini BLDC vibration motor outline

Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
