NUGENT 30-150-207-H-9 Diatomite Filter Element for Power Plant EH System Deacidification Treatment

NUGENT 30-150-207-H-9 diatomite filter element for power plant EH system deacidification treatment

1. Description: Diatomaceous earth filter is the core filter element used in the power plant EH oil system. It is mainly used to modify the EH oil and remove acid, so as to improve the oil quality of the fire-resistant oil system in an all-round way.

The filter elements of the regeneration unit (which are divided into filter elements for reducing the acidity of EH oil and filter elements for intercepting impurities, among which the filter elements for reducing the acidity value are more economical and economical diatomite filter elements, ion filter elements with good performance, and alumina filter elements with good acid and water removal effect) are divided into regenerated diatomite filter elements, regenerated cellulose filter elements and ion exchange resin filter. Core, etc. are mainly used to improve the physical and chemical properties of fire-resistant oil.

2.Technical parameters:

Diatomite filter element 30-150-207-H-9 deacidification filter element replacing imported filter element in power plant

Main models: diatomite filter element 30-150-207, 30-150-202, 30-150-209, 30-150-219, dl003001, c9509000

After treatment, the quality of oil is high, and the acid value can reach below 0.03 mgKOH / g. the treatment effect is particularly good. After the oil system is put into operation, the acid value of the oil system drops rapidly, and the ISO standard (≤ 0.10 mgKOH / g) can be ensured.

30-150-207 diatomite filter has strong adsorption capacity to replace imported filter. The adsorption capacity of the new adsorbent is more than three times that of diatomite.

The 30-150-207 diatomite filter element replaces the imported filter element, which does not contain metal impurity particles, and the adsorbent has a certain adsorption effect on metal ions in oil.

The 30-150-207 diatomite filter element is a new type of adsorbent instead of the imported filter element, which is easy to replace and has low operation cost.

Composition of fire-resistant oil regeneration device: diatomite filter and corrugated fiber filter, operation conditions: acid value > 0.08 (it is recommended to operate 8 hours per week) replacement: 1. The oil temperature of any filter is between 43 ~ 54 ℃, and the oil pressure in the cylinder is up to 0.21mpa, so the filter element should be replaced. 2. The diatomite filter element should be replaced after 48 hours of operation of the regeneration unit, the flame-retardant oleic acid value does not decrease or after six months of continuous use（ Before replacement, it is recommended to dry in 120 ℃ oven for 8 hours or 110 ℃ oven for 12 hours, cool in the oven to 20 ~ 30 ℃, and put it into the filter cylinder immediately

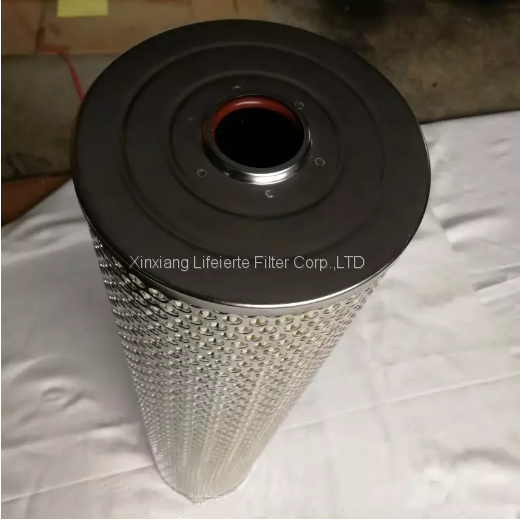

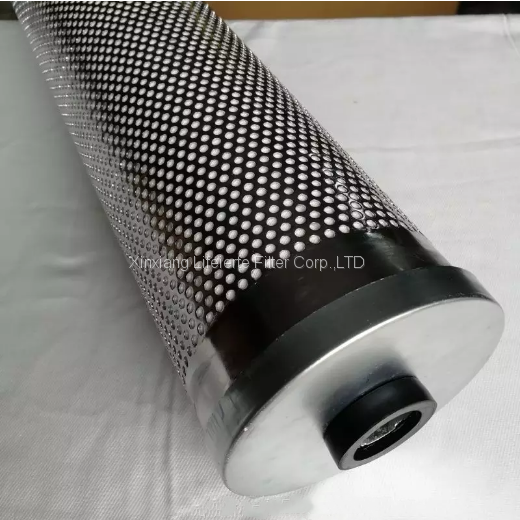

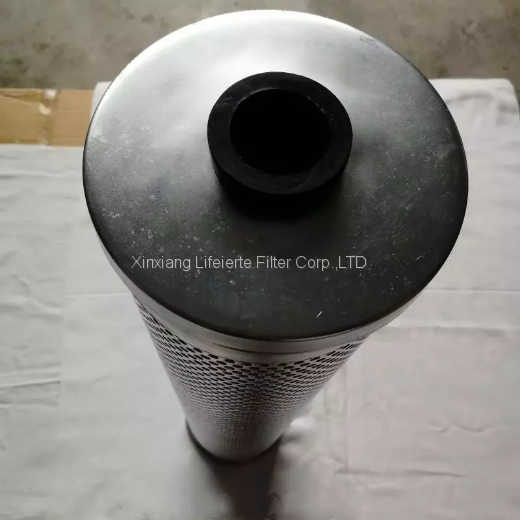

Other Model Photo
