Water Bag Filter Housing Manufacturers Stainless Steel Bag Filter for Water Pre Treatment

water bag filter housing manufacturers stainless steel bag filter for water pre treatment

Brief Introduction

Bag filter is a kind of multipurpose filtration equipment that is of novel- structure, small volume, convenient operation, energy saving, high efficiency and strong adaptability and it works in a closed environment.

The filter is a kind of pressure type filtering device, and the liquid flow from the filter casing side entrance tube into the bag. The bag itself is fixed in the reinforcing net. Qualified filtrate can be acquired when the liquid penetrates the required fineness grade bag and the impurity particles will be captured. It is very convenient to replace the filter bag with only a little bit material consumption.

Bag filter is made of high- quality stainless steel. The surface is processed by means of mirror polishing, matt or grit blasting. Bag filter is a new filtering system and a kind of professional liquid filtering equipment. The filtering bag is supported by metal basket in the filter. The liquid firstly flows into the bag from the entrance and outflows from the exit after filtered by the bag. Impurities are intercepted into the bag, which will effectively remove particles of different sizes, so as to achieve the goal of liquid filtration, purification, separation and recovery. Thus it can reuse after replacing or cleaning the bag. It is a kind of multifunction filtering equipment with novel structure, small volume, simple and flexible operation, saving energy, high efficiency, enclosed operation and strong applicability.

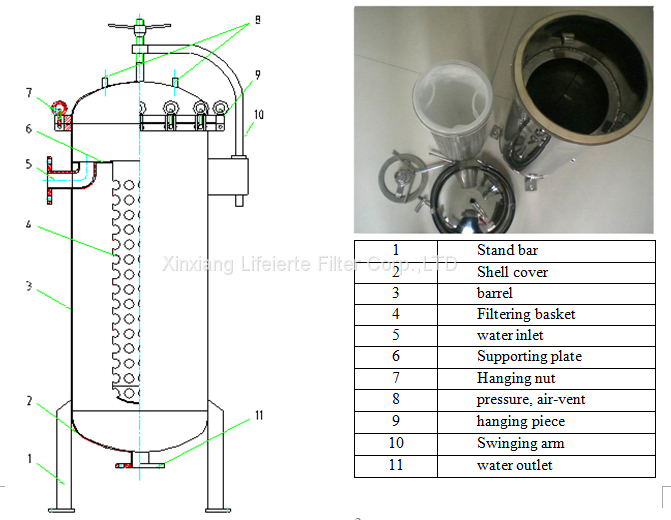

Product Structure

Technical Parameters

1. Housing material: stainless steel 304，316L

2. Diameter of the housing:  Φ167 ~Φ1000mm

3. Height of the housing: 410 ~ 1500mm

4. Reference flow rate : 10T/h ~ 300T/h

5. Working pressure: 1.0Mpa

6. Quantity of the bags: 1 ~ 10 branch

7. Interface modes: clamp type, flange type (common flange, a movable flange)

Model Table

Functions and Characteristics

1. Slight probability of side leakage of filter bag which effectively guarantee the filtering quality.

2. Bag filter can bear greater working pressure with less pressure loss, lower operation cost and obvious energy- saving effect.

3. Filtering accuracy of filter bag is increasing continuously, which has reached 0.5 u m at present.

4. Bag filtering is featured with large-processing capacity, small volume and large amount of contaminant.

5 Based on the working principle and structure of bag filter, it is convenient and rapid to replace the filter bag. The filter is no-clean as well as labor saving and time saving. Filter bag can be reused after cleaning which can save cost. It is widely used and flexible, and can be installed in various ways.

Application Range

Paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating liquid, milk, mineral water, hot solvent, latex, industrial water, syrup, resin, printing ink, industrial waste water, fruit juice, edible oil, wax etc.
