Product Description

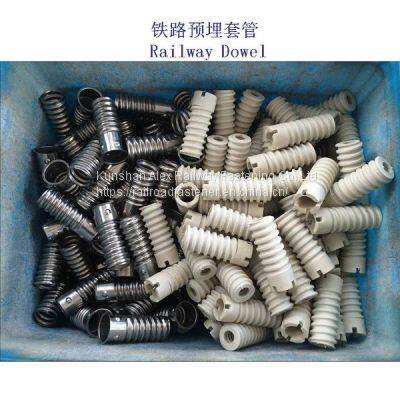

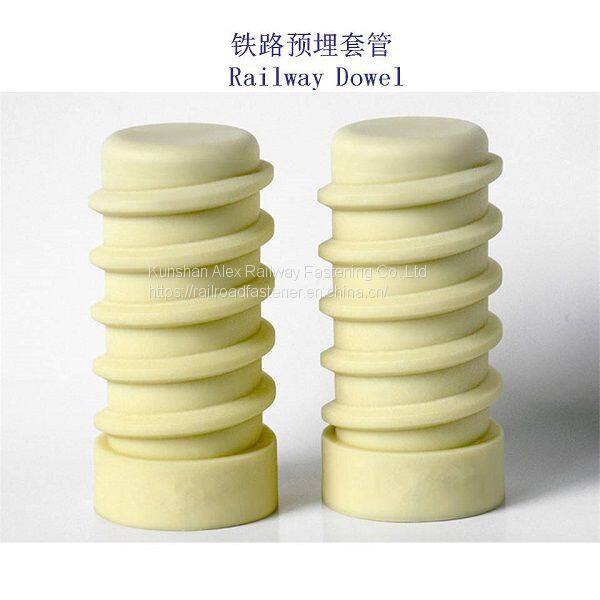

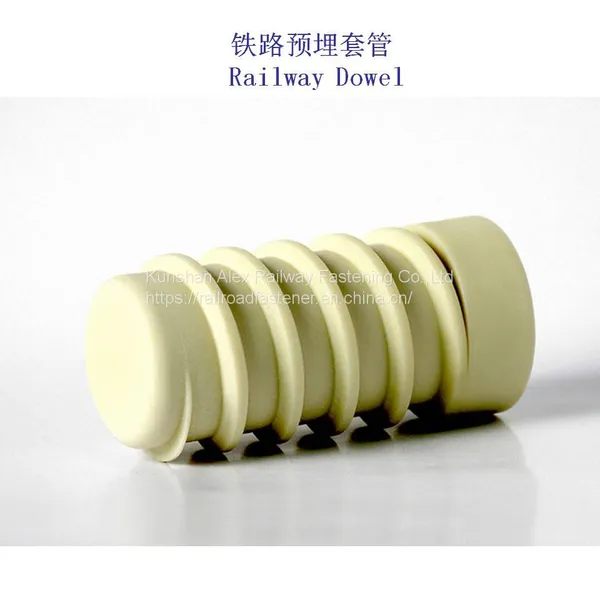

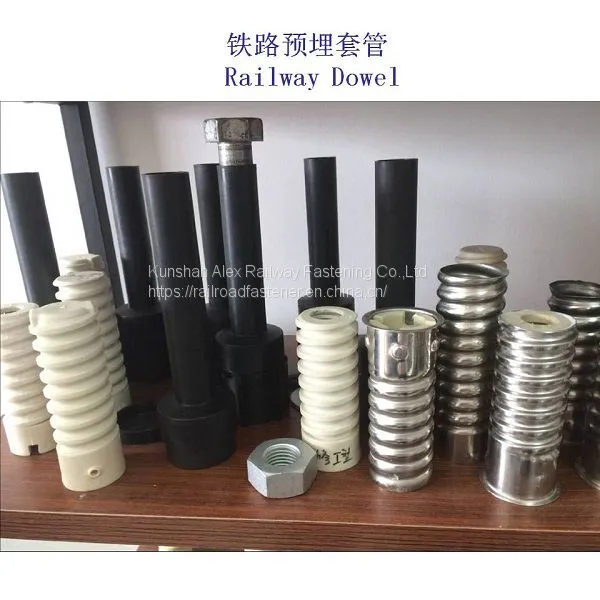

1.Product Name: Plastic dowels
The plastic dowel can be considered as the fastening foundation, as it needs to be pre-inserted into the concrete sleeper separately before assembling the rail fastening system parts. It is used to guarantee the good connection and linkage of the rail fastening system with the concrete sleeper, with screw spikes or bolts.
On the other hand, similarly as the rail pad or rail insulators, the plastic insert’s another function is to insulate the fastener parts from the ties. Therefore, the quality of this small pre-inserted part into the concrete sleeper, especially its strength and fatigue life, is of great importance to the whole rail line.
2.Standard: TB/GB/UIC and other standard or drawings required by clients.
3.Materials: Reinforced Nylon 66 (PA66: Nylon 66.69%, glass fiber 30%, other 1%)
4.Technical Specifications
Density:1.3-1.45g/cm3
Tensile strength: ≥170Mpa
Elongation: ≤4.4%
Bending Strength: ≥250Mpa
Impact Strength(No gap): ≥80KJ/m2
Melting point:250-270°C
Insulation resistance:≥1×108Ω
Glass fiber content:30-35%
Hardness:≥110HRR

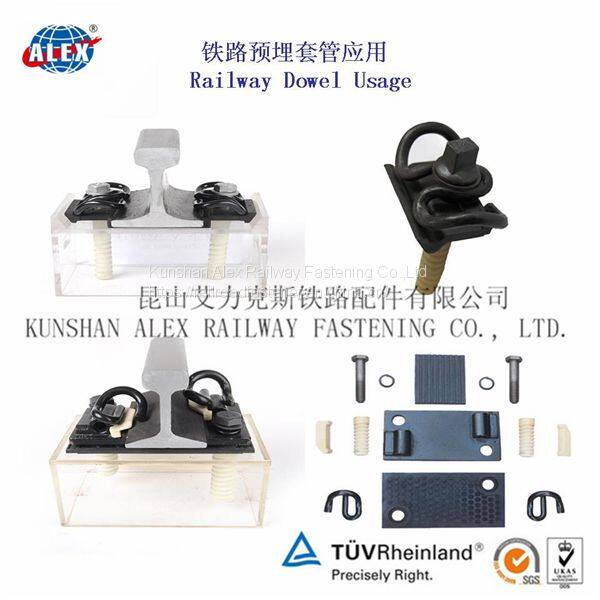

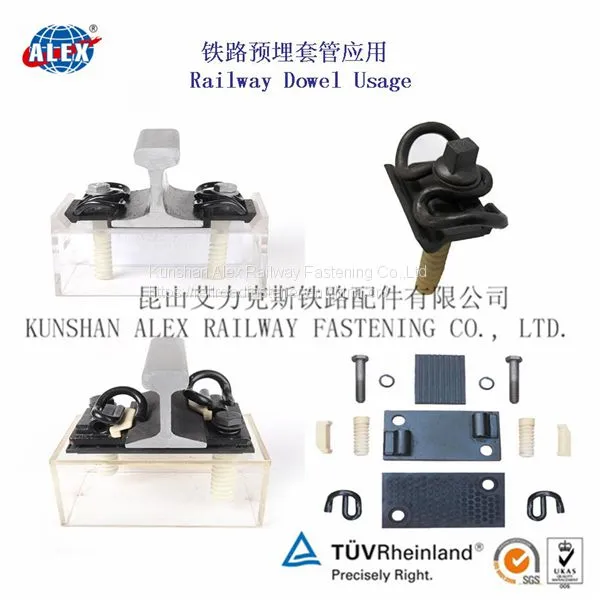

5.Application: Concrete sleeper
6. Color: Yellow, black, white, blue, green, etc

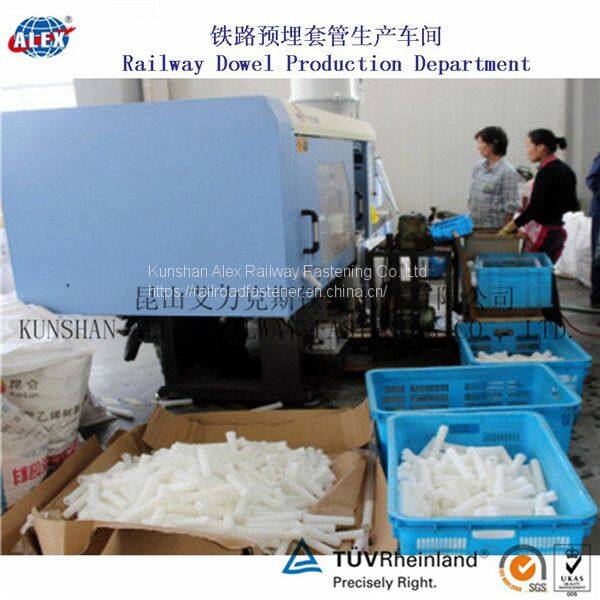

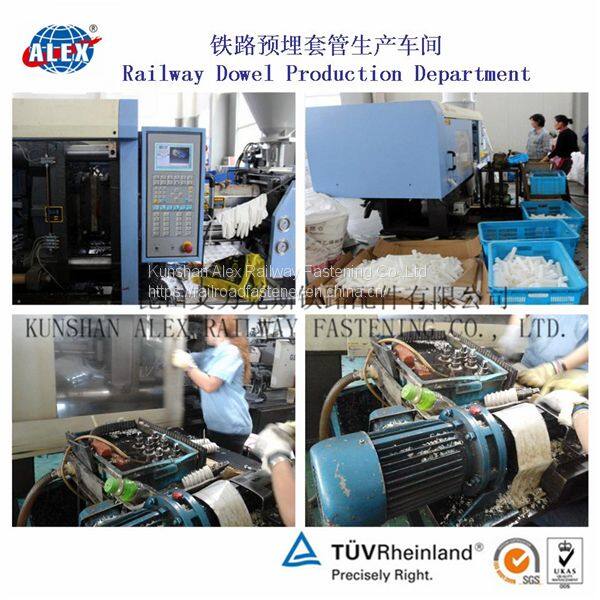

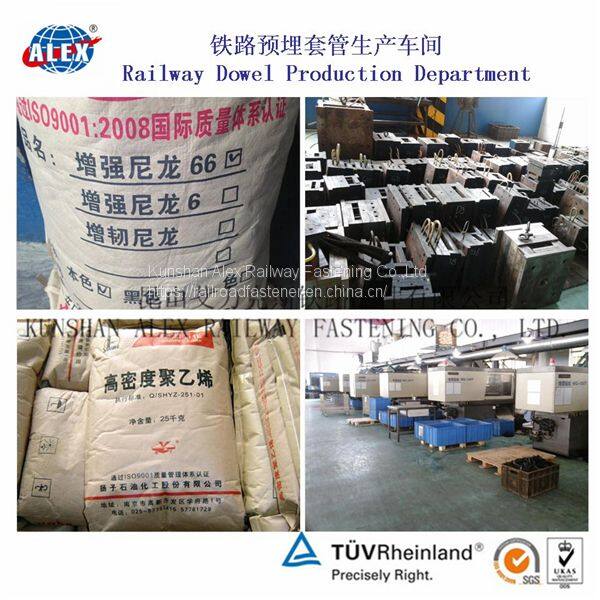

7. Producing line

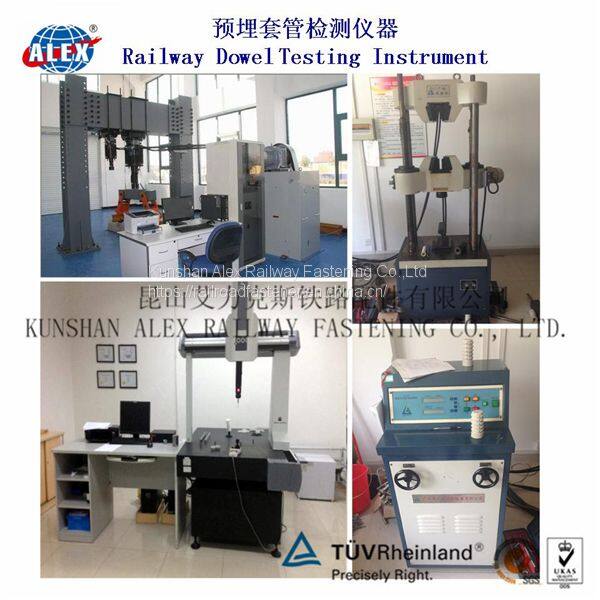

8. Quality control of plastic dowel/concrete insert.

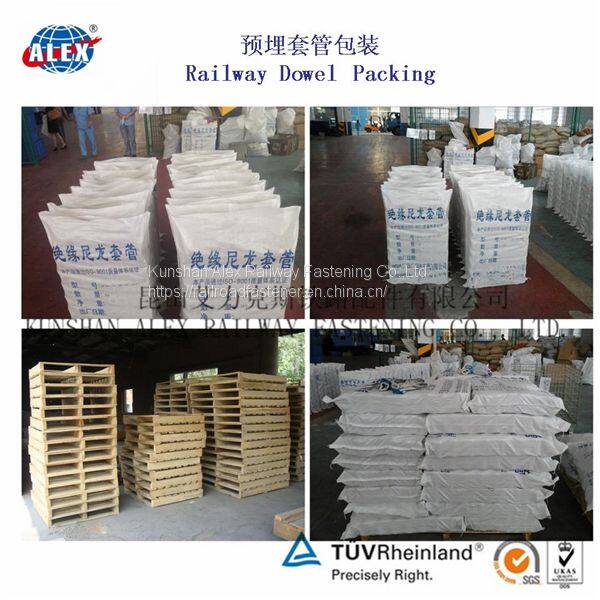

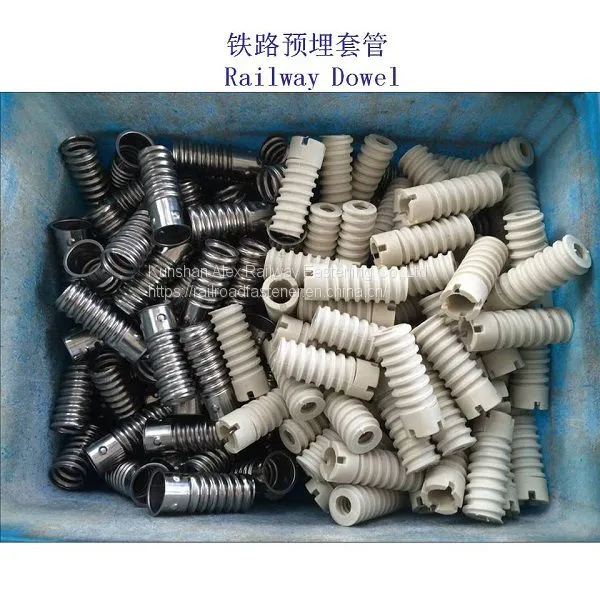

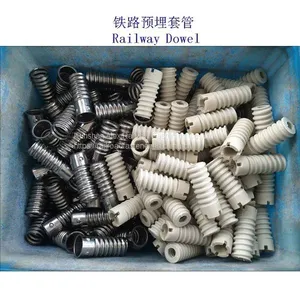

9 .Ways of packing for the Railroad Plastic Dowel /concrete dowel:
Company profile
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
