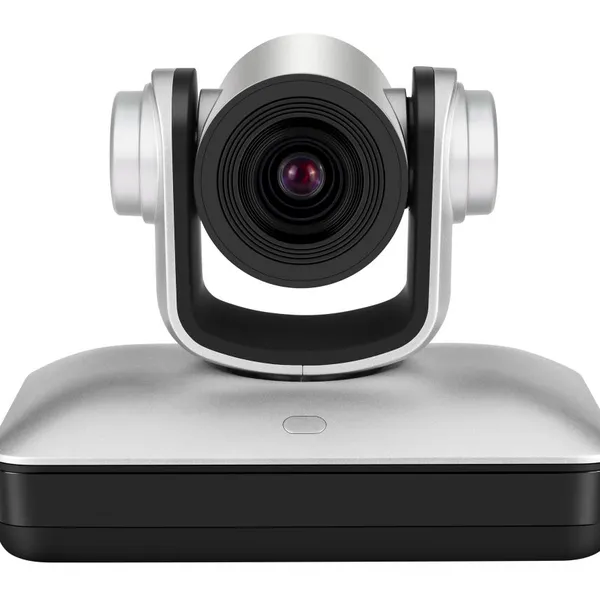

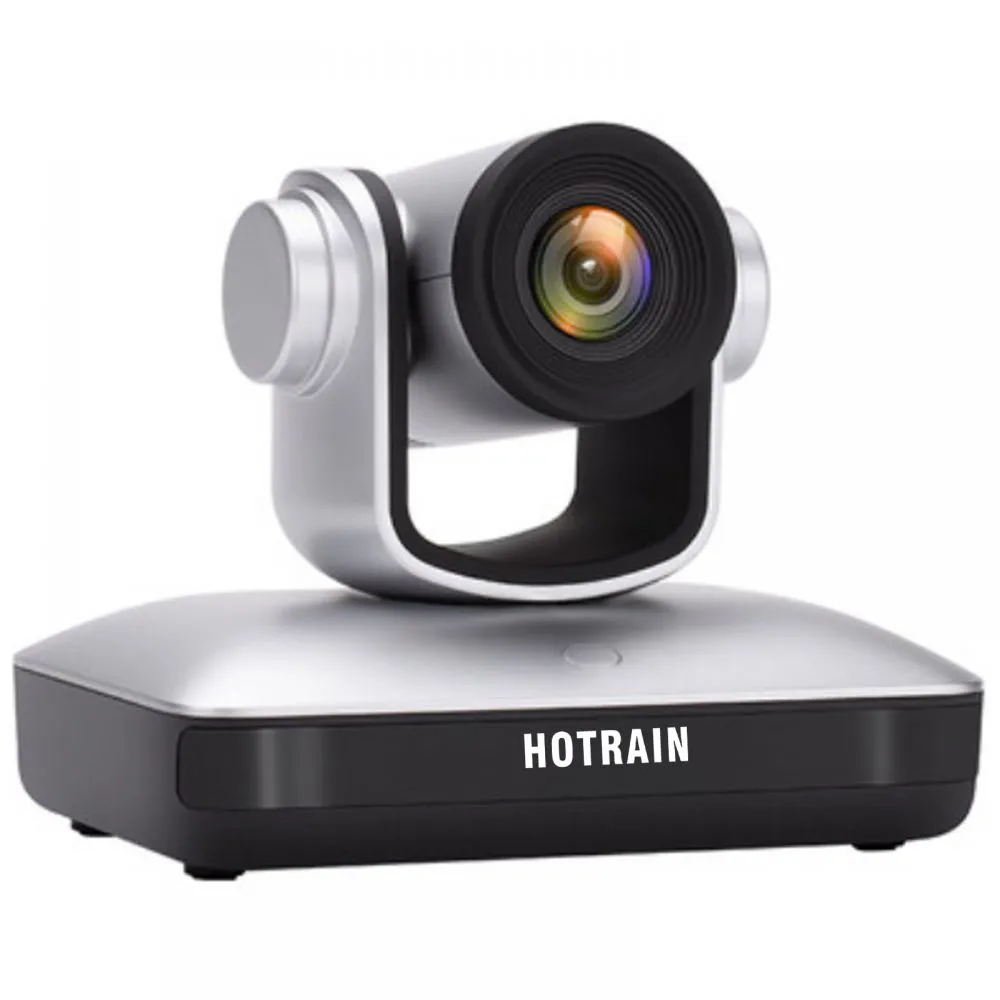

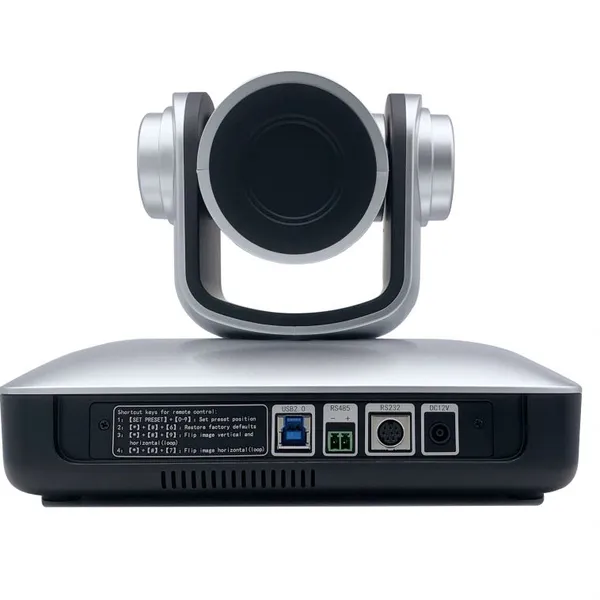

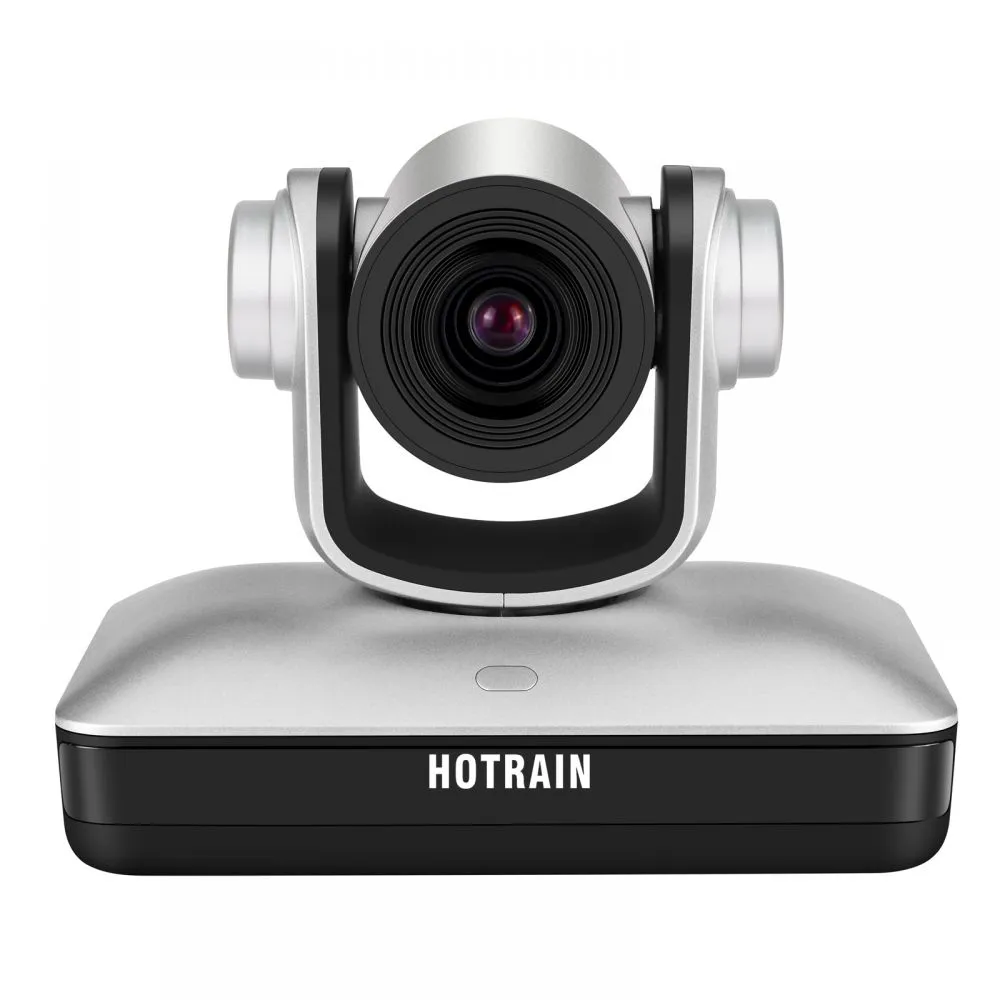

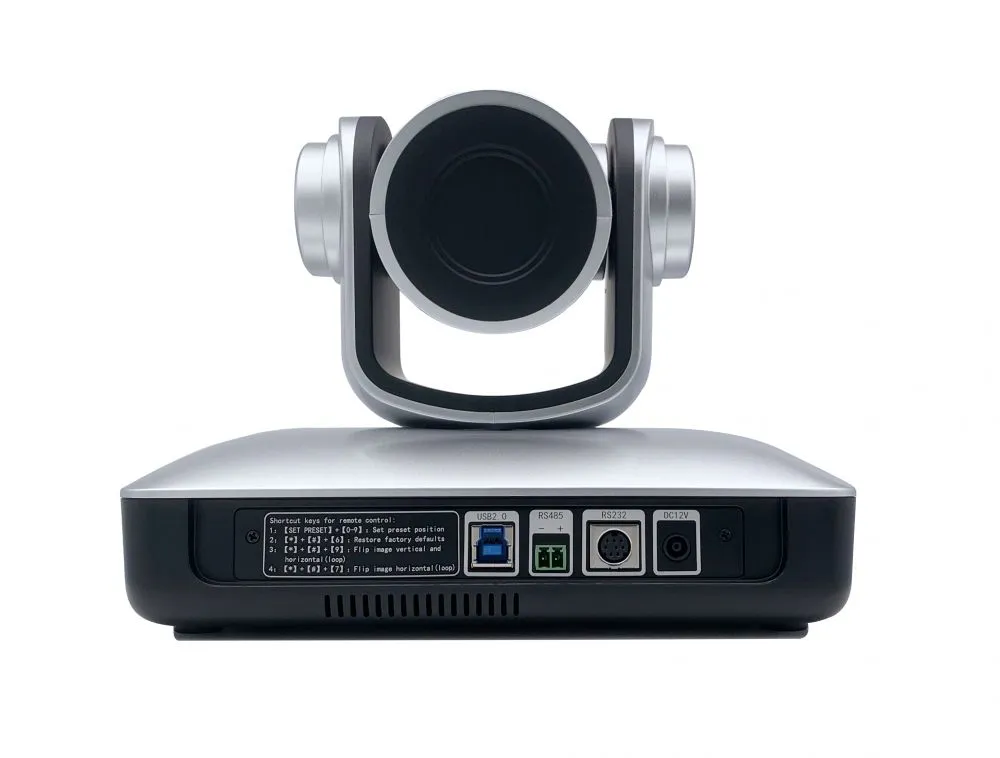

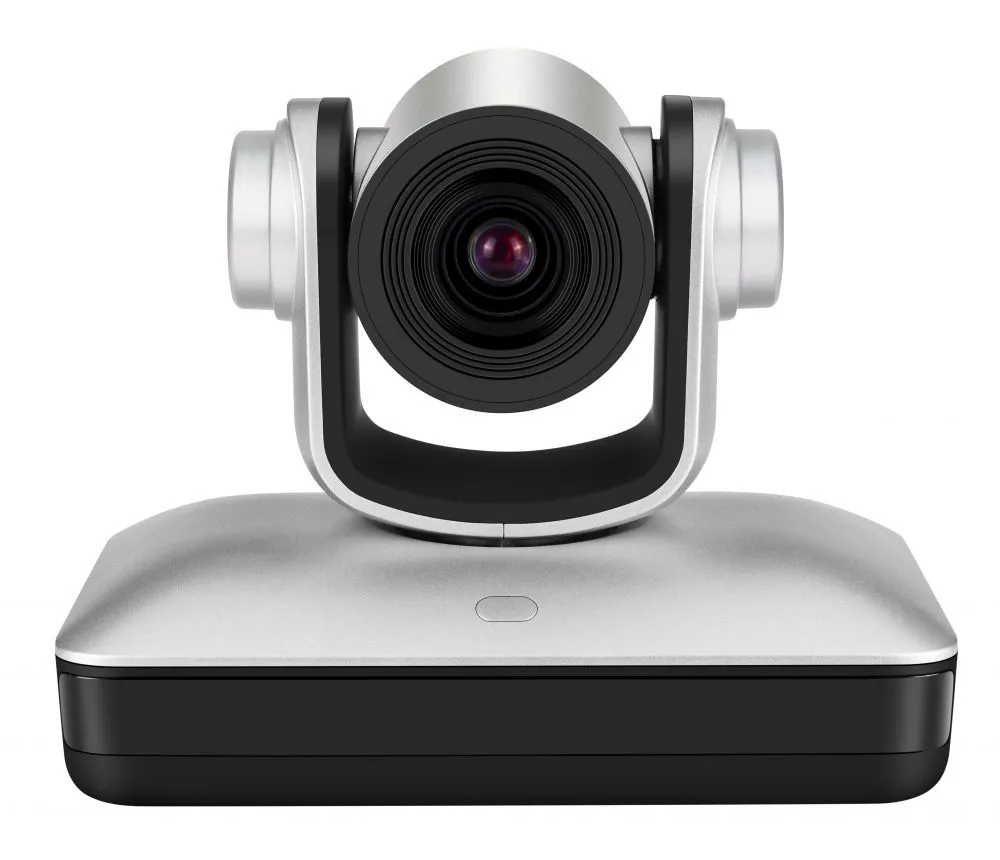

Hotrain FV7 Series 3x, 10x, 12x, 20x Zoom USB SDI HDMI IP PTZ Video Conference Camera
Model selection
|
FV7 series conference video camera
| |||||
Optical zoom |
0 |
Fixed focus |
|||
3 |
3x |
||||
10 |
10x |
||||
12 |
12x |
||||
20 |
20x |
||||
Interface |
SH |
3G HD-SDI, HDMI |
|||
U2 |
USB 2.0 |
||||
Frame frequency |
3 |
30Fps |
|||
6 |
60Fps |
||||
Model |
Specifications |
FV70U23 |
Fixed focus, USB 2.0 ; 30Fps |
FV73U23 |
3X, USB 2.0; 30Fps |
FV73SH6 |
3X, 3G HD-SDI, HDMI; 60Fps |
FV710U23 |
10X, USB 2.0; 30Fps |
FV712SH6 |
12X, 3G HD-SDI, HDMI; 60Fps |
FV712U23 |
12X, USB2.0,30Fps |
FV720SH6 |
20X, 3G HD-SDI, HDMI; 60Fps |
1.
Model |
FV720SH6 |
|
Main Specifications |
20X, 3G HD-SDI, HDMI; 60Fps |
|
Camera, lens | ||
Image sensor |
1/2.8inch High Quality HD CMOS Sensor |
|
Effective Pixels |
16:9 2.1 Mega effective pixels |
|
Video Format |
1080P60/50/30/25 , 1080I/60/50,720P60/50 |
|
Lens zoom |
20x optical zoom,12x digiting zoom,f＝4.7 - 94mm |
|
Angle of View |
2.9°(narrow angle)--55.4°(wide angle) |
|
Minimum illumination |
0.1Lux |
|
White Balance |
Auto/Indoor/Outdoor/Manual |
|
Focus |
Auto/Manual |
|
Aperture |
Auto |
|
Shutter |
Auto |
|
SNR(Signal to Noise Ratio) |
52dB |
|
Input/Output interface | ||
HD video interface |
HDMI,HD-SDI(3G) |
|
Standard definition video interface |
RCA interface |
|
Control signal interface |
8 cords mini DIN(RS232) 2 pin 3.81 seat(RS485) |
|
Control signal format |
Start Bit:1 bit,Data Bits:8 bits,Stop bit:1 bit, Baud Rate:9600/4800/2400bps |
|
Power Port |
HEC3800 Power Socket |
|
General Specifications | ||
Mechanical Capacity |
Pan/Horizontal rotation:±170 degree; Tilt rotation:-30 degree - +210 degree |
|
|
Horizontal control speed:1-100°/ sec; Tilt control speed:1-60°/ sec | ||
|
Preset speed: horizontal:100°/ sec, Tilt:60°/ sec | ||
Preset position accuracy:0.1 degree | ||
Preset Positions Number:255 presets | ||
Head control mode |
servo motor control |
|
Color |
Black |
|
Power Adapter |
AC110V-AC220V - DC12V/2A |
|
Input Voltage |
DC12V(DC11.5-DC12.5V) |
|
Power Consumption |
15W( max. ) |
|
Size (LxWxH) |
155mmX176mmX190mm |
|
Weight (net weight) |
2.5KG(1.3KG) |
|
Working Environment |
Indoor |
|
2.
Model |
FV73U23 |
Main Specifications |
3X, USB2.0; 30Fps |
Camera, lens specifications | |
Image Sensor |
MT9M034 High Quality HD CMOS Sensor |
Effective Pixels |
16:9 2.1 Mega effective pixels |
Video Format |
USB2.0: 1080p30/15/10/7.5,720p30/15/10/7.5, |
960X480p30, 720X576p30,720X480p30, | |
640X480p30/15/10/7.5,640X360p30/15/10/7.5 | |
Lens zoom |
3x optical zoom, f＝3- 9mm |
Angle of View |
31°(narrow angle) - 95°(wide angle) |
Minimum illumination |
0.1Lux |
White Balance |
Auto |
Focus |
Auto/Manual |
Aperture |
Auto/Manual |
Shutter |
Auto |
SNR(Signal to Noise Ratio) |
52dB |
Input/Output interface | |
HD video interface |
USB2.0 |
Control signal interface |
8 cords mini DIN |
Control signal format |
Start Bit:1 bit,Data Bits:8 bit,Stop bit:1 bit,Baud Rate:9600/4800/2400bps |
Power Port |
HEC3800Power Socket |
Supported operation system |
Windows 7, Windows 8, Mac OS X, Linux |
USB Communication Protocol |
UVC1.1 |
USB INTERFACE PTZ CONTROL |
Support PTZ control |
General Specifications | |
Mechanical Capacity |
Pan/Horizontal rotation: ±170 degree; Tilt rotation:-30 degree - +90 degree |
|
Horizontal control speed:1-100°/ sec; Tilt control speed:1-60°/ sec | |
Preset speed: horizontal:100°/ sec, Tilt: 60°/ sec | |
Preset position accuracy: 0.1 degree | |
Preset Positions Number: 255 presets | |
Color |
White,Black (optional) |
Power Adapter |
AC110V-AC220V - DC12V/2A |
Input Voltage |
DC12V(DC11.5-DC12.5V) |
Power Consumption |
10W( max.) |
Size (LxWxH) |
155mmX186mmX172mm |
Weight (net weight) |
2.5KG(1.3KG) |
Working Environment |
Indoor |
3.
Model |
FV70U23 |
Fixed focus, USB2.0 ; 30Fps |
|
Camera, lens specifications | |
Image Sensor |
1/2.8inch High Quality HD CMOS Sensor |
Effective Pixels |
16:9 2.1 Mega effective pixels |
Video Format |
USB2.0: 1080p30/15/10,720p30/15/10, 960X480p30, 720X576p30,720X480p30, 640X480p30/15/10/7.5, 640X360p30/15/10/7.5 |
Angle of View |
105 degree |
Minimum illumination |
0.1Lux |
White Balance |
Auto |
Focus |
Auto/Manual |
SNR(Signal to Noise Ratio) |
51dB |
Input/Output interface | |
HD video interface |
USB2.0 |
Control signal interface |
8 cords mini DIN/2PIN wiring seat |
Control signal format |
Start Bit:1 bit, Data Bits:8 bit,Stop bit:1 bit,Baud Rate:9600/4800/2400bps |
Power Port |
HEC3800 Power Socket |
Supported operation system |
Windows 7, Windows 8, Mac OS X, Linux |
USBCommunication Protocol |
UVC1.1 |
General Specifications | |
Mechanical Capacity |
Pan/Horizontal rotation:±180 degree; Tilt rotation:-30 degree - +90 degree |
|
Horizontal control speed:1-60°/ sec; Tilt control speed:1-40°/ sec | |
Preset speed:horizontal:60°/ sec,Tilt:40°/ sec | |
Preset position accuracy:0.1 degree | |
Preset Positions Number:255 presets | |
Color |
Classic gray |
Power Adapter |
AC110V-AC220V - DC12V/2A |
Input Voltage |
DC12V(DC11.5-DC12.5V) |
Power Consumption |
10W( max. ) |
Size (LxWxH) |
156mmX176mmX170mm |
Weight (net weight) |
2.5KG(1.3KG) |
Working Environment |
Indoor |
4.
Model |
FV710U23 |
10X, USB2.0; 30Fps |
|
Camera, lens specifications | |
Image Sensor |
1/2.8inch High Quality HD CMOS Sensor |
Effective Pixels |
16:9 2.1 Mega effective pixels |
Video Format |
UUSB2.0: 1080p30/15/10/7.5,720p30/15/10/7.5, 960X480p30, 720X576p30,720X480p30, 640X480p30/15/10/7.5,640X360p30/15/10/7.5 |
Lens zoom |
10x optical zoom f＝5 - 50mm |
Angle of View |
5.3°(narrow angle) - 52°(wide angle) |
Minimum illumination |
0.1Lux |
White Balance |
Auto/Indoor/Outdoor/Manual |
Focus |
Auto/Manual |
SNR(Signal to Noise Ratio) |
52dB |
Input/Output interface | |
HD video interface |
USB2.0 |
Control signal interface |
8 cords mini DIN |
Control signal format |
Start Bit:1 bit,Data Bits:8 bit, Stop bit:1 bit, Baud Rate:9600/4800/2400bps |
Power Port |
HEC3800Power Socket |
Supported operation system |
Windows 7, Windows 8, Mac OS X, Linux |
USBCommunication Protocol |
UVC1.1 |
USB INTERFACE PTZ CONTROL |
Support PTZ control |
General Specifications | |
Mechanical Capacity |
Pan/Horizontal rotation:±170 degree; Tilt rotation:-30 degree - +90 degree |
|
Horizontal control speed:1-100°/ sec; Tilt control speed:1-60°/ sec | |
|
Preset speed: horizontal:100°/ sec, Tilt:60°/ sec | |
Preset position accuracy:0.1 degree | |
Preset Positions Number:255 presets | |
Color |
Classic gray |
Power Adapter |
AC110V-AC220V - DC12V/2A |
Input Voltage |
DC12V(DC11.5-DC12.5V) |
Power Consumption |
10W( max. ) |
Size (LxWxH) |
155mmX186mmX172mm |
Weight (net weight) |
2.5KG(1.3KG) |
Working Environment |
Indoor |
5.
Model |
FV712SH6 |
12X, 3G HD-SDI, HDMI; 60Fps |
|
Camera, lens specifications | |
Image Sensor |
1/2.8inch High Quality HD CMOS Sensor |
Effective Pixels |
16:9 2.1 Mega effective pixels |
Video Format |
1080P60/50/30/25 ,1080I/60/50,720P60/50 |
Lens zoom |
12x optical zoom,F1.6 - F3.5,f4.7 - 56mm |
Angle of View |
5.2°(narrow angle)--62°(wide angle) |
Minimum illumination |
0.1Lux |
White Balance |
Auto/Indoor/Outdoor/Manual |
Focus |
Auto/Manual |
Aperture |
Auto |
Shutter |
Auto |
SNR(Signal to Noise Ratio) |
50dB |
Input/Output interface | |
HD video interface |
HDMI,HD-SDI(3G) |
Control signal interface |
8 cords mini DIN |
Control signal format |
Start Bit:1 bit,Data Bits:8 bit,Stop bit:1 bit,Baud Rate:9600/4800/2400bps |
Power Port |
HEC3800Power Socket |
General Specifications | |
Mechanical Capacity |
Pan/Horizontal rotation:±170 degree;Tilt rotation:-30 degree - +210 degree |
Horizontal speed:1-100°/ sec;Tilt speed:1-60°/ sec | |
Preset speed:horizontal: 100°/ sec,Tilt:60°/ sec | |
Preset position accuracy: 0.1 degree | |
Preset Positions Number: 255 presets | |
Color |
Classic gray |
Power Adapter |
AC110V-AC220V - DC12V/2A |
Input Voltage |
DC12V (DC11.5-DC12.5V) |
Power Consumption |
15W ( max. ) |
Storage Temperature |
-10℃ to +60℃ |
Working Temperature |
0℃ to +45℃ |
Size (LxWxH) |
156mmX176mmX170mm |
Weight (net weight) |
2.5KG(1.3KG) |
Working Environment |
Indoor |
