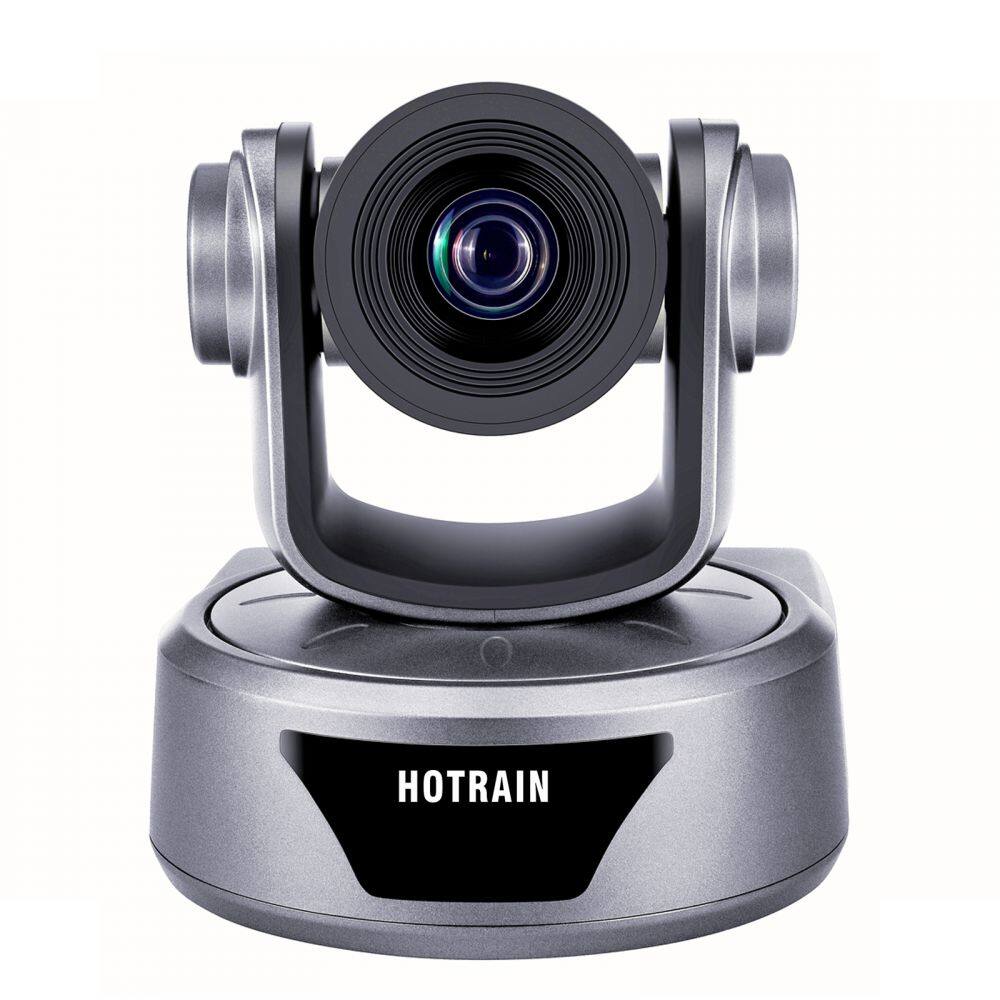

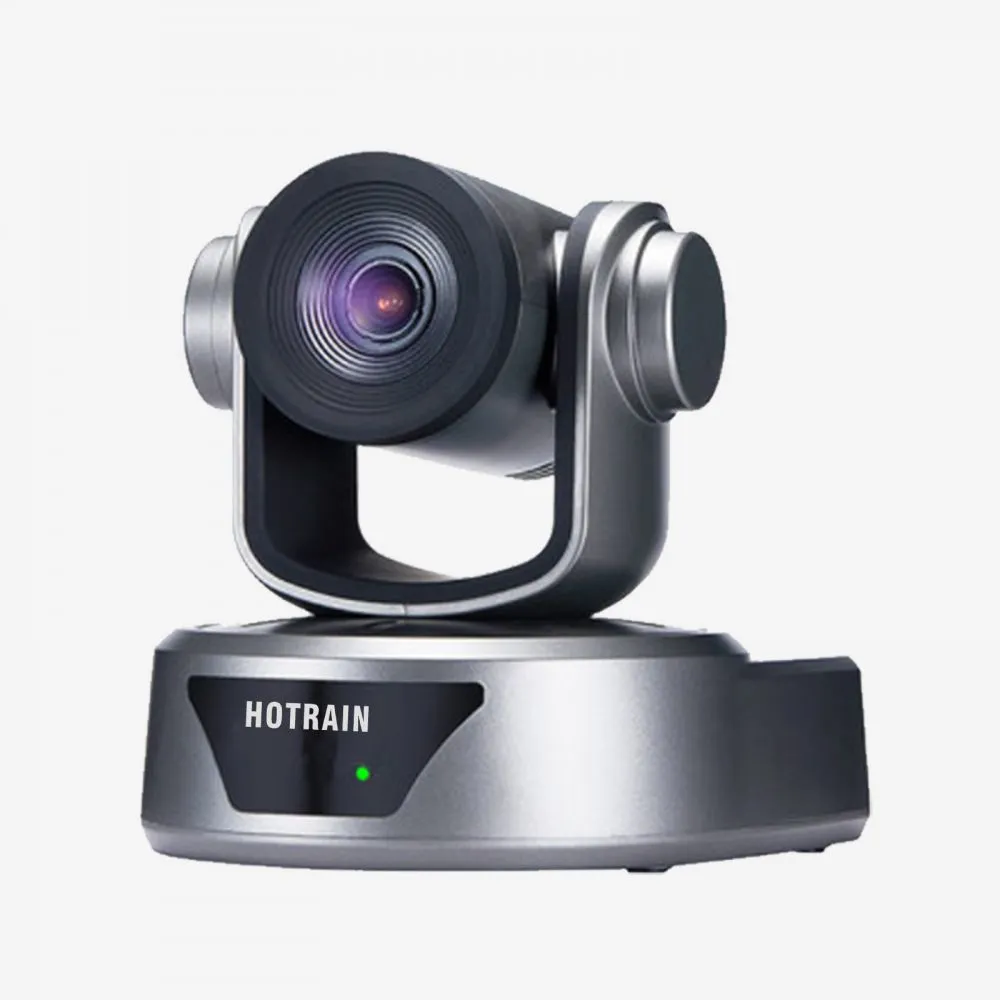

FV312X3 1080P 12X 30Fps USB3.0 IP HDMI PTZ Conference Video Camera
FV312X3
12X, HDMI, USB3.0, IP,30Fps
Specifications:
Model |
FV312X3 |
12X, HDMI, USB3.0, IP,30Fps |
|
Camera, lens specifications | |
Image Sensor |
1/2.8inch High Quality HD CMOS Sensor |
Effective Pixels |
16:9 2.1 Mega effective pixels |
Video Format |
USB3.0: 1080p30/25/10,720p60/50/30/25/20/10, USB2.0: 1080p10,720p25/20/10,800X600P60/50/30/25,640X480P60/50/30/25 |
Lens zoom |
FV312,12X,F1.6 - F3.5,f=4.7mm - 56mm 12x digiting zoom, |
Angle of View |
FV312,12X,62°(wide angle end) - 5.2°(far end) |
Minimum illumination |
0.1Lux |
White Balance |
Auto/Indoor/Outdoor/Manual |
Focus |
Auto/Manual |
Aperture |
Auto/Manual |
Shutter |
Auto |
SNR (Signal to Noise Ratio) |
>52dB |

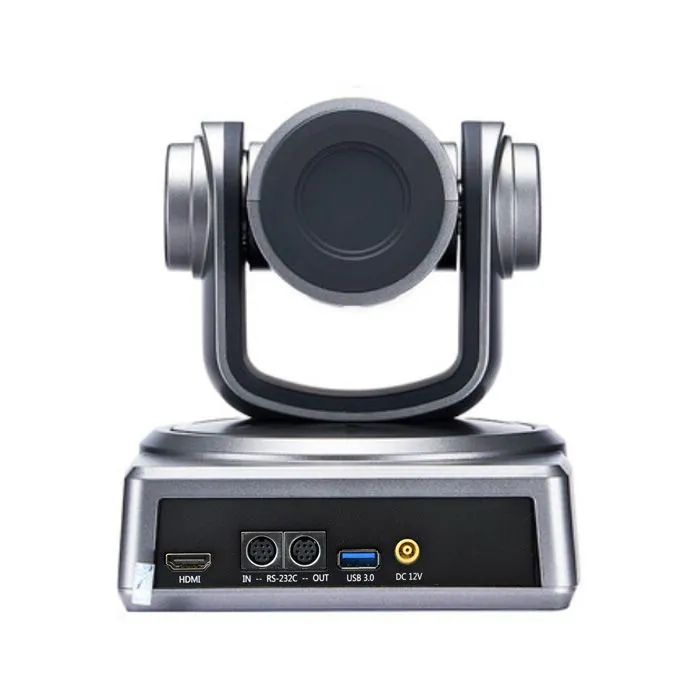

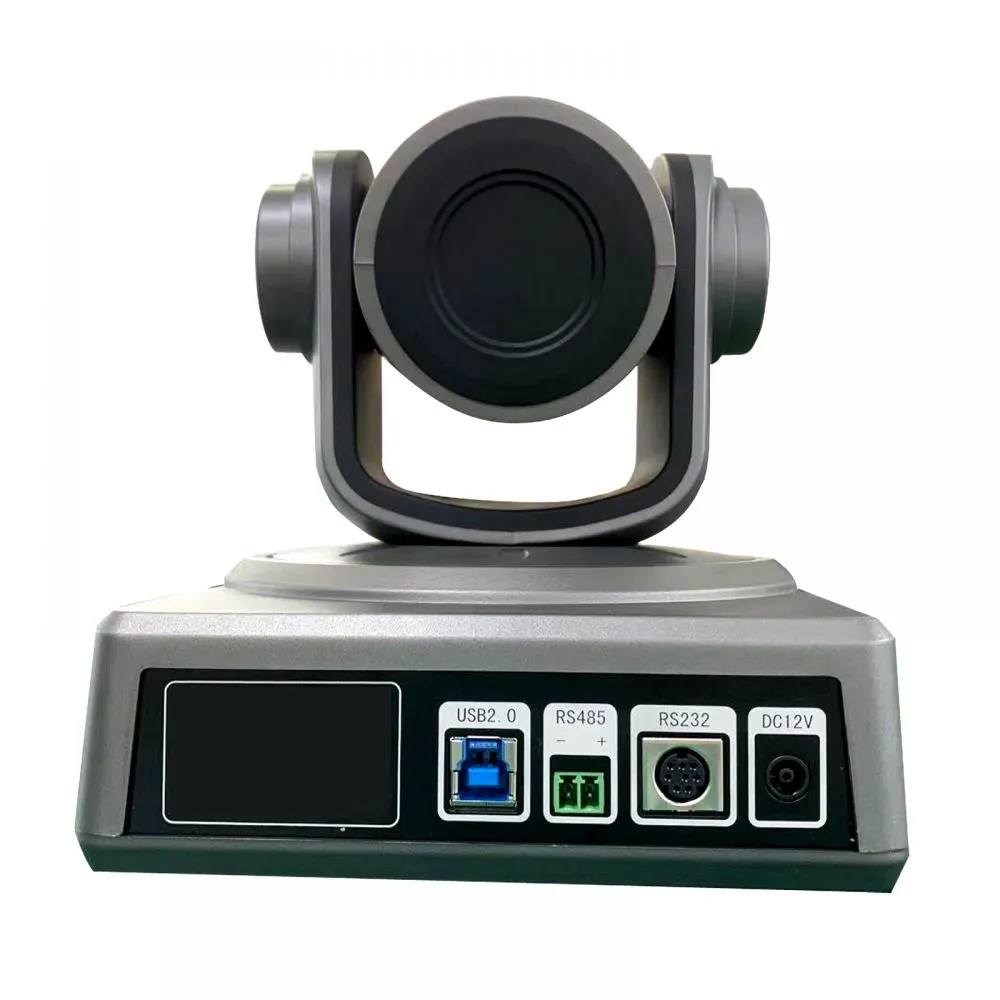

Input/Output interface | |
HD video interface |
HDMI, USB3.0, IP (optional) |
Standard definition video interface |
AV interface (CVBS) |
Video compression type |
H.264, H.265 |
Control signal interface |
8 cords mini DIN(RS232),3.81 seat(RS485) |
Control signal format |
Start Bit:1 bit,Data Bits:8 bit,Stop bit:1 bit,Baud Rate:9600/4800/2400bps |
Power Port |
HEC3800 Power Socket |
Supported operation system |
Windows 10, Windows 7, Linux |
USBCommunication Protocol |
UVC1.1 |
Encoding |
YUY2 |
USB INTERFACE PTZ CONTROL |
Support PTZ control |
General Specifications | |
Mechanical Capacity |

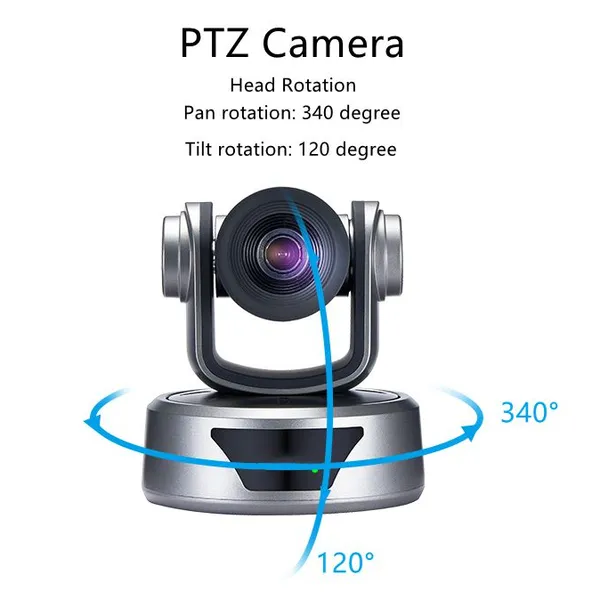

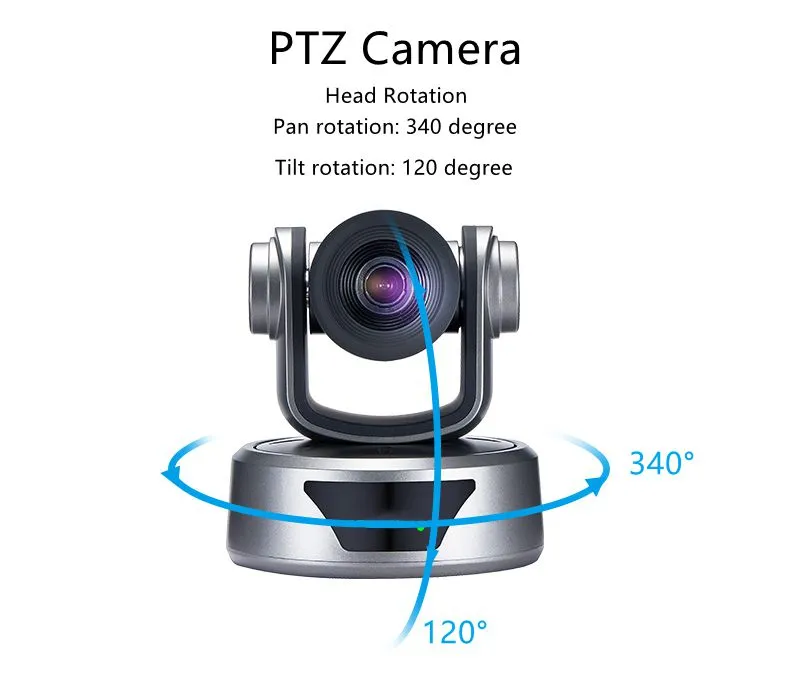

Pan/Horizontal rotation:±170 degree; Tilt rotation:-30 degree - +90 degree |
|
Horizontal control speed:1-100°/ sec; Tilt control speed:1-60°/ sec | |
Preset speed:horizontal: 100°/ sec, Tilt:60°/ sec | |
Preset position accuracy: 0.1 degree | |
Preset Positions Number: 255 presets | |
Color |
Silver grey |
Power Adapter |
AC110V-AC220V - DC12V/2A |
Input Voltage |
DC12V (DC11.5-DC12.5V) |
Power Consumption |
15W ( max. ) |
Storage Temperature |
-10℃ to +60℃ |
Working Temperature |
0℃ to +45℃ |

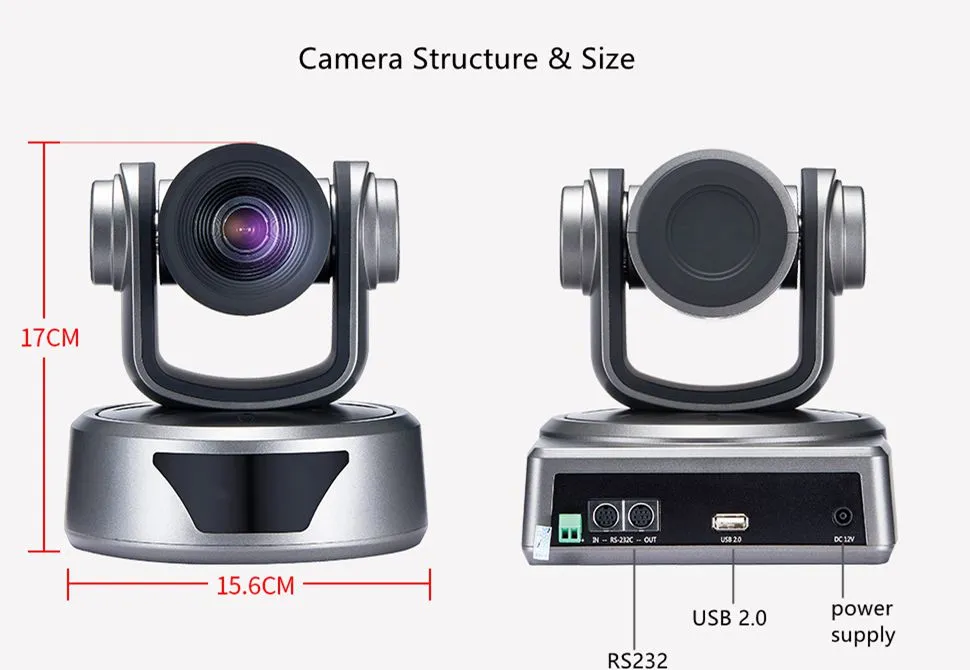

Size (LxWxH) |
155mmX176mmX170mm |
Weight (net weight) |
2.5KG(1.3KG) |
Working Environment |
Indoor |
