Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > DC 12v 40mm 4015 40x40x15mm Small Mini Exhaust Ventilation Fan

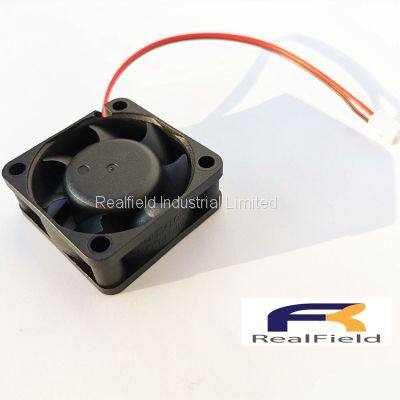

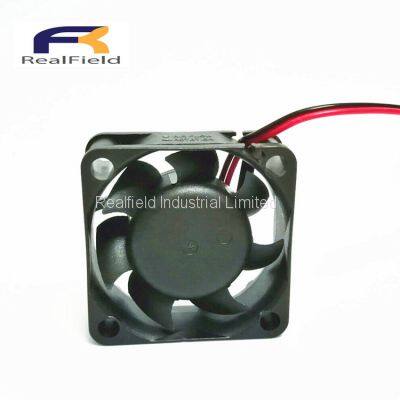

DC 12v 40mm 4015 40x40x15mm Small Mini Exhaust Ventilation Fan
US$ 0.88 - 1.08
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD401512H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
60mm 12v 60x60x10mm 6010 Mini Axial Flow Exhaust Cooling FanUS$ 0.92 - 1.08MOQ: 500 Pieces -
70mm dc 12v Ventilador 70x70x15mm 7015 Axial Flow Cooling FanUS$ 0.8 - 1.0MOQ: 500 Pieces
-
20mm 20x20x6mm 2006 dc 3v 5v 6v 12v Micro Axial Ventilador Cooling FanUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
DC 12v 40mm Ventilador 40x40x10mm 4010 Axial Small Ventilator Cooling FanUS$ 0.8 - 0.95MOQ: 200 Pieces
-
DC 12v 40mm 3pin Ventilator 40x40x10mm 4010 Axial Cooling FanUS$ 0.88 - 1.08MOQ: 500 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD401512H
Certification
CE, ROHS
Voltage
DC 12v
Power
3W
Speed
10000RPM
Air Volume
8.28CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
DC 12v 40mm 4015 40x40x15mm small blower mini exhaust ventilation cooling fan
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | |
| Type | |||||||||||
| PART NO. |
S/B/Y |
VDC | VDC | AMP | WATT | RPM | m3/min | CFM | Inch-H20 | DB-A | g |
| HXD401505L | 5 | 3.5 to 6.8 | 0.25 | 1.25 | 6000 | 0.16 | 5.76 | 0.12 | 23.8 | 25 | |
| HXD401505M | 5 | 3.5 to 6.8 | 0.35 | 1.75 | 8000 | 0.19 | 6.88 | 0.17 | 27.8 | 25 | |
| HXD401505H | 5 | 3.5 to 6.8 | 0.6 | 3 | 10000 | 0.23 | 8.28 | 0.24 | 32.8 | 25 | |
| HXD401505HH | 5 | 3.5 to 6.8 | 0.7 | 3.5 | 12000 | 0.27 | 9.44 | 0.32 | 35.8 | 25 | |
| HXD401512L | 12 | 6 to 13.5 | 0.1 | 1.2 | 6000 | 0.16 | 5.76 | 0.12 | 23.8 | 25 | |
| HXD401512M | 12 | 6 to 13.5 | 0.15 | 1.8 | 8000 | 0.19 | 6.88 | 0.17 | 27.8 | 25 | |
| HXD401512H | 12 | 6 to 13.5 | 0.25 | 3 | 10000 | 0.23 | 8.28 | 0.24 | 32.8 | 25 | |
| HXD401512HH | 12 | 6 to 13.5 | 0.3 | 3.6 | 12000 | 0.27 | 9.44 | 0.32 | 35.8 | 25 | |
| HXD401524L | 24 | 18 to 26.5 | 0.06 | 1.44 | 6000 | 0.16 | 5.76 | 0.12 | 23.8 | 25 | |
| HXD401524M | 24 | 18 to 26.5 | 0.08 | 1.92 | 8000 | 0.19 | 6.88 | 0.17 | 27.8 | 25 | |
| HXD401524H | 24 | 18 to 26.5 | 0.13 | 3.12 | 10000 | 0.23 | 8.28 | 0.24 | 32.8 | 25 | |
| HXD401524HH | 24 | 18 to 26.5 | 0.15 | 3.6 | 12000 | 0.27 | 9.44 | 0.32 | 35.8 | 25 | |
Connectors for Option
If you need other rpm or voltage or functions which not in the list ,please contact Luke.
