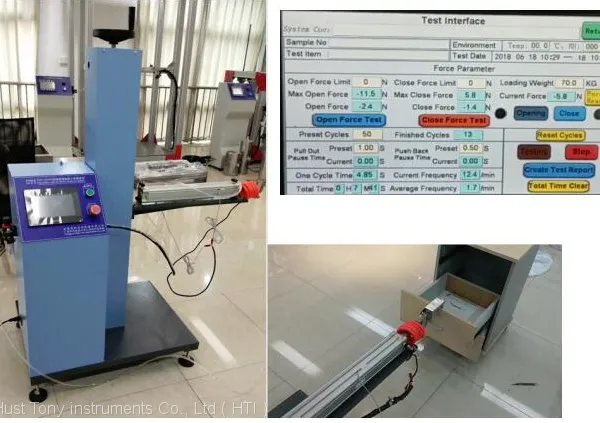

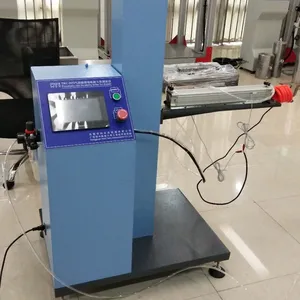

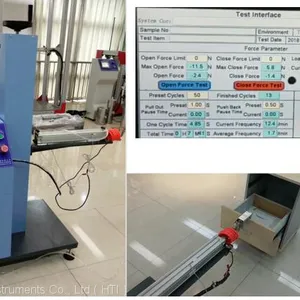

PLC Control Furniture Testing Device For Drawer Mechanical Durability Testing
Application:
Drawer Durability Tester is used to test the durability of the drawer slides of furniture.
Apply a certain load inside the drawer, repeated pull-out and close of the drawer.
After a certain number of cycles, check if the slide is still able to meet the requirements.
Standards: GB/T10357
Technical Parameter:
| Model | TNJ-005 |
| Maximum stroke | 400mm |
| Speed | 0.25m/s |
| Test height | Max.108cm |
| Count: | 0 ~ 999999 can be set |
| Control mode | Text controller + PLC control |
| Dimension(W x D x H) | 80x60x120cm |
| Weight (about) | ≈80Kg |
| Power supply | AC 220V 50Hz 3A |
| Gas source | ≥ 6kgf / cm2 stable gas so |
Purpose of equipment :
Durability drawer test base on BS EN and BIFMA
Technical specifications
This machine use for opening and closing drawer and must to fulfill minimum needed as follow:
Compressed air – 6 kg/cm²
AC motor –to control the height from 250-1000mm
Pneumatic cylinder – double acting cylinder with magnetic switch and maximum stroke 600 mm (adjustable). The cylinder shall have the fixture to hold any type of drawer handle to open / close the drawer without exerting force on the drawer system
Control panel/ console consists of :
Power supply: 240 Volts: 13 Amps: 50 Hz
ON/OFF switch button
6- digits Electronic Predetermine Counter (EPC)
The EPC will register every stroke of the cylinder up to six (6) digits,
Will stop the test operation to the preset stroke,
The EPC will display the number of stroke achieved during the test,
EPC also able to store the number of cycles when the power interruption take place and able to display the actual reading and continues counting when operation resumes
The signal shall maintain until the counter is reset
Note: one stroke is counted as one cycle

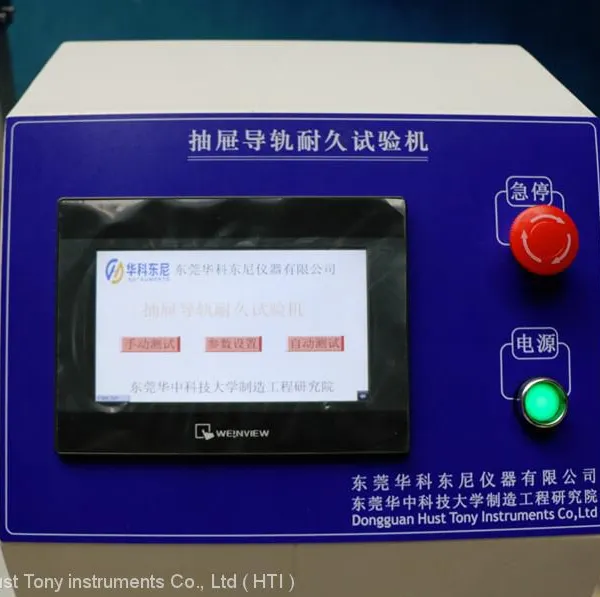

PLC Control Panel :
