BS En1728 , BIFMA X5.1 Furniture Testing Device for Chair Strength and Durability Testing
Detailed Product Description:
| Impact Head Component Weight:: | 25kg | Seat Height:: | 30~65cm |
|---|---|---|---|
| Loading Times:: | 0~99999times Can Be Set | Strength Adjust:: | Pressure Is Adjustable |
| Beams Lifting Way:: | Electric Lift | Power:: | AC 220V 50Hz 5A |
| High Light: | furniture testing equipment, temperature humidity test chamber | ||
BS En1728 , BIFMA X5.1 Furniture Testing Device for Chair Strength and Durability Testing
Description:

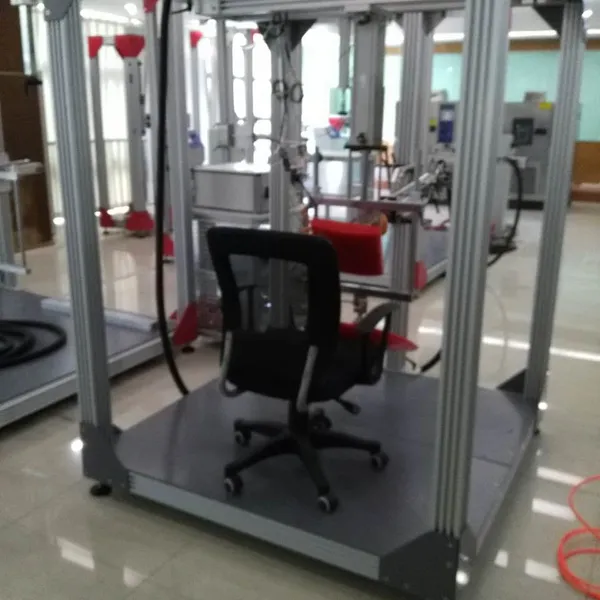

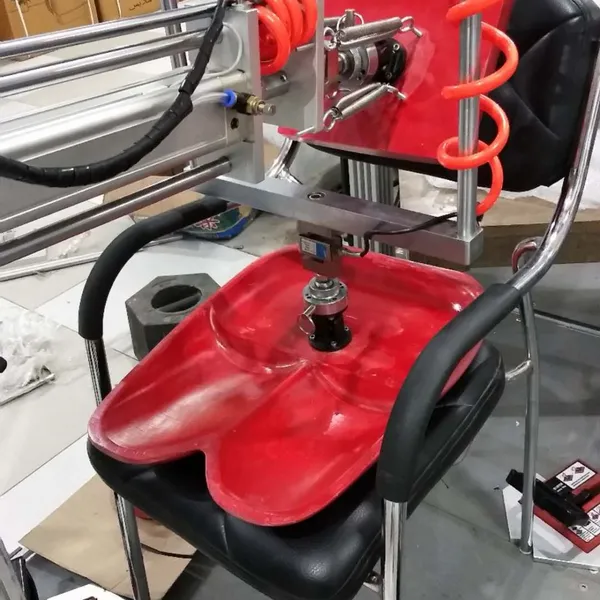

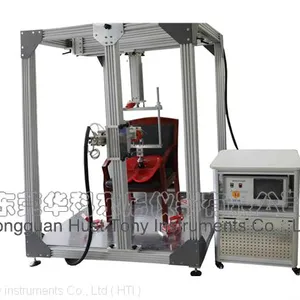

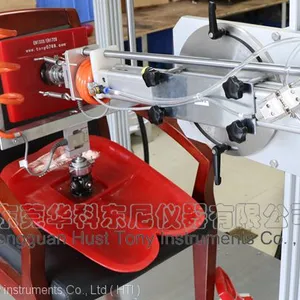

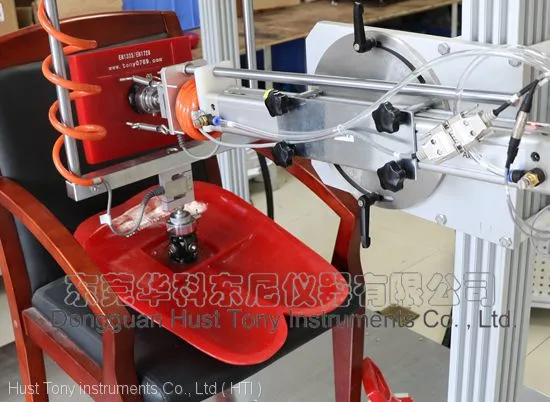

Office Chair Seat Back durability tester is used for testing the strength and durability of office chair. Made of Aluminum material frame, PLC control, easy operation; high precision force sensor for the load application.
Technical parameters:
| Loading Sensor: | 4000N (1nos), 1000N (1nos) |
| Loading force for seat testing: | 0-4000N (adjustable) |
| Loading force for back testing: | 0-1000N (adjustable) |
| Load force solution: | 1/10000 |
| System test force accuracy: | ±1%(static) ; ±5% (dynamic) |
| Test speed: | 10~30 cycles per minute, 1-5 test cycles per 10 second (adjustable) |
| Loading cycle: | 0~999999 adjustable |
| Control method: | Microcomputer automatism servo control, Touch screen control |
| Loading method: | Pneumatic linear actuator |
| Specimen test station: | 1 |
| Test independence: | Independent control by each work station |
| Setting: | Computer software setting |
| Data storage: | RAM and U disc |
| Loading power: | Motor |
| Test report: | Make the report on computer as request |
| Loading force adjustment: | Air pressure adjustment (300N-3500N) |
| Motion control: | PLC control |
Backrest loading height: |
Manual adjustment |
| Dimension | 140x140x200cm |
Air source: |
Air supply input is 0.4Mpa-0.8Mpa. (6kgf/cm^2 or above, supplied by customer themselves) |
| Power: | 1∮AC 220V 50Hz 5A, 3KW |
|
Standards:
|
EN 1728:2012 6.4 Seat static load and back static load test; EN 1728:2012 6.17 Combined seat and back durability test; BS EN 581-2 B.2.1.1 and B.2.1.2,
|
|
Accessories:
|
Seat loading pad 1 set; back loading pad 1set; Stationary fixture 1 set. |

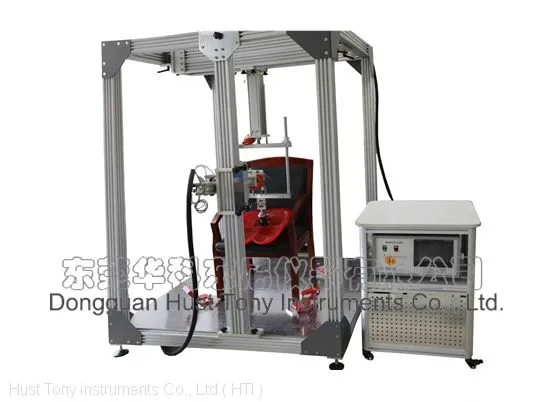

Apparatus structure: This tester uses aluminum alloy frame, iron and aluminum plates for the structure manufacturing. Motor part has a air cylinder operation with electronic components for operation.
Machine dimension: Length 1400mm x wide 1400mm x height 2000mm
Control box dimension: Length 640mm x wide 600mm x height 850mm
Spare Parts:1. Distribution box with aluminum alloy frame x 1
2. Portable magnetic sucker x 4
3. Loading pad x 2
