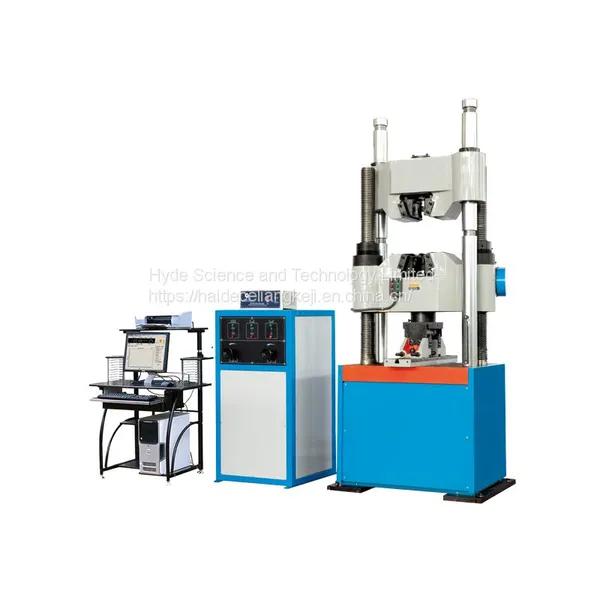

Computer Electro Hydraulic Servo Universal Testing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2010

Annual Export Value:

Below US$1 Million

Hyde Science And Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin, Shanghai, Ningbo

Delivery Detail:

45 days

Computer Electro hydraulic Servo Universal Testing Machine

Model		XBX-300	XBX-600	XBX-1000
Max. test force (KN)		300	600	1000
Range of test force		2%~10%FS, Four subsection 1,2,5,10
Relative error of indicating value		Better than ±1% of indicating value
Resolution of displacement measurement (mm)		0.01
Accuracy of deformation measurement		±0.5%FS
Control range of stress velocity		1MP/S-60MP/S
Adjustable range of strain velocity		0.00025/S-0.0025/S
Control range of displacement velocity		0.5mm/min-50mm/min
Clamping diameter of round specimen (mm)		φ10-φ32	φ13-φ40	φ13-φ60
Clamping thickness of flat specimen (mm)		0-15	0-30	0-40
Clamping width of flat specimen (mm)		70	80	120
Test space (mm)	Tensile test	750	800	650
	Compression test	650	700	600
Upper and lower compression plate size (mm)		Φ130	Φ180	210×210
Roller distance of bending fixture (mm)		30-580	30-580	30-800
Max piston stroke (mm)		250
Power supply		380V±10%, 50Hz
Working environment		10℃~30℃, relative humidity≤80%;
Overall dimension (L×W×H) (mm)	Host machine	905×580×2260	905×580×2325	1070×850×2530
	Control box	600×600×1165
Weight (kg)		2720	3000	4100
