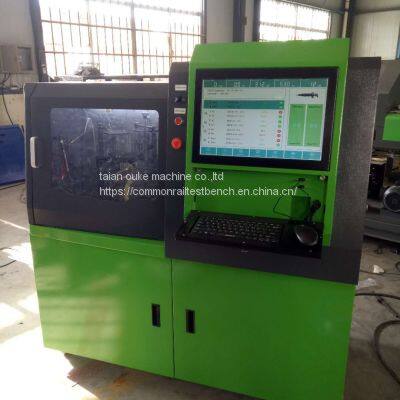

HEUI Test Bench

It can test the performance of common rail injector & HEUI, controlled by industrial computer, windows operating system. The oil quantity is measured by flow sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts common rail pump cp3 to provide 0~2300 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect.

Main functions:

1. test range: common rail injector (Bosc-h,Dens-o,Delph-i,Siemen-s brands),including piezo injector.

 HEUI test:HEUI injector ,with two sets of oil circulation system.

2.injector testing: leakage, injection oil quantity and back oil quantity.(pre-injection, Idling, emissions, full load).

ure source:common rail pump cp3(test common rail injector);engine oil pump(test HEUI injector).

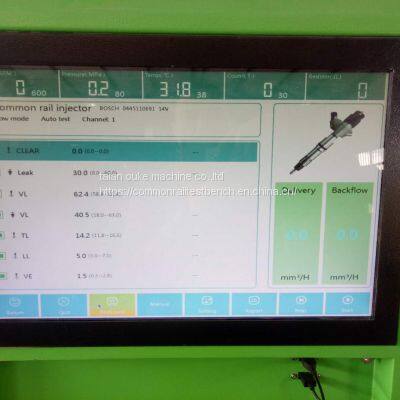

4.oil quantity display mode:by computer screen with flow meter.

5.to test some more special injectors that need higher pressure.

6. Electronic fuel delivery measuring, automatic testing and detection.

7. Data can be searched and saved.

Features:

1. Controlled by industrial computer in real time, Windows operating system.

2. Oil quantity is measured by sensor and displayed on LCD screen.

3. More than 3000 kinds of injectors data can be searched and used.

4. It is installed common rail pump CP3 to provide 0~2200 bar.

5. Rail pressure can be tested in real time.

6. Provide pressure overload protect.

7. Pulse and frequency of the injector can be adjusted.

8. Injection time can be set.

9. Protection function of short-circuit.

10. Precise measurement, easy operation, low noise.

11.Frequency converter inside to keep the RPM.
