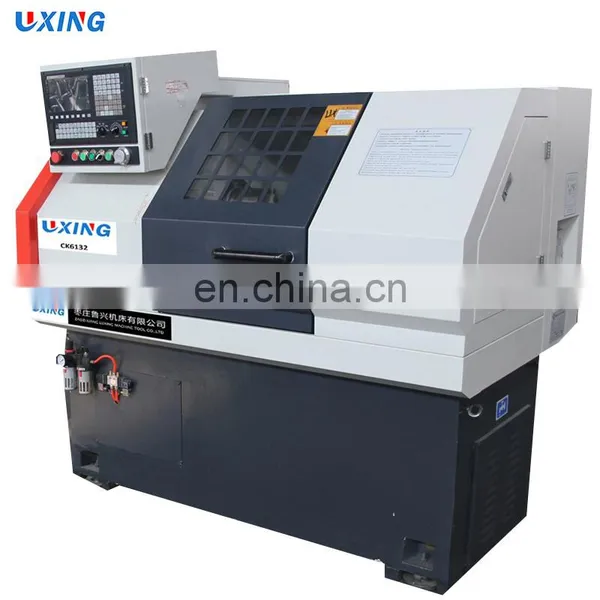

Cheap ck6130 small mini automatic cnc lathe machine turning center price made in china for sale
Product Application:
Automatic CNC lathe machine, metal CNC lathe machine, CNC lathe, automatic CNC lathe, popular CNC lathe is widely used in processing and manufacturing the electrical appliance, instrumentation industry,automobile,motorcycle,fastener bearing,photographic and film machinery,hardware tools,watches,glasses,stationery,motors,valves and gas pipe and other high precise complex components.it is the ideal high efficent equipment in the hardware machining industry.
Product main technical specifications:
|
SPECIFICATIONS |
Units |
CK6130 |
|
Swing over bed |
mm |
300 |
|
Swing over cross slide |
mm |
100 |
|
Max. Processing length |
mm |
Chuck 230mm/collet 320mm |
|
Spindle bore |
mm |
48mm |
|
Bar capacity |
mm |
40mm |
|
Spindle nose type |
- |
A2-5 |
|
Spindle speed range |
rpm |
150-2500 |
|
Turret/tool post |
- |
4 position eletric turret |
|
Clamping type |
|
Collet chuck(Optional:3 jaw chuck) |
|
mm |
±0.005 |
|
|
Tool size |
mm |
16*16 |
|
X axis rapid traverse |
m/min |
4 |
|
Z axis rapid traverse |
m/min |
4 |
|
Tailstock quill diameter |
mm |
Φ52 |
|
Tailstock quill taper |
- |
MT4 |
|
Tailstock quill travel |
mm |
90 |
|
Main spindle motor |
kw |
4 |
|
Machine weight |
kg |
800 |
|
Overall dimension |
mm |
1600x1100x1650 |
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
