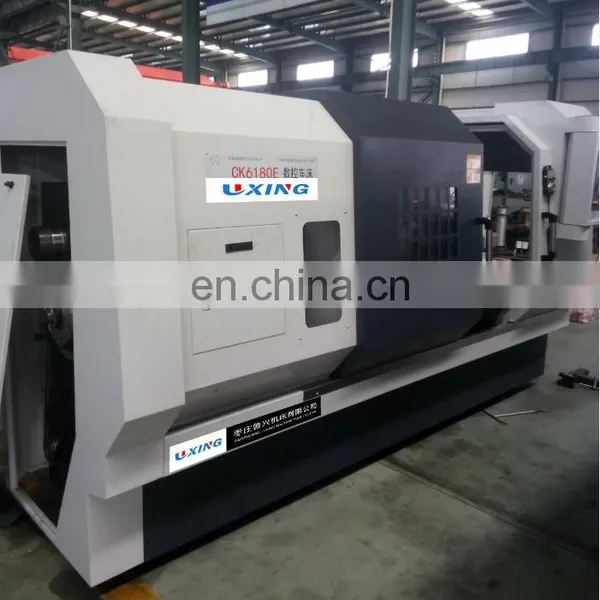

CK6185E Heavy Duty Big Type Large Spindle Bore Flat Bed Cnc Lathe Machine Turning Center
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6130 Auto Small Mini Horizontal Cnc Lathe Machine Turning CenterNegotiableMOQ: 1 -
CAK6140 Flat Bed Cnc Metal Turning Center Lathe Machine From China for SaleNegotiableMOQ: 1
-
CAK6161 Auto Fanuc 0i Control Horizontal CNC Lathe Machine Turning Center TaiwanNegotiableMOQ: 1
-
CK46D-8 Slant Bed Live Tooling Cnc Lathe and Milling Combination Machine Automatic Turning Center PriceNegotiableMOQ: 1
-
TCK6340 Ultra Precision Slant Bed Cnc Milling and Lathe Combonation Machine Turning Center With Linear GuidewayNegotiableMOQ: 1
CK6185E heavy duty big type large spindle bore flat bed cnc lathe machine turning center
Product main technical specifications
Specifications |
Unit |
CK6185E |
CK61100E |
Max.swing over bed |
mm |
Φ850 |
Φ1000 |
Max.swing over cross slide |
mm |
Φ480 |
Φ660 |
cessing length |
mm |
1000/1500/2000/3000 |
1500/2000/3000 |
X/Z axis travel |
mm |
X:450 Z:1200/1700/2200 |
X:530 Z:1600/2100/3100 |
Spindle transmission type |
3 steps variable speed |
3 steps variable speed |
|
Spindle speed steep |
stepless |
stepless |
|
Spindle speed |
rpm |
25-850 |
18-600 |
Spindle nose |
C11 |
C11 |
|
Spindle bore |
mm |
Φ105 |
Φ130 |
Spindle taper |
Metric 120-1:20 |
Metric 140-1:20 |
|
Spindle motor |
kW |
11 |
15 |
Ball screw dia.and pitch |
3205/5010(6310) |
3205/6310 |
|
X/Z axis feed motor torque |
N.m |
X:10 Z:15(22) |
X:10 Z:15(22) |
X/Z axis rapid traverse |
m/min |
4/5 |
4/5 |
X/Z axis repeatability |
mm |
±0.005 |
±0.005 |
Processing accuracy |
IT6-IT7 |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
Ra1.6 |
|
Tailstock sleeve dia. |
mm |
Φ100 |
Φ100 |
Tailstock sleeve travel |
mm |
250 |
250 |
Tailstock sleeve taper |
# |
MT6 |
MT6 |
Tool post type |
4 station electric tool post (optional:6 station turret) |
4 station electric tool post (optional:6 station turret) |
|
Cutting tool shape size |
mm |
32x32 |
40x40 |
Guide form |
Flat bed cnc lathe |
Flat bed cnc lathe |
|
Machine dimension(LxWxH) |
mm |
3300/3800/4300x2000x2000 |
4250/5750/8750x2100x2100 |
Net weight |
kg |
3900/4500/5400 |
4900/8500/13500 |
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Manual mills,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
