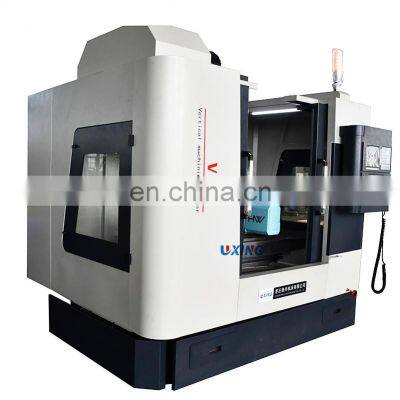

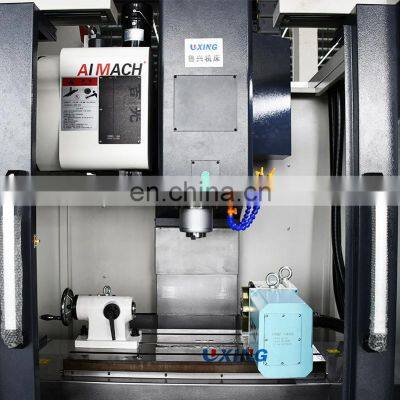

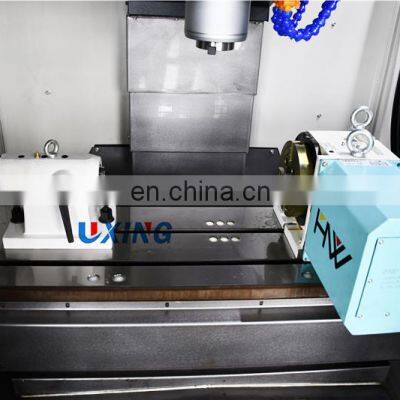

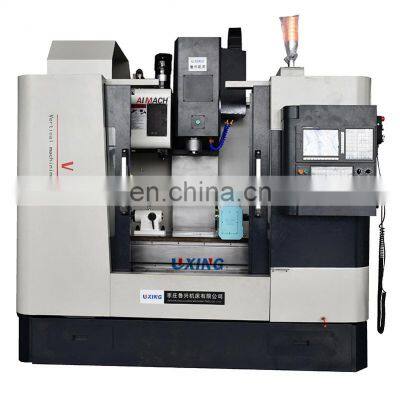

VMC650 Disc Type Atc Tool Changer Vertical Cnc Centre Milling Machine Machining Center With Siemens and Fanuc Price for Sale
VMC650 disc type atc tool changer vertical cnc centre milling machine machining center with siemens and fanuc price for sale
Product Characteristics:
1. Taiwan BT40 Spindle
2. Taiwan ball screw and locking nut
3. Disc type 16T tools
4. Fully-guarded type machine
Product Main Specifications:
|
Specifications |
Unit |
V65 |
|
Table Size (L*W) |
mm |
900×400 |
|
Max. table load |
kg |
400 |
|
T-slot Size |
mm |
3-18-125 |
|
Travel of x,y,z axis |
mm |
650/400/500 |
|
Spindle nose to table surface distance |
mm |
150-650 |
|
Spindle center to Column guide distance |
mm |
496 |
|
Spindle taper |
-- |
BT40 |
|
Spindle speed range |
rpm |
80-8000 |
|
Spindle motor power |
KW |
5.5/7.5 |
|
Spindle drive |
-- |
Belt transmission |
|
Rapid traverse X/Y/Z axis |
m/min |
24/24/24 |
|
Cutting feed of X/Y/Z axis |
mm/min |
1-10000 |
|
Tool Magazine Capacity |
tools |
16 Disc type |
|
Positioning accuracy |
mm |
0.01 |
|
Repeat Positioning accuracy |
mm |
0.005 |
|
Machine Weight |
Kg |
4500 |
|
Dimension |
mm |
2350×2200×2300 |
|
Voltage |
-- |
Customized |
Optional accessory(It need add extra cost.):
The 4th axis.
Hat type tool changer.
Chip conveyor.
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
