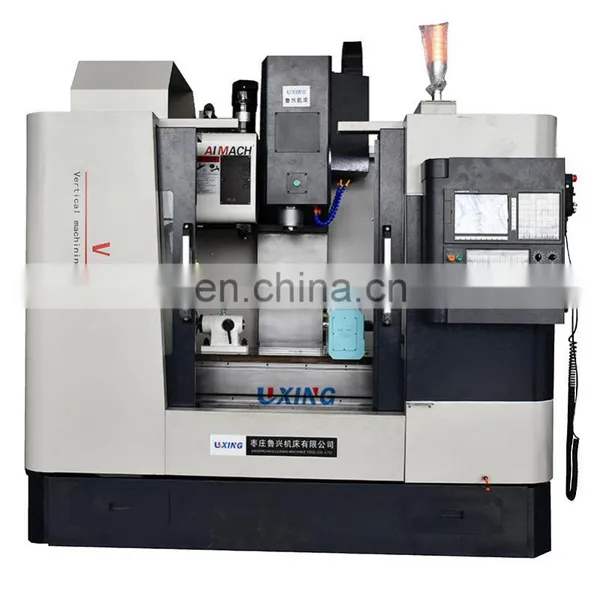

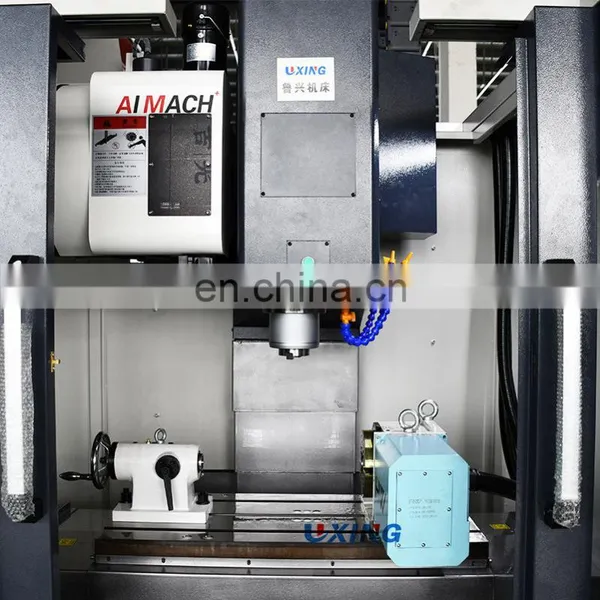

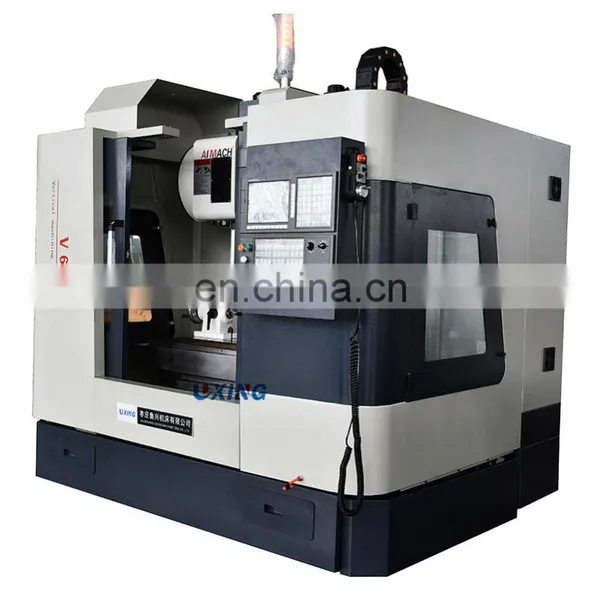

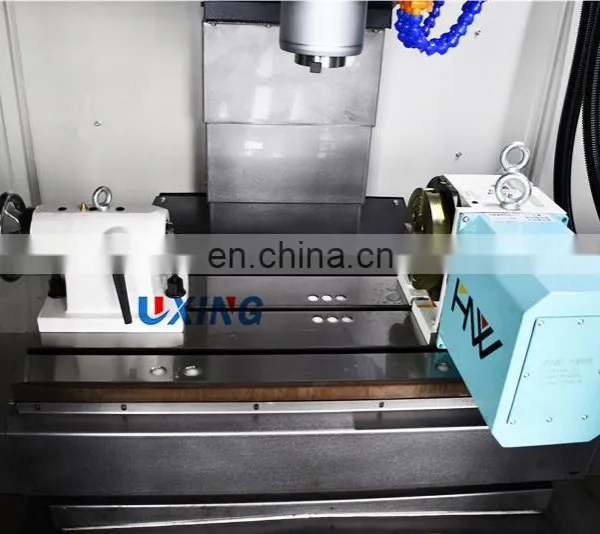

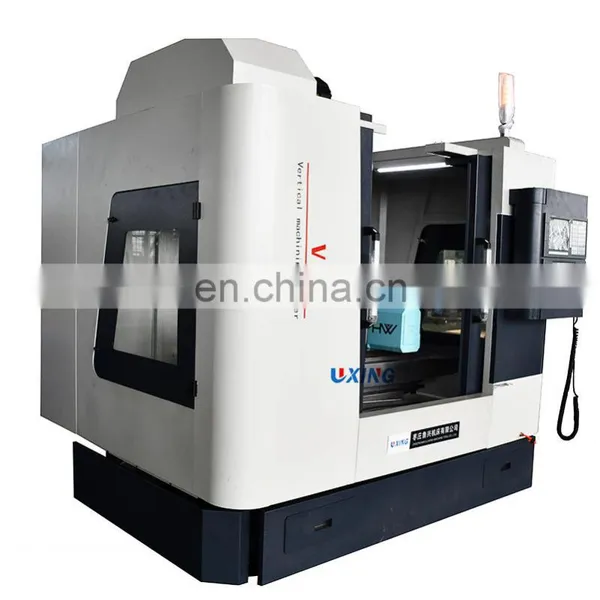

VMC650 High Precision Speed 3/4 Axis Arm Type Cnc Vertical Milling Machine Machining Center Price Factory Manufacturers With CE
VMC650 high precision speed 3/4 axis arm type cnc vertical milling machine machining center price factory manufacturers with CE
Product Characteristics:
1. Taiwan BT40 Spindle
2. Taiwan ball screw and locking nut
3. Disc type 16T tools
4. Fully-guarded type machine
Product Main Specifications:
|
Specifications |
Unit |
V65 |
|
Table Size (L*W) |
mm |
900×400 |
|
Max. table load |
kg |
400 |
|
T-slot Size |
mm |
3-18-125 |
|
Travel of x,y,z axis |
mm |
650/400/500 |
|
Spindle nose to table surface distance |
mm |
150-650 |
|
Spindle center to Column guide distance |
mm |
496 |
|
Spindle taper |
-- |
BT40 |
|
Spindle speed range |
rpm |
80-8000 |
|
Spindle motor power |
KW |
5.5/7.5 |
|
Spindle drive |
-- |
Belt transmission |
|
Rapid traverse X/Y/Z axis |
m/min |
24/24/24 |
|
Cutting feed of X/Y/Z axis |
mm/min |
1-10000 |
|
Tool Magazine Capacity |
tools |
16 Disc type |
|
Positioning accuracy |
mm |
0.01 |
|
Repeat Positioning accuracy |
mm |
0.005 |
|
Machine Weight |
Kg |
4500 |
|
Dimension |
mm |
2350×2200×2300 |
|
Voltage |
-- |
Customized |
Optional accessory(it need add extra cost):
The 4th axis.
Chip conveyor.
Hat type tool changer.
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
