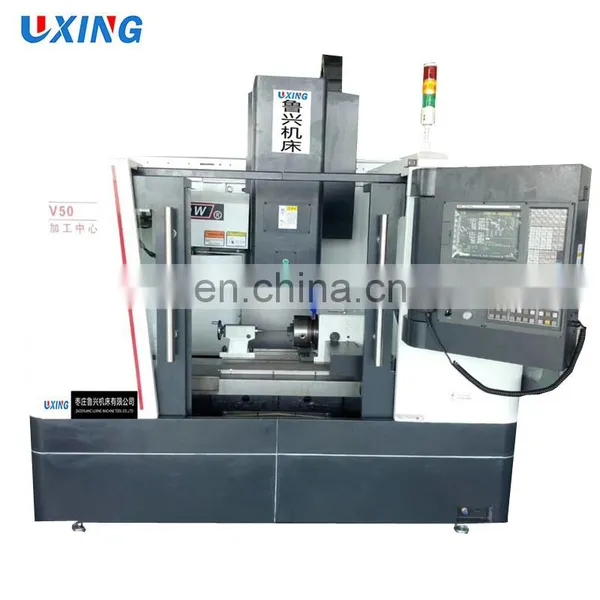

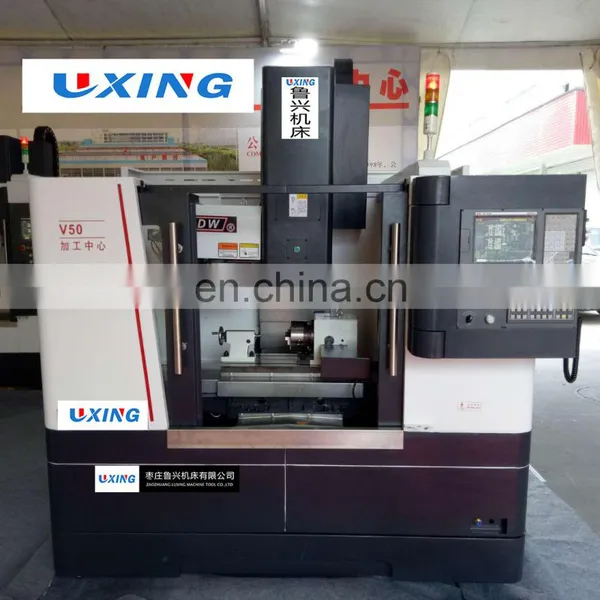

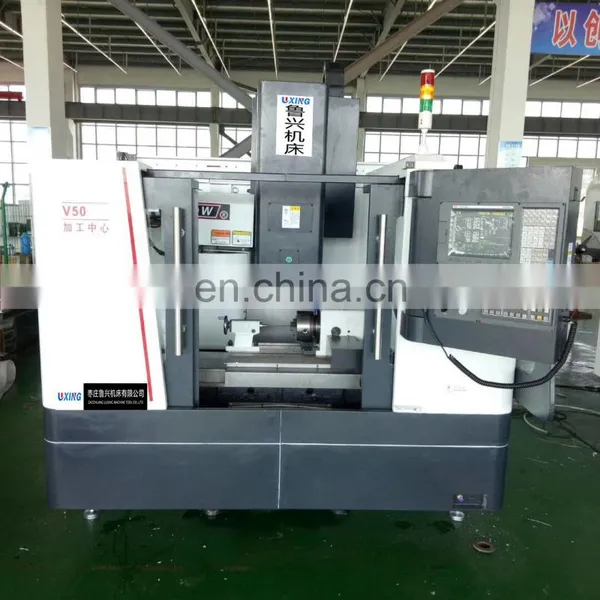

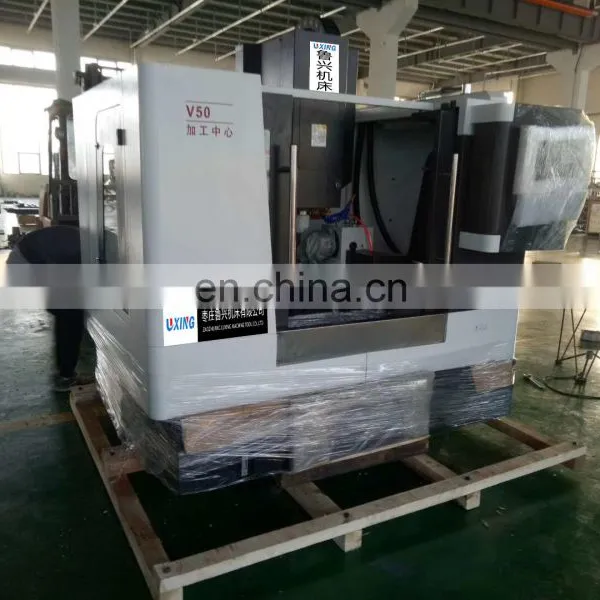

V50 low cost bt30 mini 3 axis CNC vertical milling machine machining center
Product Characteristics:
1. Taiwan BT30 Spindle
2. Taiwan ball screw and locking nut
3. Umbrella type tool Magazine, 8 tools
4. Fully-guarded type machine
Product Main Specifications:
|
Specifications |
Unit |
V50 |
|
Table Size (L*W) |
mm |
700×300 |
|
Max. table load |
kg |
300 |
|
T-slot Size |
mm |
3-14-90 |
|
Travel of x,y,z axis |
mm |
500/300/400 |
|
Spindle nose to table surface distance |
mm |
100-500 |
|
Spindle center to Column guide distance |
mm |
360 |
|
Spindle taper |
-- |
BT30 |
|
Spindle speed range |
rpm |
80-8000 |
|
Spindle motor power |
KW |
2.2/3.7 |
|
Spindle drive |
-- |
Belt transmission |
|
Rapid traverse X/Y/Z axis |
m/min |
20/20/20 |
|
Cutting feed of X/Y/Z axis |
mm/min |
1-5000 |
|
Guide way type |
|
Taiwan linear rail |
|
Tool Magazine Capacity |
tools |
8T Hat type |
|
Positioning accuracy |
mm |
0.012 |
|
Repeat Positioning accuracy |
mm |
0.007 |
|
Machine Weight |
Kg |
2100 |
|
Dimension |
mm |
1900×1800×1900 |
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
