Multifunction Three Phase Energy Meter With Current Alarm Output

Multifunction Three Phase Energy Meter With Current Alarm Output thumbnail-1
Multifunction Three Phase Energy Meter With Current Alarm Output thumbnail-2
Multifunction Three Phase Energy Meter With Current Alarm Output thumbnail-3
Multifunction Three Phase Energy Meter With Current Alarm Output thumbnail-4
Multifunction Three Phase Energy Meter With Current Alarm Output thumbnail-5
Multifunction Three Phase Energy Meter With Current Alarm Output photo-1

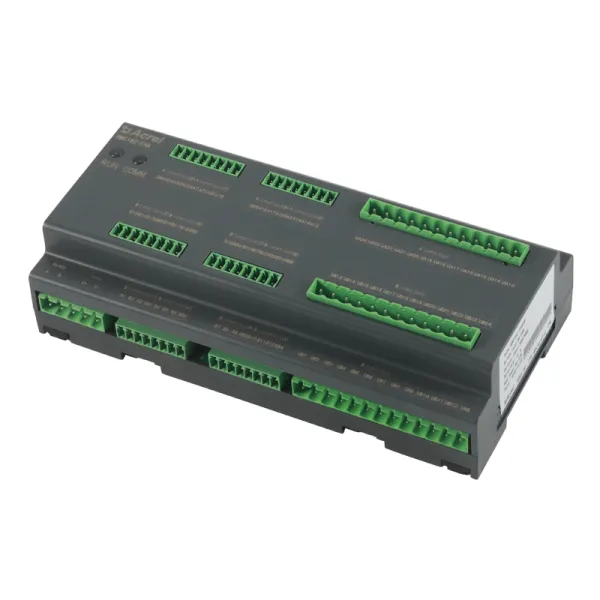

Multifunction Three Phase Energy Meter With Current Alarm Output photo-2

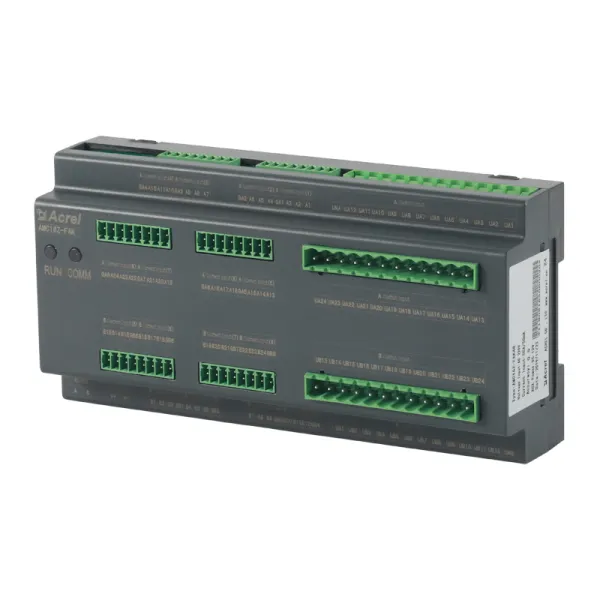

Multifunction Three Phase Energy Meter With Current Alarm Output photo-3

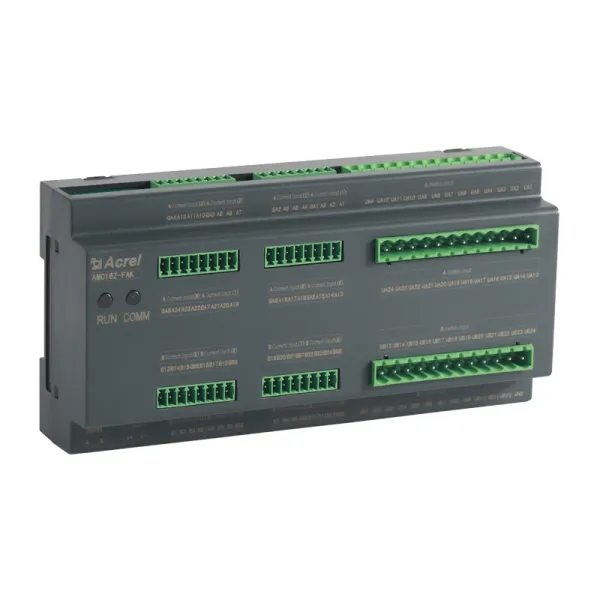

Multifunction Three Phase Energy Meter With Current Alarm Output photo-4
Multifunction Three Phase Energy Meter With Current Alarm Output photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AMC16Z-FAK
Contact Supplier Request Quote Chat Now
Acrel Electric Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number AMC16Z-FAK
Phase Three Phase
Operating Temperature -15~+55℃
Dimensions 180mm*94.3mm*75mm
Display Type Analog Only
Accuracy Class 1

AMC16 series multi circuit monitoring device is a measuring device designed specifically for the power supply management of server in the data center.


Such device is small and exquisite in design, capable of centralized monitoring on various electric parameters and on-off states of dozens of circuits,including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.


Charactristics

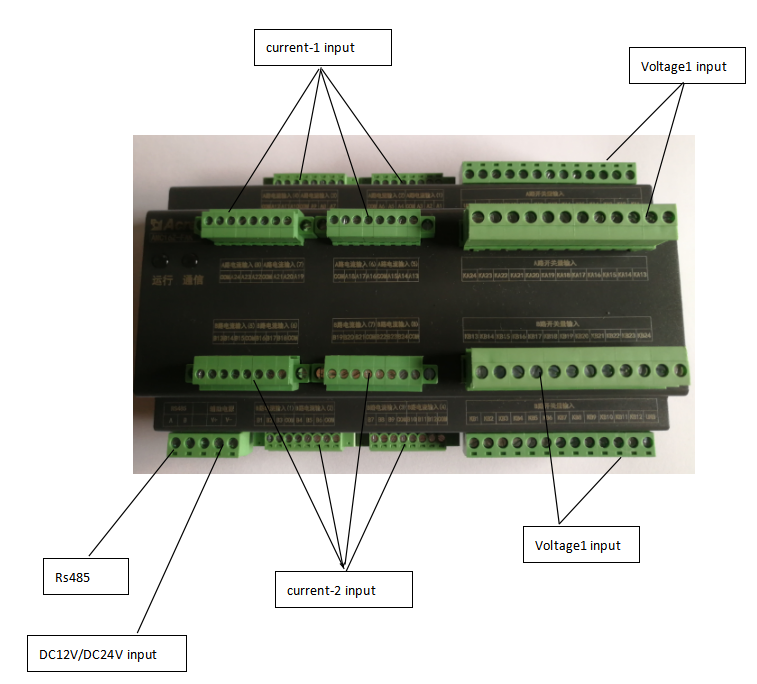

Main Functions


FUNCTIONS AMC16Z-FAK48.png

  • Measuring A+B dual channel 48 sub channel AC outgoing line 24 sub channel all parameters and switch status, 1 channel RS485

  • Voltage,current,power,energy and DI DO

  • Rated voltage:AC 220V

  • Current:50ma outgoing

  • Power supply:DC12V


 Dimensions and Wirings



  • AMC16Z-FAK48(multi channel.png





Datasheet


Model
AMC16Z-FAK48
Measuring parameters
voltage,current,power,energy and DI DO
Busbar voltage
Rated voltage
220VAC
Measuring range
±20%
overload
instant voltage 2 times/second
current outlet circuit
Rated range
50mA（50ma output current transformer)
overload
sustained 1.2times,instantaneous current 10times/second
accuracy
outlet
current,voltage class: 0.5 power,energy: 1
Auxiliary power supply
DC12V
Communication
RS485/Modbus-RTU
Installation
DIN35mm or panel type
Waterproof level
IP20


Product Tags: Protection Relay , Motor protection device , microcomputer protection relay
