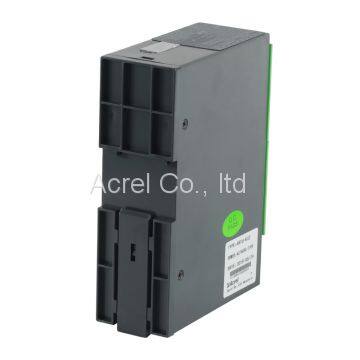

Help CenterAcrel ARTU-K32 Series Din Rail Mounting Remote Terminal Unit
Related Products
-
Acrel ARTU-KJ8 Switch State Acquisition DeviceNegotiableMOQ: 1 Piece -
Acrel ARTU-KJ8 Din Rail Remote Monitoring Unit With Power RelayNegotiableMOQ: 1 Piece
-
Acrel ARTU-K32 Din Rail Installation Switching Acquisition UnitNegotiableMOQ: 1 Piece
-
AM2 Protection Device Relay With RS485 Serial Communication Modbus-RTUNegotiableMOQ: 1 Piece
-
AM4-I Undervoltage Alarm Medium Voltage Application Protection RelayNegotiableMOQ: 1 Piece
General
ARTU distributed monitoring and control devices is a high-performance components used in intelligent power distribution, industrial automation, and other fields.Products include: remote control unit, remote signaling unit.It has a channel status light and a communication status light.It has two-way communication interface,one is used to set the general parameters and commissioning,another is used to read and set the "four remote" value.Product’s address and baud rate can be set by PC and local DIP switch.Products using the software and hardware "watchdog" technology to prevent freezing. The user's Guide applies to ARTU distributed monitoring and control devices
Functions
Auxiliary power supply |
DC 24V / AC/DC 220V (AC85-275V/DC100-350V) |
Power consumption |
≤5W |
Working temperature |
-5℃~+55℃ |
Frequency |
≤500Hz |
Relative humidity |
≤95%（No condensation） |
Input consumption |
Power supply: power consumtion ≤5W |
Storage temperature |
-25℃~+70℃ |
Altitude |
≤2500m |
Technical Parameters
Technical parameters |
Specifications |
input circuit |
32 |
Input |
Active wet contact（DC12V）or passive dry contact |
Communications |
RS485 port (Modbus RTU) |
Bus capacity |
≤32 |
Resolution(SOE) |
Ability to distinguish between multiple contact successive changes:When any two contacts displacement interval is greater than 1ms,Ability to distinguish between cells (less than 2ms) can be reflected in the SOE. |
Scan time |
1ms |
Filter time |
1ms |
SOE capacity |
1600 Sets |
Wiring
