Product Description

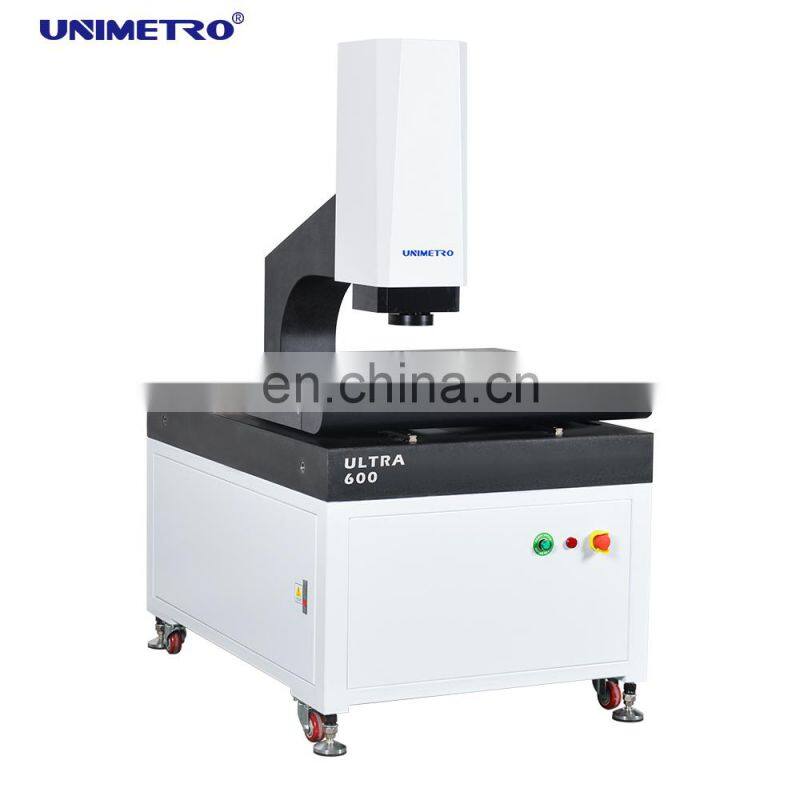

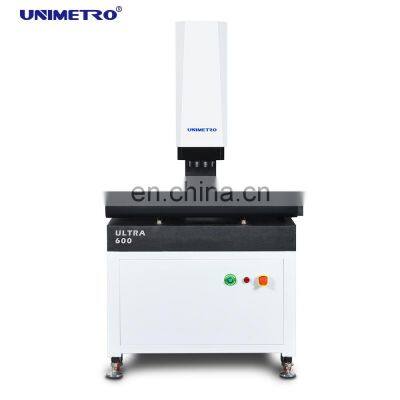

ULTRA series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.

PRODUCT CHARACTERISTCS

▶Granite base and column, excellent stability; ▶Aluminum work stage,make the motion control fast reacting and flexible; ▶Work stage with hard oxidation surface processing anti-scratch; ▶Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system; ▶Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable. ▶XYZ three axis CNC automatic control and accurate positioning; ▶0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system; ▶GIGA high resolution color camera to meet the needs of clear observation and accurate measurement; ▶6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed; ▶With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.

SOFTWARE FUNCTION

Efficient measurement software

▶With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function; ▶Simple and easy to understand operation interface makes measurement more simple and efficient; ▶Automatic measurement program can be set to complete batch measurement efficiently and quickly.

OPTIONAL ACCESSORIES

Flexible expansibility

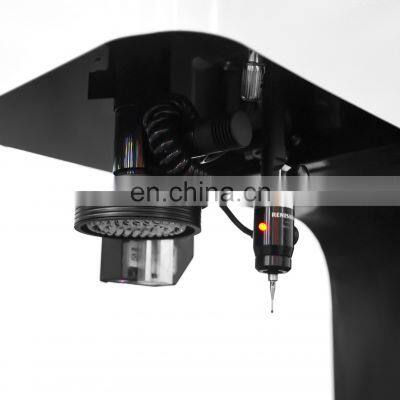

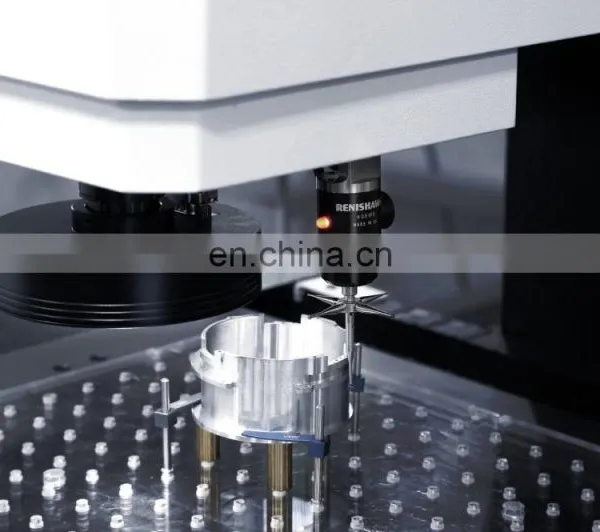

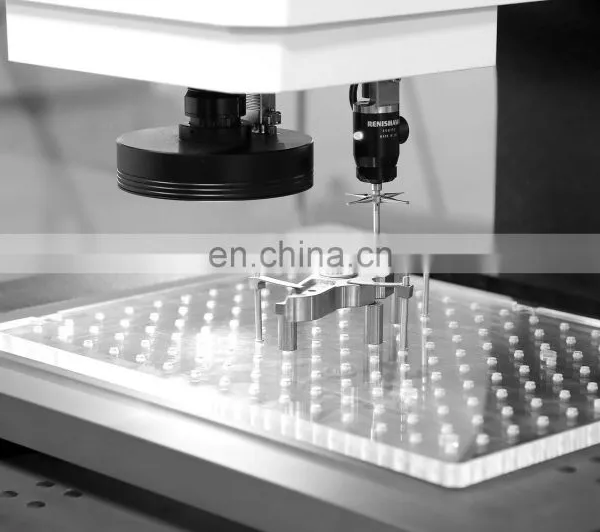

▶Multi types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers ▶Mavable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application. ▶Thanks to the flexible expansibility of ULTRA series, it is compatible with touch probe,non-contact measuring sensors and robot arm,highly increase the measuring efficiency,

PARAMETER

Product Name			ULTRA Series Automatic Vision Measuring Machine
Model			ULTRA 300	ULTRA 400	ULTRA 500	ULTRA 600
X/Y-axis Travel(mm)			300x200	400x300	500x400	600*500
Z-axis Travel			200mm (can be raised according to the requirements of customers)
X/Y/Z-3 axis Linear Scale			Glass Linear Scale Resolution: 0.1um
Guidance Mode			Precision linear guide，double-track double slider guide.
Operation Mode			Joystick controller, Mouse operation, automatic detection program.
Accuracy			XYZ-axis：≤2.5+L/200um
Repeatability			±2.5um
Video System	CCD	High definition 1/3" Color CCD Camera
Video System		Lens	6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor)
Illumination System	Contour	LED parallel contour illumination
Illumination System		Surface	0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Magnification			0.7X~4.5X
Measuring Software			UNIMETRO 2D Fully Auto Measuring Software
Load Capacity			25Kg
Working Environment			Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Power Supply			220V/50Hz/10A
Ddimension(WDH)(mm)			16007801700	17509201700	1900x1080x1700	105012801700
Net Weight(kg)			380	450	600	800

L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece. **Magnification is approximate value, it is related to the dimension of monitor and resolution. Field of view(mm) = (diagonal*Horizontal*Vertical) 0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.

AFTER-SALES SERVICE

LOGISTICS

ABOUT US

Dongguan UNIMETRO Precision Machinery Co., Ltd

Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!

FAQ

Q: Are you a factory or trading company ? A: We are a factory and giving you the quickest reply in 24 hours. Q: What's your company mainly in? A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc. Q: How to Choose the Appropriate Specification? A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications. Q: Do you accept customized service? A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs. Q: What is your warranty period? A: Our product warranty period is 2 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
