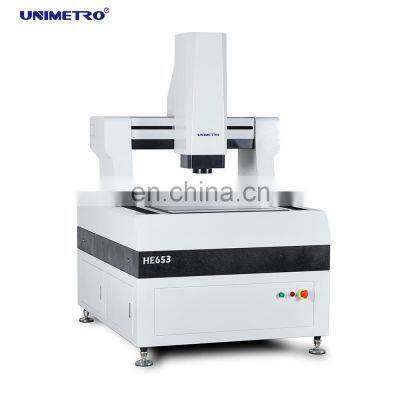

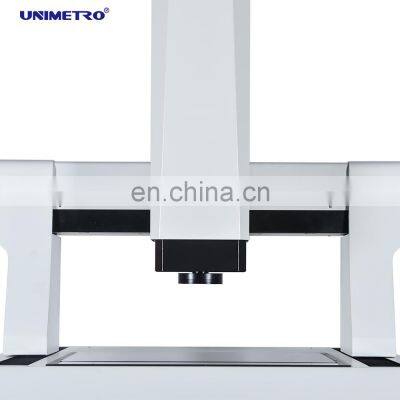

UNIMETRO Large Format Optical CMM Video Coordinate Measuring Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products

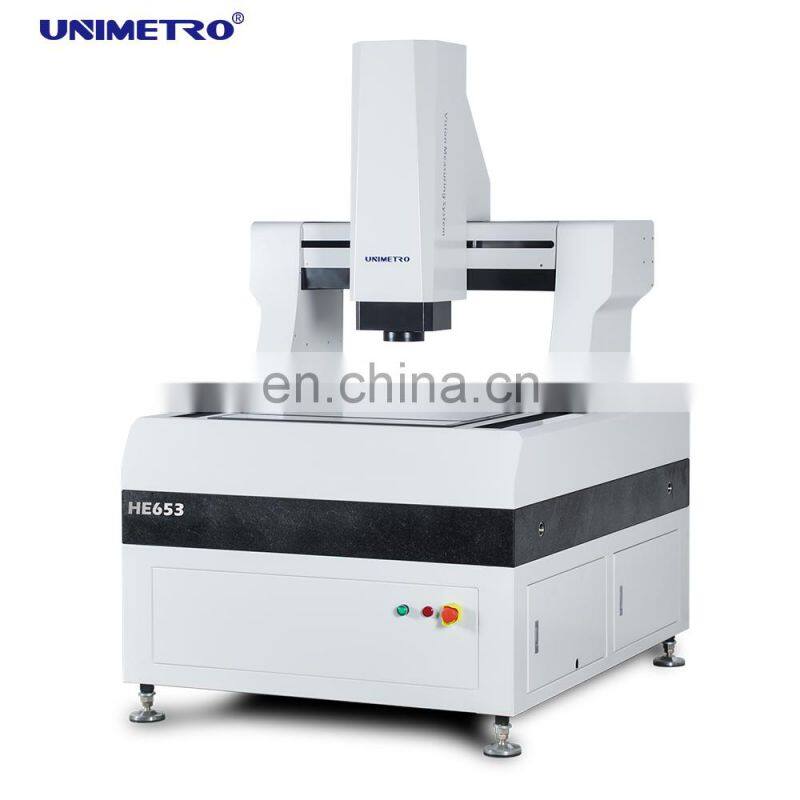

He series of high-efficiency gantry type automatic vision measurement system is specially designed for high-precision and large-scale measurement. It adopts fully closed mobile bridge structure to keep the measurement work fixed. It combines high-precision and high-efficiency organically to effectively detect the geometric parameters of various products. At present, it is mainly used in PCB circuit board, copper clad laminate, flat glass, liquid crystal module, knife mould, insulating material, precision sheet metal and other
PRODUCT CHARACTERISTCS
▶Granite base and column, excellent stability;
▶Aluminum work stage,make the motion control fast reacting and flexible;
▶Work stage with hard oxidation surface processing anti-scratch;
▶Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
▶Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
▶XYZ three axis CNC automatic control and accurate positioning;
▶0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
▶GIGA high resolution color camera to meet the needs of clear observation and accurate measurement;
▶6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;
▶With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.
SOFTWARE FUNCTION
Efficient measurement software
▶With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
▶Simple and easy to understand operation interface makes measurement more simple and efficient;
▶Automatic measurement program can be set to complete batch measurement efficiently and quickly.

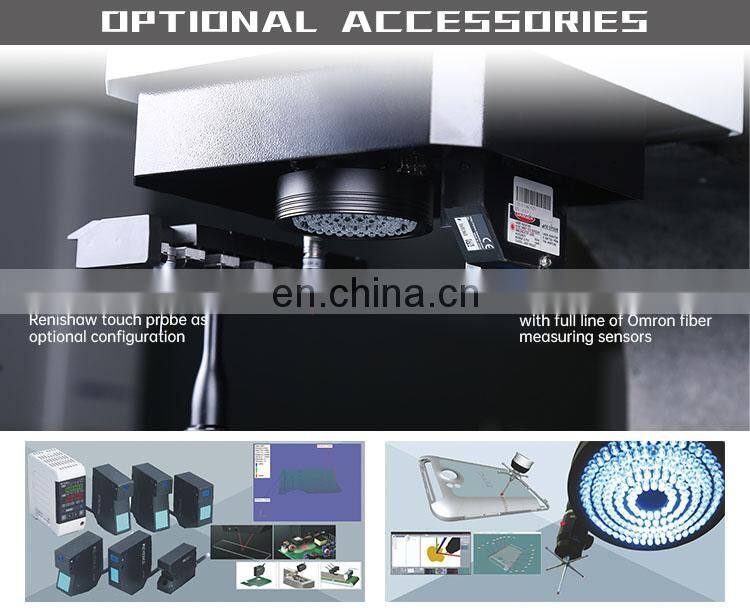

OPTIONAL ACCESSORIES
Flexible expansibility
▶Multi types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers
▶Mavable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
▶Thanks to the flexible expansibility of ULTRA series, it is compatible with touch probe,non-contact measuring sensors and robot arm,highly increase the measuring efficiency,
PARAMETER
Product Name |
HE Series Automatic Vision Measuring Machine |
||||||||
Model |
HE 652 |
HE 862 |
HE 1080 |
HE 1210 |
|||||
X/Y-axis Travel(mm) |
600x500 |
600*800 |
800*1000 |
1000*1200 |
|||||
Z-axis Travel |
200mm (can be raised according to the requirements of customers) |
||||||||
X/Y/Z-3 axis Linear Scale |
Renishaw open type Glass Linear Scale Resolution: 0.5um (0.1um for option) |
||||||||
Guidance Mode |
Precision linear guide，Ball screw grinding ,double-track double slider guide. |
||||||||
Operation Mode |
Joystick controller, Mouse operation, automatic detection program. |
||||||||
Accuracy |
XYZ-axis：≤2.5+L/200um |
||||||||
Repeatability |
±2.5um |
||||||||
Video
System
|
CCD |
2M High definition 1/3" Color CCD Camera |
|||||||
Lens |
6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X;
Video Magnification: 26X~172X(21.5”monitor)
|
||||||||
Illumination
System
|
Contour |
LED parallel contour illumination |
|||||||
Surface |
0~255 Stepless adjustable 5-ring 8-division LED surface illumination |
||||||||
Magnification |
0.7X~4.5X |
||||||||
Measuring Software |
INSPECT 3D Fully Auto Measuring Software |
||||||||
Load Capacity |
25Kg |
||||||||
Working Environment |
Temperature 20℃±2℃，Humidity Range<2℃/hr,
Humidity 30~80%, Vibration<0.002g, <15Hz
|
||||||||
Power Supply |
220V/50Hz/10A |
||||||||
Ddimension(W*D*H)(mm) |
1700*1180*1750 |
1700*1280*1750 |
1900x1480x1700 |
2100*1680*1700 |
|||||
Net Weight(kg) |
1500 |
1800 |
2900 |
3200 |
|||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
AFTER-SALES SERVICE
LOGISTICS
ABOUT US
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
FAQ
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.
Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is 2 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
