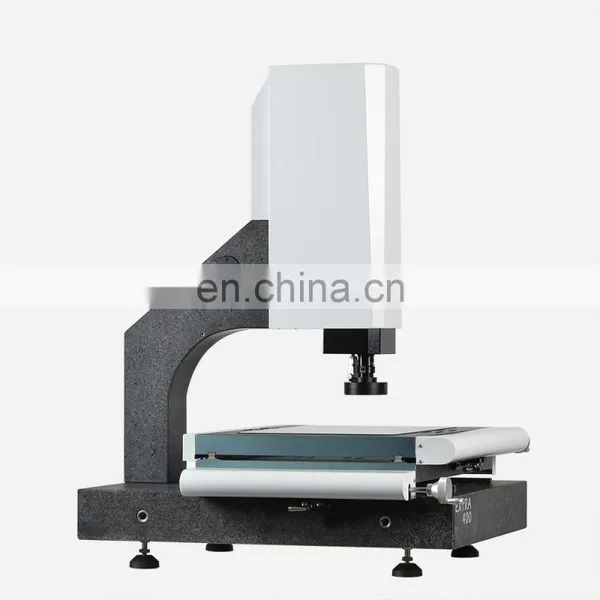

VMM Video Measuring Machine
The EXTRA series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space.
The EXTRA series is using high accuracy linear slide way, which is totally different from the cross slide way used for other
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
Items |
EXTRA200 |
EXTRA300 |
EXTRA400 |
EXTRA500 |
|||||
Dimension(mm)( L * W * H ) |
500*540*930 |
600*740*980 |
700*840*980 |
800*940*980 |
|||||
Measuring range (mm)( X * Y * Z ) |
200*100*150 |
300*200*200 |
400*300*200 |
500*400*200 |
|||||
Measuring Accuracy ( µ m ) |
2.5+L/100 |
2.5+L/100 |
2.5+L/100 |
3+L/100 |
|||||
Repeatability ( µ m ) |
2.5 |
2.5 |
2.5 |
3 |
|||||
Weight ( kg ) |
140kg |
190kg |
240kg |
290kg |
|||||
Image and Measuring |
CCD |
Industrial grade color CCD camera |
|||||||
Lens |
Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X |
||||||||
Magnification |
18-195X ( For reference only. With different camera and lens the magnification will be different. ) |
||||||||
Field of View |
8.1~1.3mm |
||||||||
Working distance |
108mm |
||||||||
Linear scale resolution |
0.5 µ m ( 0.1µ m for option ) |
||||||||
Driving system |
X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available |
||||||||
Illumination |
Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for optio |
||||||||
HARDEARE CONFIGURATION
HIWIN linear guide way
Aluminum work stage and hard anodizing
Integrated core control box
Multi function LED parallel light group
.
3 axis 0.5um resolution linear scales
Industrial grade high resolution CCD camera
0.7-4.5X manual dented zoom lens with high repeatability
Supporting multiple external accessories
SOFTWARE FUNCTION
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
AFTRE-SALES SERVICE
30 minute quick response
7 x 24-hour online customer service
Online video service
Telephone hotline
Technician one-to-one service
Online video service
Telephone hotline
Technician one-to-one service
L/C letter of credit
D/A documents against acceptance
D/P Documents against Payment
T/T Telegraphic Transfer
Western union
Money gram
