Product Overview

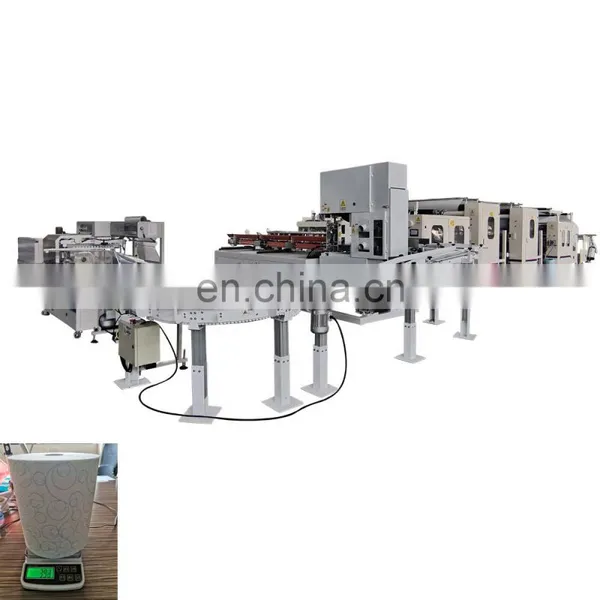

XY-TQ-A-H High Speed Maxi Roll Paper Machine Production Line
Outline
This production line consists of Wall Type Automatic Rewinding Machine, Band saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.
This production line consists of Wall Type Automatic Rewinding Machine, Band saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.
XY-TQ-B Full automatic toilet paper and kitchen towel machine
Outline
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing
or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can
working with cutting machine and packing machine to become the finished products. The machine is
controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to
operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can
working with cutting machine and packing machine to become the finished products. The machine is
controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to
operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https: https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY
Function and Features
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical Parameters
Model | XY-TQ-B |
Jumbo Roll Width | 1750mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Core Diameter | 3inches(76.2mm) |
Perforation Distance | 4 anvil Blades（115mm.、230mm）(Other size can be specified) |
Finished Product Diameter | Φ80~φ280mm |
Finished Product Inner Diameter | φ38~φ76mm |
Production Speed | 200-230m/min |
Program Controller | PLC |
Jumbo roll paper stand | 1 or 3 Stands（Need to be specified） |
Pneumatic System | 0.5~0.8MPA（Provide by user） |
Main Power | 18KW |
Overall Dimension | 10000*3000*2000(L*W*H) |
Weight | About 12T(wall board structure)(Other size can be specified) |
Jumbo Roll Layers | 1~3plys,14~30gsm Toilet paper or kitchen towel |
Edge-Line Embossing(can be specified) | Steel to steel (Pneumatic Control) |
Embossment (can be specified) | Steel to Rubber, Double Sets |
Voltage | 380V 50HZ |
XY-AI-500 Automatic Maxi Roll Band Saw Cutting Machine
The equipment is the latest research and development which is the extension of the company with the current market situation.Using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Video Link: https://youtu.be/31Jpq3zsl74
https://youtu.be/Xx0Xflc4ZT8
The equipment is the latest research and development which is the extension of the company with the current market situation.Using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Video Link: https://youtu.be/31Jpq3zsl74
https://youtu.be/Xx0Xflc4ZT8
Function and Features
1.The main motor using the inverter independent drive.
2.For one set of machine, the cutting diameter of paper roll is adjustable as 150~250mm.
3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding
adjustment according to the blade loss.
adjustment according to the blade loss.
4.The grinding system is equipped with an independent dust removal device to ensure the working environment.
5.The band saw adopts hydraulic tension system to ensure the tension of band saw.
6.It will be automatic stop and alarm when the knife is broken.
7.High precision servo system is used to ensure the quality of finished products.
8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
9.The device stops working and prompts the interface when the input data is wrong.
10.Using band saw for cutting and reduces the cost of use of users.
11.The thickness of finished paper core should less 3mm.(Suggestion)
Cutting speed | 15-30cuts/minute |
Cutting channel | single channel |
Cutting blade | band saw blade(18,000--20,000 rolls/blade) |
Cutting blade size | 5180*100*1.05 |
Log length | ≦2200mm or ≦2850mm |
Tolerance | ±2mm |
Cutting length | ≦300mm |
Cutting diameter | 100-280mm(Adjustable) |
Thickness of paper core | ≦3 mm |
Power supply | 15KW 3 phase 4line 380V 50HZ |
Machine weight | 2700KG |
Overall size of machine | 4600*2350*2200mm（2.2m jumbo roll） 5300*2350*2200mm (2.2-2.85m jumbo roll) |
Separated size | Main machine: 4600*1700*2200mm（2.2m jumbo roll） Paper storage: 1500*1650*900mm |
Main machine: 5300*1700*2000mm(2.2-3m jumbo roll) Paper storage: 1700*1650*900mm |
XY-TN-269 Automatic Maxi Roll Paper Shrink packing machine
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
Video Link: https://youtu.be/EHQ4TJbXi7w
https://youtu.be/pNuNOA61PMs
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
Video Link: https://youtu.be/EHQ4TJbXi7w
https://youtu.be/pNuNOA61PMs
Technical Parameters
Model | 4525L cutting and sealing machine | 4525 temperature shrink machine |
Power source | 220V 50HZ | 380V 50HZ |
Rated Power | 1.35KW | 9.6KW |
Sealing Size(L*W)mm | 550*450 | 450*220*120 |
Packing speed | 20-40 Packs /min | 0-10m/min |
Packaging Size(L*W*H)mm | 450 * 400 *120 | 450*220*120 |
Machine size(L*W*H)mm | 1500*750*1360 | 1600*700*1300 |
Weight | 300KG | 150KG |
