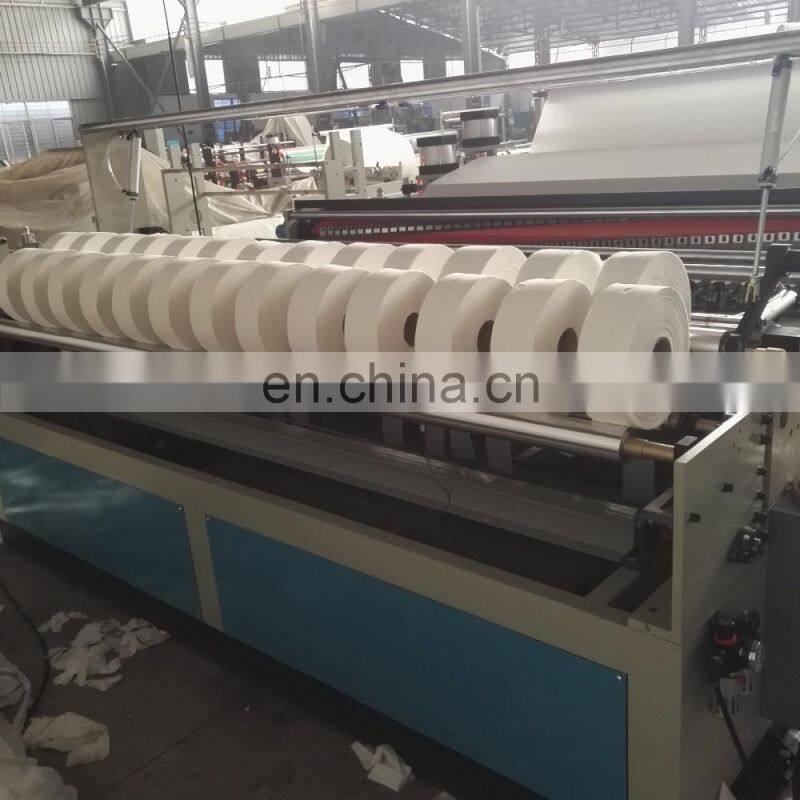

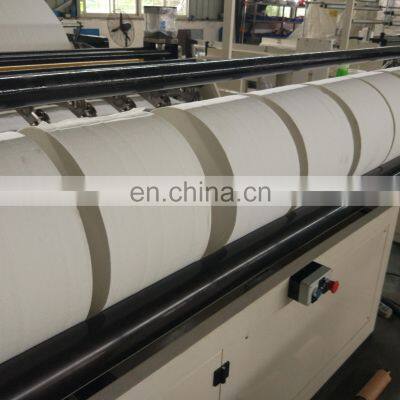

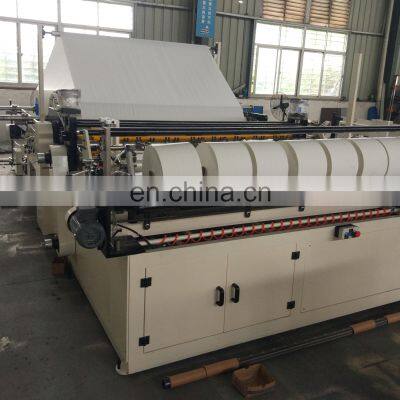

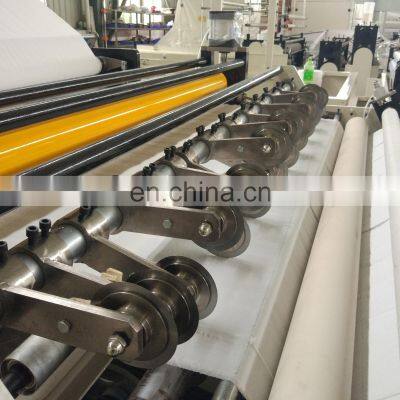

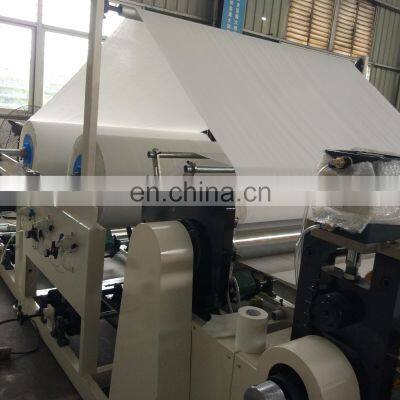

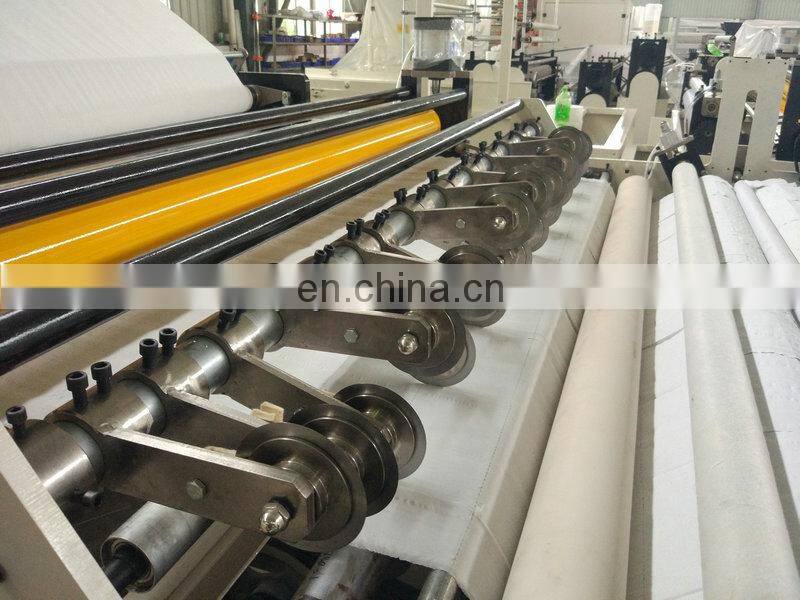

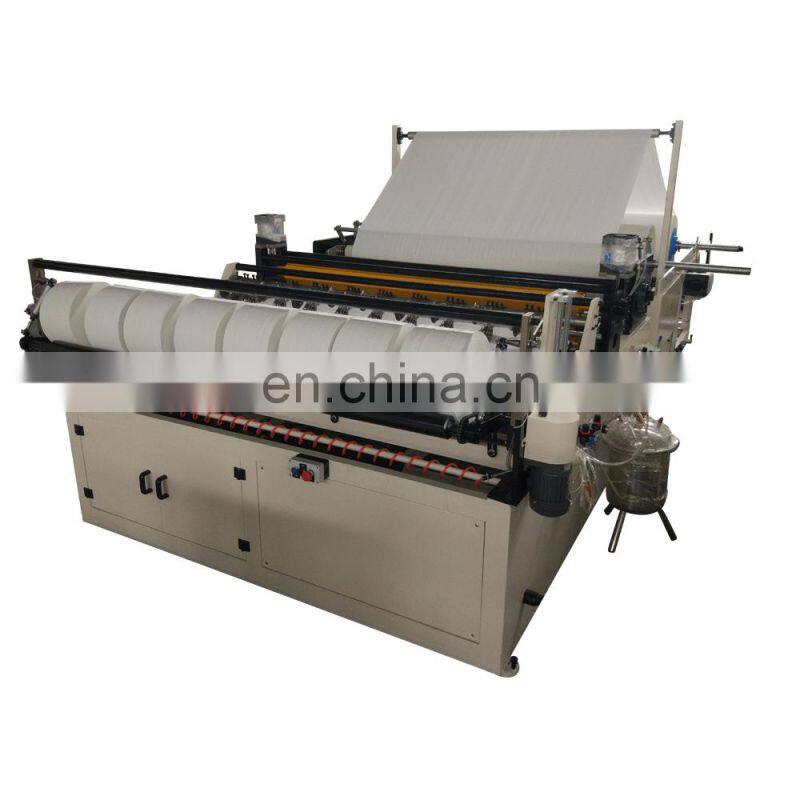

Automatic Toilet Paper Roll Rewinding Slitting Machine

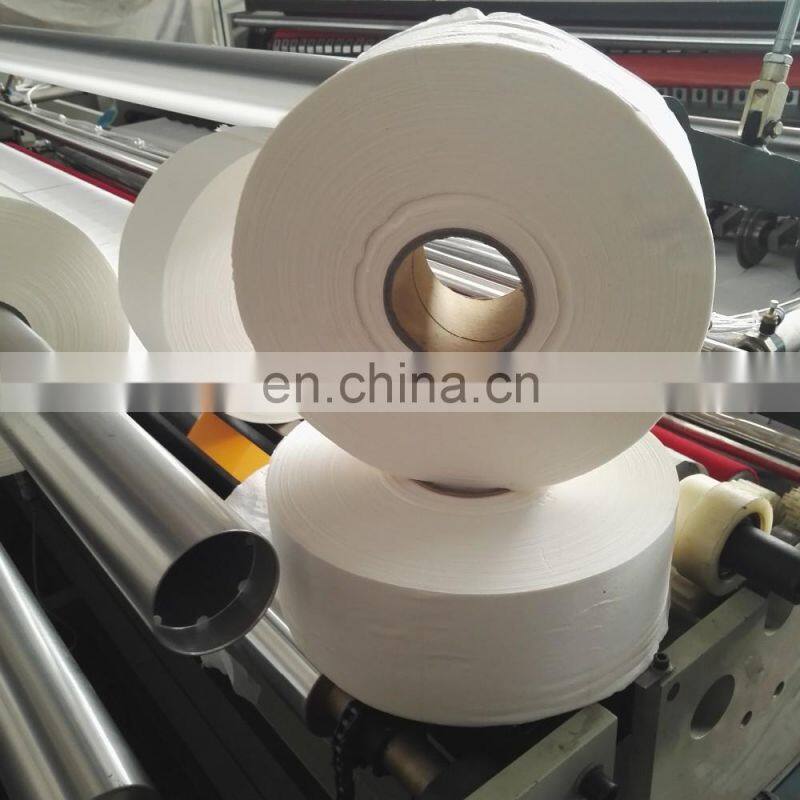

This equipment produces jumbo roll toilet paper and towel roll. It has the automatic function of embossment, perforation, slitting and rewinding ,all of them can be finished on one time. This machine equipped with pneumatic jumbo roll lifter , pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for reeling.

Main technical parameter
1.Specification of jumbo roll: Diameter 1200(mm) Width 1200-2750(mm)
2.Specification of finished product:
   Diameter 1200(mm)width100~2750(mm)(According to customer requirements)
3.Production capacity: 0~200m/min
4.Motor power: 2.2-10Kw ,380V,50/60HZ
5.Overall size: 4000x2540x1500(mm)(LxWxH)

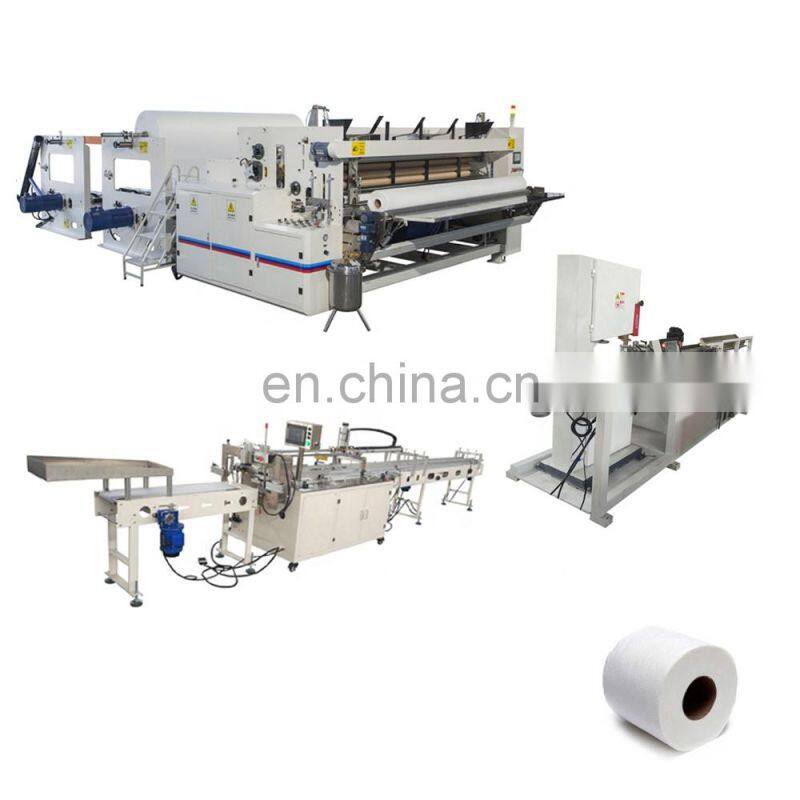

The production process is: Unreeling — Embossing — Perforating — Slitting — Rewinding.

1. This automatic small base paper roll making machine is designed with computer control system,

      fully automatic in production process, the function is complete and the production speed is high.
2. It can automatically change the core, spray the glue and seals without stopping the machine
     and also automatically raise and lower speed when exchanging the core.
3. When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.
4. Equipped with automatic alarm to indicate filling up of core pipe.
    The machine will be automatically stopped when there is no core pipes.
5. Automatic alarm for breaking off of paper.
6. Equipped separate tension control for each unwinding jumbo roll.
7. It is convenient to change the feature to produce any other core pipe winding.
8. Left paper remind after sealing of product for convenient use.

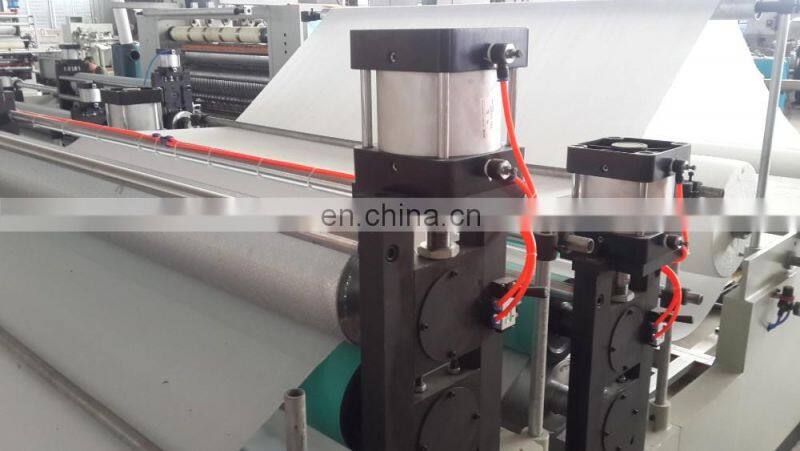

9. Jumbo roll stand is installed by pneumatic.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine,

   training how to use the machine.
* Engineers available to service machinery overseas.

1) Toilet Paper Machine
(1.2m--2.8m width of parent roll)
2) Roll Kitchen Paper Towel Machine
(1.2m--2.8m width of parent roll, )
3) Facial Tissue Machine (2-10 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold,
     1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine

    (C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All Tissue Paper Cutting and Packing Machine
8)  Household Paper Equipments
