Products Description
Kitchen towel and toilet paper manufacturing machine XY-TQ-C
PRODUCT APPLICATION
Automatic Wrapper Type High Speed Kitchen Towel/Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll and kitchen processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

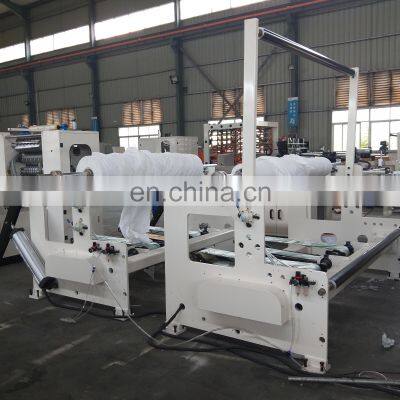

7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Automatic Wrapper Type High Speed Kitchen Towel/Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll and kitchen processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.

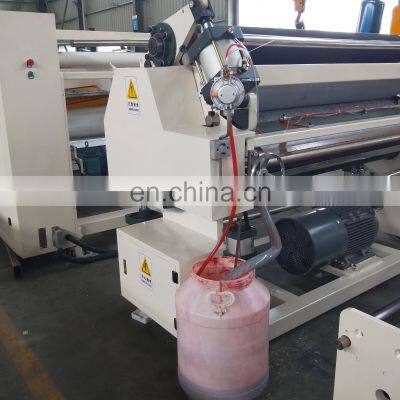

9. Color glue lamination system can make beautiful kitchen towel and color glue toilet paper.
Video Link:https://youtu.be/K6beMeK9ZiE
Video Link:https://youtu.be/K6beMeK9ZiE
Automatic maxi roll toilet paper machine | ||||||||
Jumbo Roll Max Width | 2800mm (Other size can be specified) | |||||||
Jumbo Roll Diameter | Φ1100mm(Other size can be specified) | |||||||
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) | |||||||
Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) | |||||||
Finished Product Diameter | Φ80~φ280mm | |||||||
Finished Product Core Diameter | φ38~φ76mm | |||||||
Production Speed | 0~230m/min | |||||||
Program Controller | PLC(DELTA OR INVT need to confirm) | |||||||
Unwind Stands | 1 or 3 Stands(Need to be specified) | |||||||
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) | |||||||
Main Power | 14KW 380V 50HZ | |||||||
Dimension | 7000*4000*1900(L*W*H) | |||||||
Weight | About 7T | |||||||
Edge-Line Embossing | Steel to steel (Pneumatic Control) | |||||||

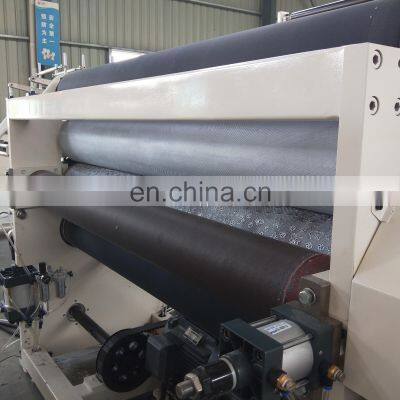

Full Embossment | Steel to rubber and color glue lamination system | |||||||
Details Images
