High Capacity and High Quality Small Toilet Tissue Paper Making Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Kraft Paper Roll Core Making MachineNegotiableMOQ: 1 -
How to Start a Tissue Paper Manufacturing Machine BusinessNegotiableMOQ: 1
-
High Speed Embossing Rewinding Toilet Tissue Paper Making MachineNegotiableMOQ: 1
-
Automatic Toilet Tissue Product Type Toilet Paper Making MachineNegotiableMOQ: 1
-
PLC Control and Touch Screen Operation System Computerized Toilet Roll Paper Production LineNegotiableMOQ: 1
Products Description

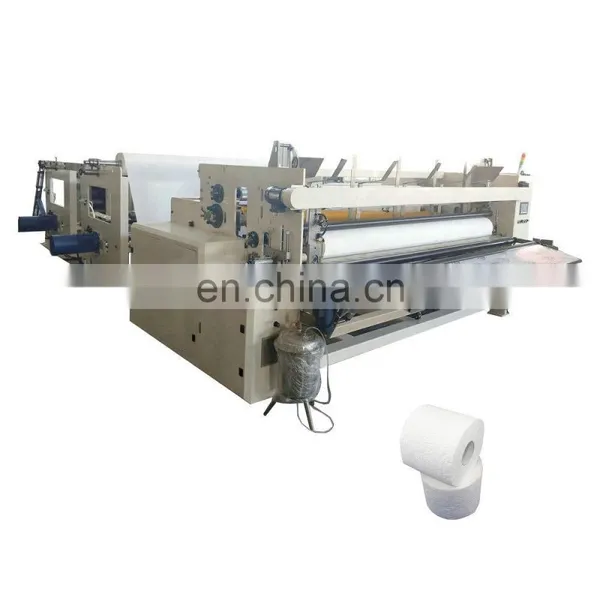

High capacity and high quality small toilet tissue paper making machine XY-TQ-B
PRODUCT APPLICATION
Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine
have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and
spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower
the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/GK44fR9n5tI
Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine
have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and
spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower
the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/GK44fR9n5tI
Automatic maxi roll toilet paper machine | ||||||||
Jumbo Roll Max Width | 2800mm (Other size can be specified) | |||||||
Jumbo Roll Diameter | Φ1100mm(Other size can be specified) | |||||||
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) | |||||||
Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) | |||||||
Finished Product Diameter | Φ80~φ280mm | |||||||
Finished Product Core Diameter | φ38~φ76mm | |||||||
Production Speed | 0~230m/min | |||||||
Program Controller | PLC(DELTA OR INVT need to confirm) | |||||||
Unwind Stands | 1 or 3 Stands(Need to be specified) | |||||||
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) | |||||||
Main Power | 14KW 380V 50HZ | |||||||
Dimension | 7000*4000*1900(L*W*H) | |||||||
Weight | About 7T | |||||||
Edge-Line Embossing | Steel to steel (Pneumatic Control) | |||||||
Full Embossment | Steel to rubber | |||||||

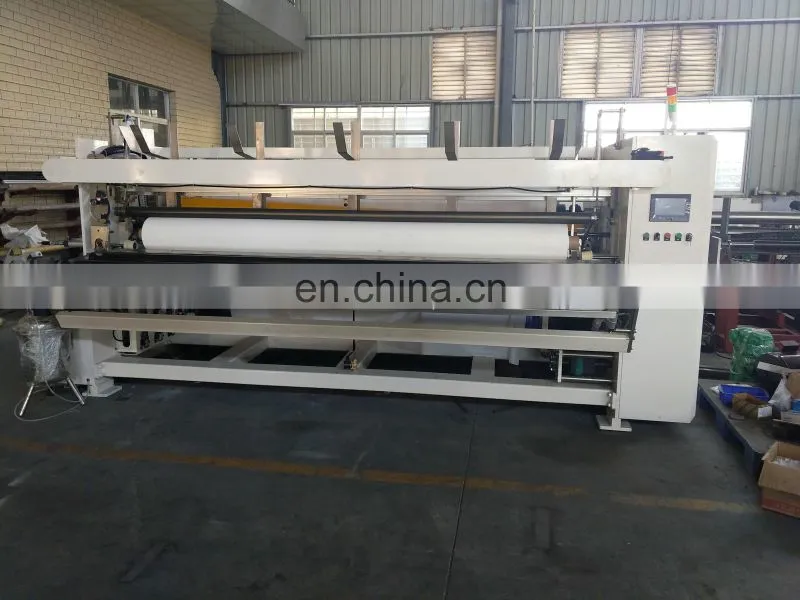

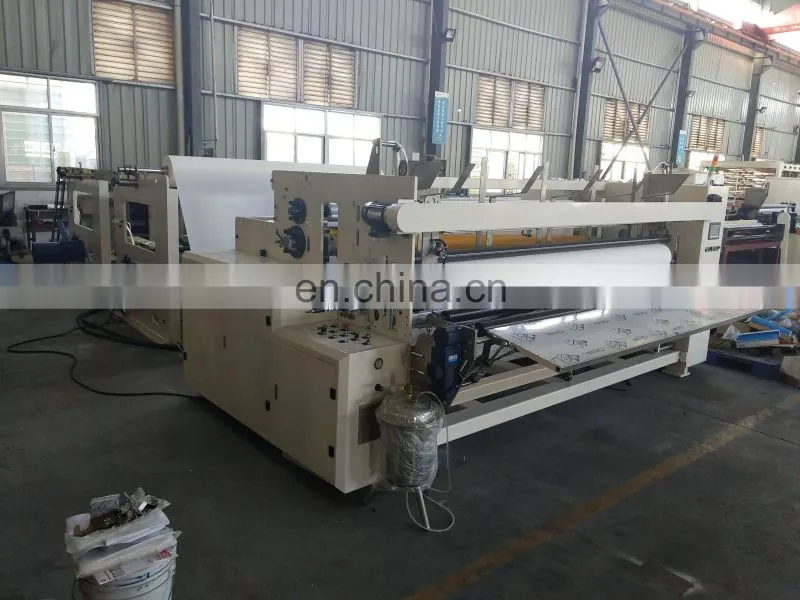

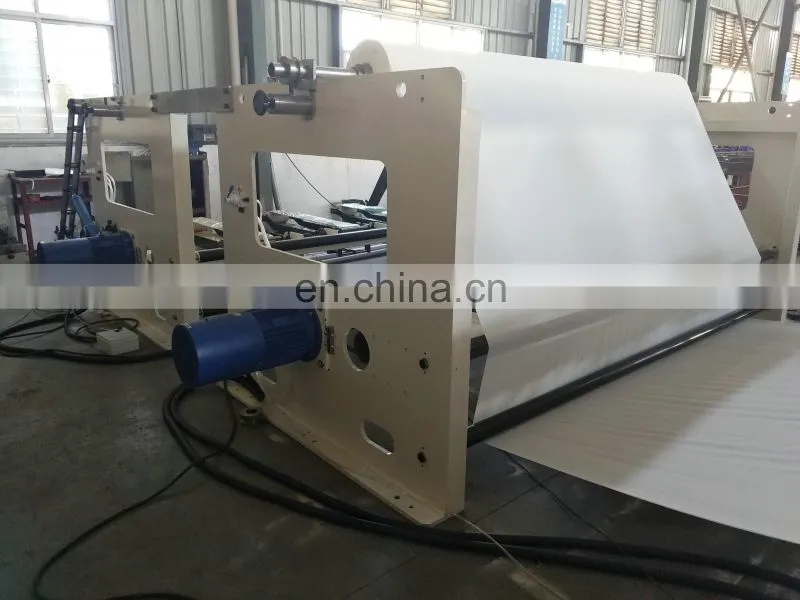

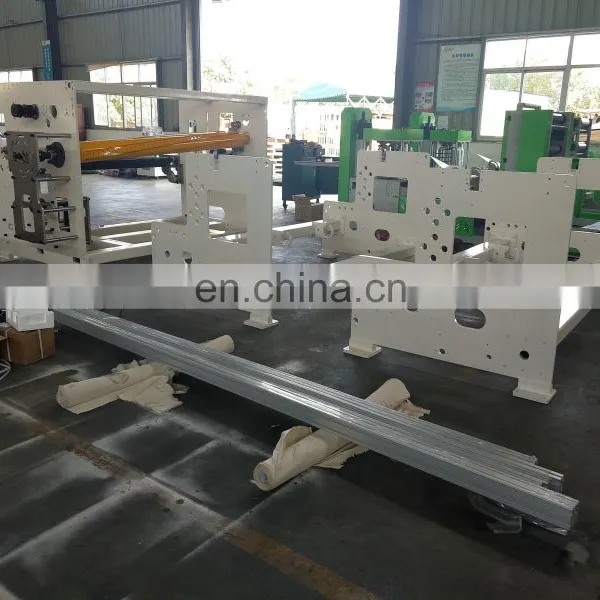

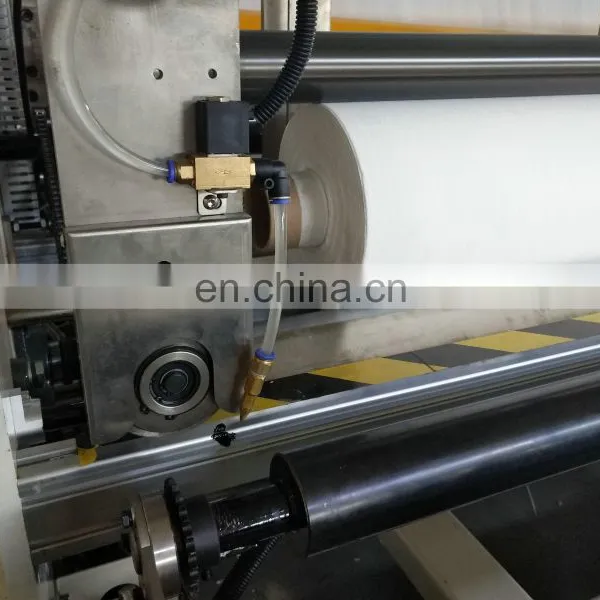

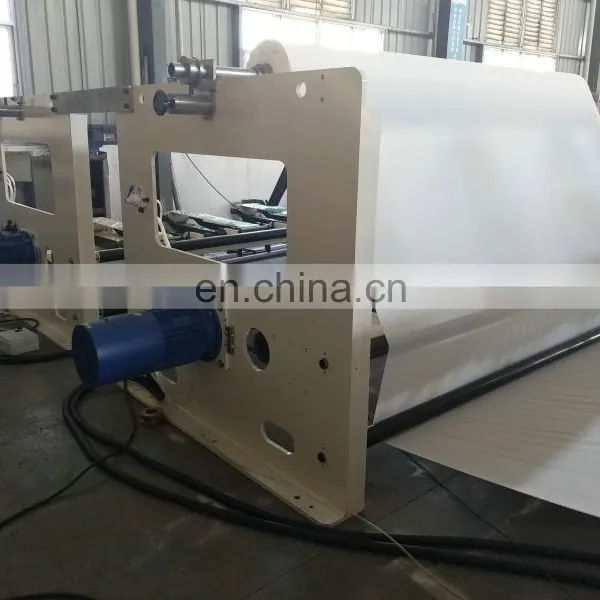

Details Images
Related Products
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
